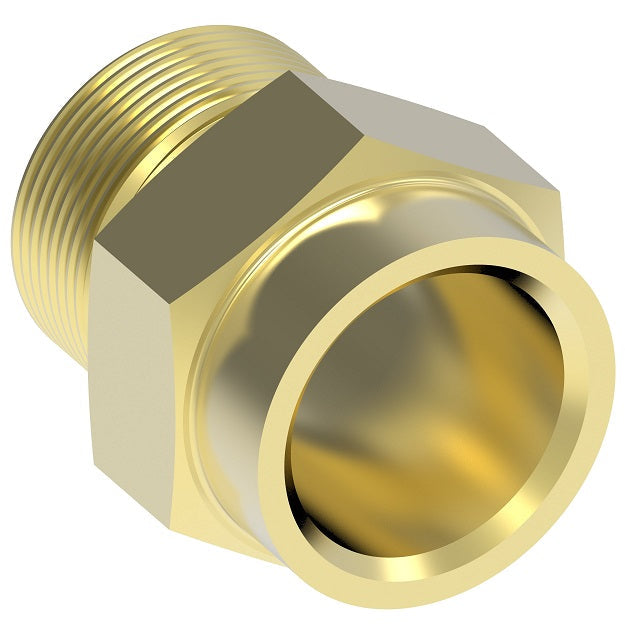

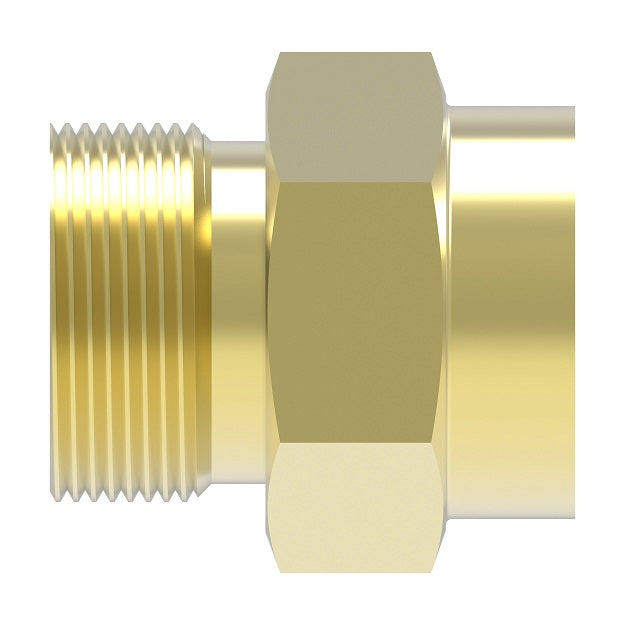

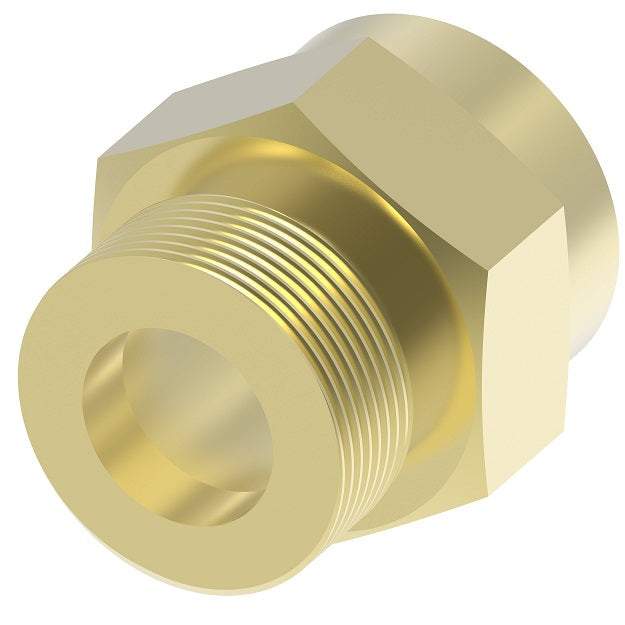

202208-6-8B Aeroquip by Danfoss | Braze Adapter | -06 Male 5400 Series Thread x -08 Braze | Brass
Aeroquip® by Danfoss
Braze Adapter
Male 5400 Series Thread x Braze
Straight
For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.
O-Ring Required.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.24 |
| 40–79 | $14.69 |
| 80+ | $12.96 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Seal Material(s):
| Brass Part number |
Steel Part number |
Body Size | Thread | Tube OD Size | Required O-Ring Part number |
|---|---|---|---|---|---|
| 202208-4-4B | - | 1/4" | 1/2-20 | 1/4" | 22546-12 |
| 202208-4-8B | - | 1/2" | 7/8-20 | 1/4" | 22546-17 |
| 202208-5-4B | - | - | - | - | - |
| 202208-6-4B | - | 1/4" | 1/2-20 | 3/8" | 22546-12 |
| 202208-6-8B | - | 1/2" | 7/8-20 | 3/8" | 22546-17 |
| 202208-8-8B | - | 1/2" | 7/8-20 | 1/2" | 22546-17 |
| 202208-10-8B | 202208-10-8S | 1/2" | 7/8-20 | 5/8" | 22546-17 |
| 202208-10-12B | 202208-10-12S | 3/4" | 1-1/4-18 | 5/8" | 22546-23 |
| 202208-12-12B | - | 3/4" | 1-1/4-18 | 3/4" | 22546-23 |
| 202208-14-12B | - | 3/4" | 1-1/4-18 | 7/8" | 22546-23 |
| 202208-14-16B | - | 1" | 1-19/32-20 | 7/8" | 22546-28 |
| 202208-16-16B | - | 1" | 1-19/32-20 | 1" | 22546-28 |
| 202208-18-16B | - | 1" | 1-19/32-20 | 1-1/8" | 22546-28 |
| 202208-22-16B | - | 1" | 1-19/32-20 | 1-1/4" | 22546-28 |
