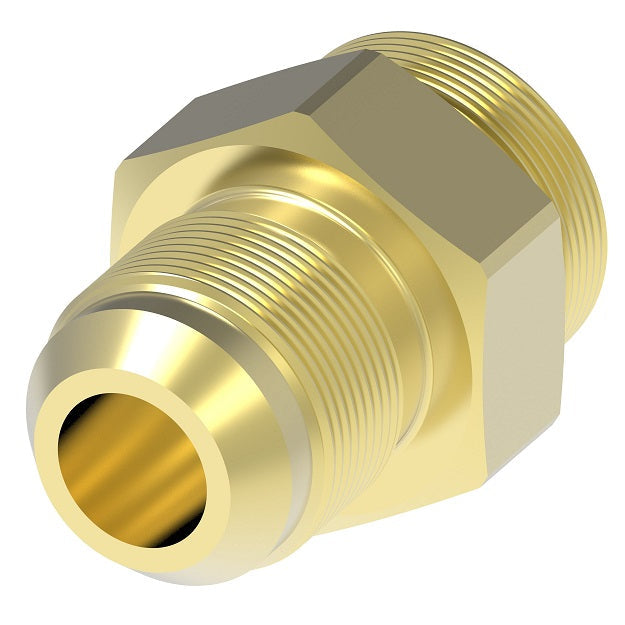

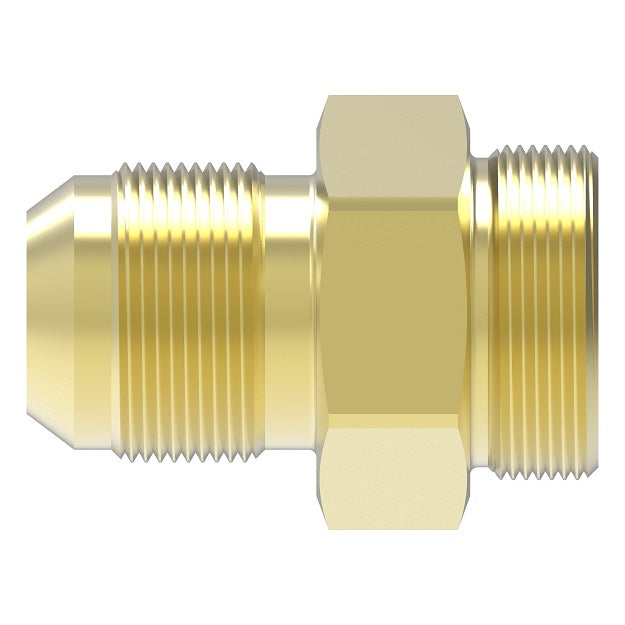

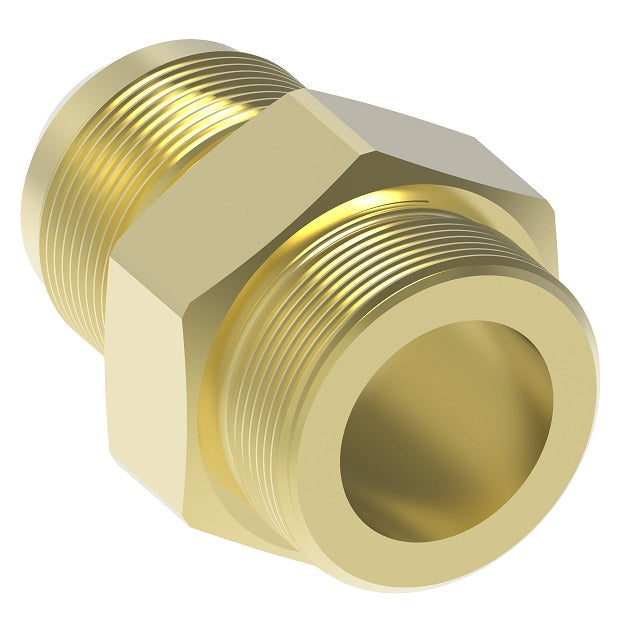

202220-4-4B Aeroquip by Danfoss | Straight Adapter | -04 Male JIC x -04 Male 5400 Series Thread | Brass
202220-4-4B Aeroquip by Danfoss | Straight Adapter | -04 Male JIC x -04 Male 5400 Series Thread | Brass
202220-4-4B Aeroquip by Danfoss | Straight Adapter | -04 Male JIC x -04 Male 5400 Series Thread | Brass

202220-4-4B Aeroquip by Danfoss | Straight Adapter | -04 Male JIC x -04 Male 5400 Series Thread | Brass

Sale price$34.36

Aeroquip® by Danfoss
JIC Adapter
Male JIC x Male 5400 Series Thread
Straight

For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
10–39 $32.30
40–79 $29.21
80+ $25.77
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male JIC
  • 1/4in Male 5400
Material(s):
  • Brass
Brass
Part number		 Steel
Part number		 Body Size Thread Tube OD Size
202220-4-4B 202220-4-4S 1/4" 7/16-20 1/4"
- 202220-6-4S 1/4" 9/16-18 3/8"
- 202220-6-8S 1/2" 9/16-18 3/8"
202220-8-8B 202220-8-8S 1/2" 3/4-16 1/2"
- 202220-10-12S 3/4" 7/8-14 5/8"
- 202220-12-12S 3/4" 1-1/16-12 3/4"
- 202220-16-16S 3/4" 1-3/16-12 1"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
