4SH09-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

4SH09-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Sale price$43.91

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - JIC 37° - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $41.28
40–79 $37.32
80+ $32.93
Discounts applied in cart/checkout.
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

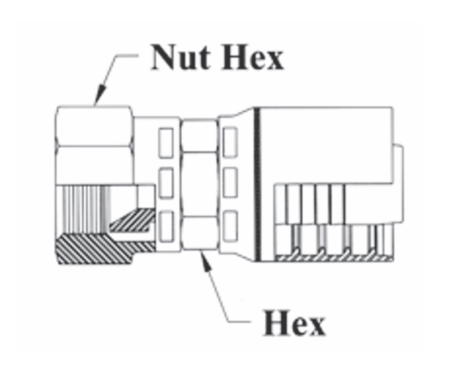

    Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
    Parker 73
    4SH09-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 2" 10673-20-20
    4SH09-20x24 1-1/4" 1-1/2" 1-7/8x12 1-7/8" 2-1/4" -
    4SH09-24x24 1-1/2" 1-1/2" 1-7/8x12 2" 2-1/4" 10673-24-24
    4SH09-32x32 2" 2" 2-1/2x12 2-1/2" 2-7/8" 10673-32-32

    Product Data:

    Series:
    • 4SH Series
    Shape:

    Straight

    Ends Configuration:
    • 1-1/4in Female JIC
    • 1-1/4in Hose Barb

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
