4SH09-32x32 by Couplamatic | Grip Crimp 4SH Series Coupling | 2" Hose ID x 2-1/2x12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
4SH Series — Extreme Pressure No-Skive

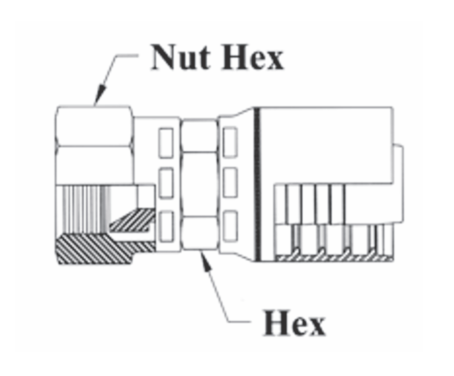

4SH09 Grip Crimp 4SH Series Coupling — JIC 37°, Female Swivel, Straight
4SH09 is the JIC 37°, Female Swivel, Straight configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.
1
What are the main product features?
- The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
- Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
- Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2
Which sizes are available?
| Part Number | Hose ID | Tube Size | Thread Size | Hex Size | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Parker 73 | ||||||
| 4SH09-20x20 | 1-1/4" | 1-1/4" | 1-5/8x12 | 1-11/16" | 2" | 10673-20-20 |
| 4SH09-20x24 | 1-1/4" | 1-1/2" | 1-7/8x12 | 1-7/8" | 2-1/4" | — |
| 4SH09-24x24 | 1-1/2" | 1-1/2" | 1-7/8x12 | 2" | 2-1/4" | 10673-24-24 |
| 4SH09-32x32 | 2" | 2" | 2-1/2x12 | 2-1/2" | 2-7/8" | 10673-32-32 |
