4SH Series — Extreme Pressure No-Skive
4SH09 Grip Crimp 4SH Series Coupling — JIC 37°, Female Swivel, Straight
4SH09 is the JIC 37°, Female Swivel, Straight configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.
1
What are the main product features?
- The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
- Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
- Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2
Which sizes are available?

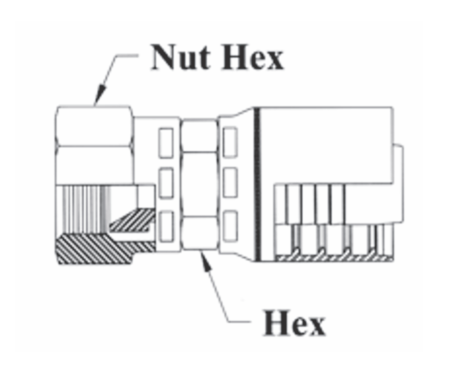

| Part Number | Hose ID | Tube Size | Thread Size | Hex Size | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Parker 73 | ||||||
| 4SH09-20x20 | 1-1/4" | 1-1/4" | 1-5/8x12 | 1-11/16" | 2" | 10673-20-20 |
| 4SH09-20x24 | 1-1/4" | 1-1/2" | 1-7/8x12 | 1-7/8" | 2-1/4" | — |
| 4SH09-24x24 | 1-1/2" | 1-1/2" | 1-7/8x12 | 2" | 2-1/4" | 10673-24-24 |
| 4SH09-32x32 | 2" | 2" | 2-1/2x12 | 2-1/2" | 2-7/8" | 10673-32-32 |
