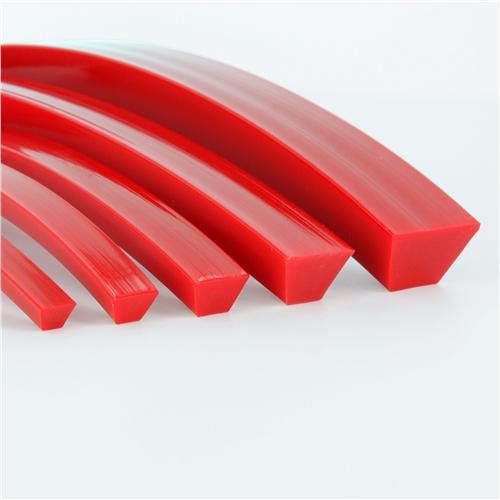

4999306 by Fenner Drives | Eagle 90 V Belting | Cross Section C/22 | 7/8" w x 9/16" h | Non-Reinforced | Red | 100ft
Fenner Drives

4999306 by Fenner Drives | Eagle 90 V Belting | Cross Section C/22 | 7/8" w x 9/16" h | Non-Reinforced | Red | 100ft

Sale price$1,728.04
Fenner Drives - Conveying - V Belting - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 90 Series
Overview:
  • Eagle Red 90 Non-Reinforced Vee Belting is constructed of solid polyurethane with a 90 Shore A durometer that provides extremely high abrasion resistance. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Red 90 Non-Reinforced Vee Belts offer the hardest durometer and best abrasion resistance of any Fenner Drives Eagle polyurethane belts. The solid 90A durometer gives you the strength and durability your conveying application needs. If you have a heavy load carrying problem-we have a simple solution! Eagle Red 90 Non-Reinforced Vee will not disappoint!

    Best Suited For: Medium to heavy duty conveying applications that require the best abrasion resistance you can get in a polyurethane vee belt profile.

  • 90 Shore A durometer polyurethane belting
  • Solid polyurethane construction
  • Superior abrasion resistance
  • REACH and RoHS 2002/95/EC Directive compliant


  • Eagle Red 90 Non-Reinforced Vee belt is the dependable choice for your toughest material transfer applications. Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.


  • Eagle Red 90 Non-Reinforced Vee Belts are easily welded on-site with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Vee Profile Size: 8mm x 5mm, A/13, B/17, C/22, Z/107
Reinforcement: None Color: Red
Compliancy: REACH, RoHS Durometer: 90A
Material: Polyurethane, Polyurethane Top Surface Package Length: 100'/30.5m


Part Number Material & Color Cross Section Dimensions w x h* Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
1032072 Eagle Orange 85 C/22 29/32 x 17/32" 23 x 13.5mm 4.25" 108mm 12.2 54.1 20.6 91.7 28.9 128.6 36.6 163 0.201 lbs 0.3 kg
4912072 Eagle Clear 85 C/22 29/32 x 17/32" 23 x 13.5mm 4.25" 108mm 12.5 55.5 21.1 94 29.6 131.8 37.5 167 0.201 lbs 0.3 kg
L04I85C Eagle Ivory 85 C/22 7/8 x 9/16" 22 x 14.5mm 4.57" 116mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.194 lbs 0.289 kg
L04G89C Eagle Green 89 C/22 7/8 x 9/16" 22 x 14.5mm 5.14" 131mm 60.8 270.3 92.8 412.9 121.5 540.5 146.5 651.9 0.197 lbs 0.293 kg
4999306 Eagle Red 90 C/22 7/8 x 9/16" 22 x 14.5mm 5.75" 145mm 81.1 360.8 116.8 519.7 147.1 654.1 172.1 765.4 0.197 lbs 0.293 kg
L04BE95C Eagle Beige 95 C/22 7/8 x 9/16" 22 x 14.5mm 5.7" 145mm 49.9 222.2 74.6 332 96.4 428.9 115.5 513.6 0.204 lbs 0.303 kg
4911072 Eagle Clear 95 C/22 29/32 x 17/32" 23 x 13.5mm 5.31" 135mm 22.9 102 37.4 166.2 50.3 223.7 61.3 272.7 0.206 lbs 0.307 kg
L04BY40C Eagle White 40D C/22 7/8 x 9/16" 22 x 14.5mm 6.85" 174mm 46.8 208 79.9 355.4 110.2 490 136.1 605.6 0.194 lbs 0.288 kg
1032054 Eagle Orange 85 C/22 Ribbed 29/32 x 17/32" --- 4.25" 108mm 11.3 50.3 19.2 85.3 26.9 119.7 34.1 151.7 0.187 lbs 0.279 kg
4999514 Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 8.68" 221mm 85.6 380.7 130.7 581.4 171.1 761.2 206.4 917.9 0.278 lbs 0.413 kg
493050030M Eagle Ivory 85 SGT PU C/22 0.88 x 0.72" 22 x 18.56mm 5.28" 134mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.227 lbs 0.338 kg
493140030M Eagle Ivory 85 SGT TPE C/22 0.88 x 0.73" 22 x 18.84mm 5.28" 134mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.045 lbs 0.334 kg
L04G89CSG Eagle Green 89 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 5.94" 151mm 60.8 270.3 92.8 412.9 121.5 540.5 146.5 651.9 0.248 lbs 0.37 kg
L04R90CSG Eagle Red 90 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 5.94" 151mm 81.1 360.8 116.8 519.7 147.1 654.1 172.1 765.4 0.248 lbs 0.369 kg
L04BY40CSG Eagle White 40D SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 8.59" 218mm 46.8 208 79.9 355.4 110.2 490 136.1 605.6 0.24 lbs 0.358 kg


* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
