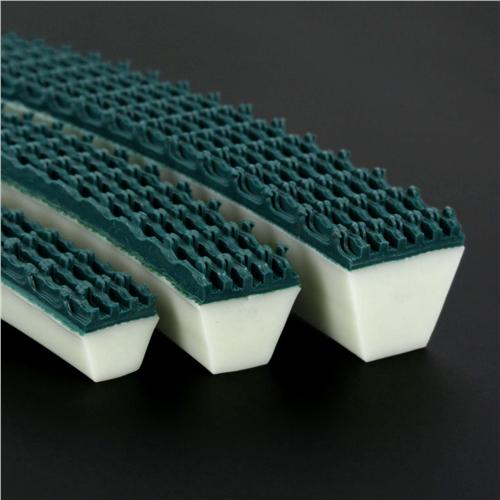

L04BY40CSG by Fenner Drives | Eagle 40D SGT PVC V Belting | Cross Section C/22 | 0.88" w x 0.78" h | Non-Reinforced | White | 100ft
Fenner Drives

L04BY40CSG by Fenner Drives | Eagle 40D SGT PVC V Belting | Cross Section C/22 | 0.88" w x 0.78" h | Non-Reinforced | White | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Eagle White 40D Non-Reinforced SGT PVC Belting is constructed of a 40D durometer polyurethane base belt and an extremely pliable SGT (SuperGrip Top) PVC top surface. Packaged 100'/30.5m lengths.
Description:
  • Look no further! We have the grip you are seeking! Fenner Drives Eagle White 40D Non-Reinforced SGT PVC Vee Belts are your answer. Our PVC 50A SuperGrip Top surface is soft and tacky enough that it won't damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely pliable pattern.

    Best Suited For: Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface. Perfect for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance

    Look no further! We have the grip you are seeking! Fenner Drives Eagle Red 90 Non-Reinforced SGT PVC Vee Belts are your answer. Our PVC 50A SuperGrip Top surface is soft and tacky enough that it won't damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely compliant pattern.

  • 40D polyurethane base durometer
  • Integrally bonded tops cannot delaminate
  • 50A PVC top surface
  • RoHS 2002/95/EC Directive Compliant


  • Eagle White 40D Non-Reinforced SGT PVC Vee Belts are ideally suited for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.


  • Fenner Drives Eagle White 40D Non-Reinforced SGT PVC Vee Belts are easily welded endless on site with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, C/22
Reinforcement: None Color: Green, White
Compliancy: RoHS Durometer: 40D, 50A
Material: Polyurethane, PVC Top Surface Special Feature: PVC Grip Top Surface
Package Length: 100'/30.5m


Part Number Material & Color Cross Section Dimensions w x h* Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
1032072 Eagle Orange 85 C/22 29/32 x 17/32" 23 x 13.5mm 4.25" 108mm 12.2 54.1 20.6 91.7 28.9 128.6 36.6 163 0.201 lbs 0.3 kg
4912072 Eagle Clear 85 C/22 29/32 x 17/32" 23 x 13.5mm 4.25" 108mm 12.5 55.5 21.1 94 29.6 131.8 37.5 167 0.201 lbs 0.3 kg
L04I85C Eagle Ivory 85 C/22 7/8 x 9/16" 22 x 14.5mm 4.57" 116mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.194 lbs 0.289 kg
L04G89C Eagle Green 89 C/22 7/8 x 9/16" 22 x 14.5mm 5.14" 131mm 60.8 270.3 92.8 412.9 121.5 540.5 146.5 651.9 0.197 lbs 0.293 kg
4999306 Eagle Red 90 C/22 7/8 x 9/16" 22 x 14.5mm 5.75" 145mm 81.1 360.8 116.8 519.7 147.1 654.1 172.1 765.4 0.197 lbs 0.293 kg
L04BE95C Eagle Beige 95 C/22 7/8 x 9/16" 22 x 14.5mm 5.7" 145mm 49.9 222.2 74.6 332 96.4 428.9 115.5 513.6 0.204 lbs 0.303 kg
4911072 Eagle Clear 95 C/22 29/32 x 17/32" 23 x 13.5mm 5.31" 135mm 22.9 102 37.4 166.2 50.3 223.7 61.3 272.7 0.206 lbs 0.307 kg
L04BY40C Eagle White 40D C/22 7/8 x 9/16" 22 x 14.5mm 6.85" 174mm 46.8 208 79.9 355.4 110.2 490 136.1 605.6 0.194 lbs 0.288 kg
1032054 Eagle Orange 85 C/22 Ribbed 29/32 x 17/32" --- 4.25" 108mm 11.3 50.3 19.2 85.3 26.9 119.7 34.1 151.7 0.187 lbs 0.279 kg
4999514 Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 8.68" 221mm 85.6 380.7 130.7 581.4 171.1 761.2 206.4 917.9 0.278 lbs 0.413 kg
493050030M Eagle Ivory 85 SGT PU C/22 0.88 x 0.72" 22 x 18.56mm 5.28" 134mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.227 lbs 0.338 kg
493140030M Eagle Ivory 85 SGT TPE C/22 0.88 x 0.73" 22 x 18.84mm 5.28" 134mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.045 lbs 0.334 kg
L04G89CSG Eagle Green 89 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 5.94" 151mm 60.8 270.3 92.8 412.9 121.5 540.5 146.5 651.9 0.248 lbs 0.37 kg
L04R90CSG Eagle Red 90 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 5.94" 151mm 81.1 360.8 116.8 519.7 147.1 654.1 172.1 765.4 0.248 lbs 0.369 kg
L04BY40CSG Eagle White 40D SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 8.59" 218mm 46.8 208 79.9 355.4 110.2 490 136.1 605.6 0.24 lbs 0.358 kg


* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
