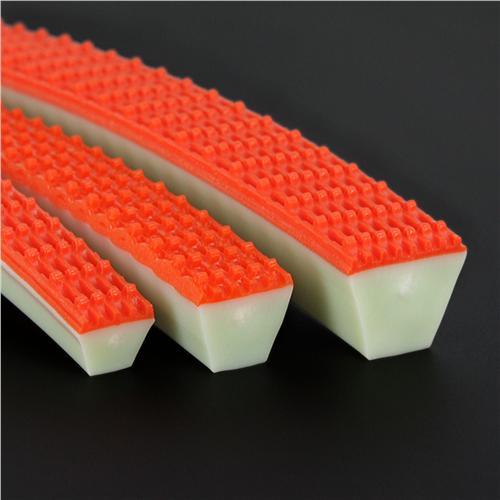

493050030M by Fenner Drives | Eagle 85 SGT PU V Belting | Cross Section C/22 | 0.88" w x 0.72" h | Non-Reinforced | Ivory | 100ft
Fenner Drives

493050030M by Fenner Drives | Eagle 85 SGT PU V Belting | Cross Section C/22 | 0.88" w x 0.72" h | Non-Reinforced | Ivory | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Eagle Ivory 85 Reinforced SGT PU is constructed of a polyester cord reinforced 85 A durometer polyurethane base belt made and a high-grip, low-wear SGT (SuperGrip Top) polyurethane top surface. Packaged in 100'/30.5m lengths.
Description:
  • Look no further! We have the grip you are seeking! Fenner Drives Eagle 85 Reinforced SGT PU Vee belts are the toughest and most durable SuperGrip Top in our product line. Harder and less pliable than our other offering, this relatively soft polyurethane compound provides superior traction for tough applications. This belt combines a 70A polyurethane SuperGrip Top surface for superior abrasion resistance with a durable 85A base durometer and a polyester reinforcing tensile member for maximum strength!

    Best Suited For: Conveying applications that require a strong, low stretch vee belt combined with a super grip surface. Perfect for conveying in the most abrasive environments such as moving concrete blocks, bricks, and tiles of all types.

  • 70A polyurethane SuperGrip Top for superior abrasion resistance
  • 85A polyurethane base durometer
  • Integrally bonded tops cannot delaminate
  • Polyester reinforcing tensile member
  • RoHS 2002/95/EC Directive Compliant


  • Eagle Ivory 85 Reinforced SGT PU Belting wears up to 3x longer than our PVC SuperGrip Top and is ideal for inclines and declines in the ceramic and roof tile sectors!


  • Eagle Ivory 85 Reinforced SGT PU Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.


  • Since Eagle Ivory 85 Reinforced SGT PU Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.


SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, C/22
Reinforcement: Single Polyester Cord Color: Ivory, Orange
Compliancy: RoHS Durometer: 70A, 85A
Material: Polyurethane, Polyurethane Top Surface Special Feature: Polyurethane Gip Top Surface
Package Length: 100'/30.5m


Part Number Material & Color Cross Section Dimensions w x h* Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
1032072 Eagle Orange 85 C/22 29/32 x 17/32" 23 x 13.5mm 4.25" 108mm 12.2 54.1 20.6 91.7 28.9 128.6 36.6 163 0.201 lbs 0.3 kg
4912072 Eagle Clear 85 C/22 29/32 x 17/32" 23 x 13.5mm 4.25" 108mm 12.5 55.5 21.1 94 29.6 131.8 37.5 167 0.201 lbs 0.3 kg
L04I85C Eagle Ivory 85 C/22 7/8 x 9/16" 22 x 14.5mm 4.57" 116mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.194 lbs 0.289 kg
L04G89C Eagle Green 89 C/22 7/8 x 9/16" 22 x 14.5mm 5.14" 131mm 60.8 270.3 92.8 412.9 121.5 540.5 146.5 651.9 0.197 lbs 0.293 kg
4999306 Eagle Red 90 C/22 7/8 x 9/16" 22 x 14.5mm 5.75" 145mm 81.1 360.8 116.8 519.7 147.1 654.1 172.1 765.4 0.197 lbs 0.293 kg
L04BE95C Eagle Beige 95 C/22 7/8 x 9/16" 22 x 14.5mm 5.7" 145mm 49.9 222.2 74.6 332 96.4 428.9 115.5 513.6 0.204 lbs 0.303 kg
4911072 Eagle Clear 95 C/22 29/32 x 17/32" 23 x 13.5mm 5.31" 135mm 22.9 102 37.4 166.2 50.3 223.7 61.3 272.7 0.206 lbs 0.307 kg
L04BY40C Eagle White 40D C/22 7/8 x 9/16" 22 x 14.5mm 6.85" 174mm 46.8 208 79.9 355.4 110.2 490 136.1 605.6 0.194 lbs 0.288 kg
1032054 Eagle Orange 85 C/22 Ribbed 29/32 x 17/32" --- 4.25" 108mm 11.3 50.3 19.2 85.3 26.9 119.7 34.1 151.7 0.187 lbs 0.279 kg
4999514 Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 8.68" 221mm 85.6 380.7 130.7 581.4 171.1 761.2 206.4 917.9 0.278 lbs 0.413 kg
493050030M Eagle Ivory 85 SGT PU C/22 0.88 x 0.72" 22 x 18.56mm 5.28" 134mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.227 lbs 0.338 kg
493140030M Eagle Ivory 85 SGT TPE C/22 0.88 x 0.73" 22 x 18.84mm 5.28" 134mm 33.9 150.6 51.7 229.8 67.8 301.7 82.1 365.4 0.045 lbs 0.334 kg
L04G89CSG Eagle Green 89 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 5.94" 151mm 60.8 270.3 92.8 412.9 121.5 540.5 146.5 651.9 0.248 lbs 0.37 kg
L04R90CSG Eagle Red 90 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 5.94" 151mm 81.1 360.8 116.8 519.7 147.1 654.1 172.1 765.4 0.248 lbs 0.369 kg
L04BY40CSG Eagle White 40D SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 8.59" 218mm 46.8 208 79.9 355.4 110.2 490 136.1 605.6 0.24 lbs 0.358 kg


* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
