4940091 by Fenner Drives | Eagle 89 Textured Round Belting | 18mm Diameter | Non-Reinforced | Green | 100ft

4940091 by Fenner Drives | Eagle 89 Textured Round Belting | 18mm Diameter | Non-Reinforced | Green | 100ft

Sale price$1,670.49
Quantity Price Each
8–14 $1,536.85
15+ $1,419.92
Discounts applied at checkout.
Fenner Drives - Conveying - Round Belting - 18mm, 20mm, 3/4" Round - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 89 Series
Overview:

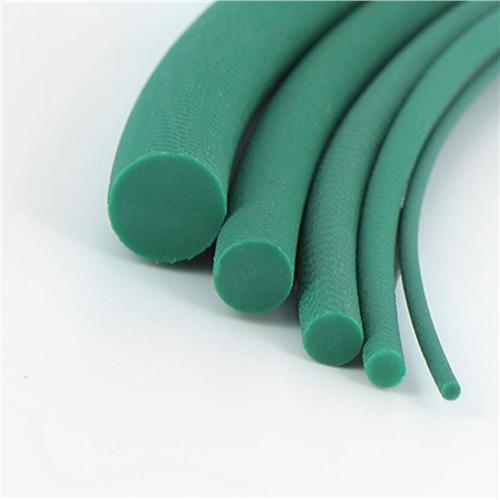

  • Eagle Green 89 Non-Reinforced Textured Round Belting constructed of polyurethane with an 89 Shore A durometer that provides excellent abrasion resistance. A key feature of this belt is its textured surface, which lowers its surface coefficient of friction. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Green 89 Non-Reinforced Textured Round Belts' harder durometer and textured surface combine to lower the CoF of this belt. Eagle Green 89 Non-Reinforced Textured Round belts also have superior heat and water resistant properties making it an ideal choice for an application that requires frequent wash-downs.

    Best Suited For: Long conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications, where a lower surface CoF (coefficient of ") is desirable in a round belt profile.

  • 89 shore A durometer
  • Textured surface for lower surface CoF
  • Superior heat and water resistance
  • No take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Green 89 Non-Reinforced Textured Round Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 12mm, 15mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
Reinforcement: None Color: Green
Compliancy: REACH, RoHS Durometer: 89A
Material: Polyurethane Special Feature: Textured
Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04G8918MS Eagle® Green 89 --- 18mm 6.38" 162mm 25.9 115.2 42.5 189.2 58.4 259.9 73 324.6 0.203 lbs 0.303 kg
4940091 Eagle Green 89 Textured --- 18mm 6.38" 162mm 18.8 83.7 30.9 137.5 42.4 188.8 53 235.9 0.203 lbs 0.303 kg
1032024 Eagle Orange 85 3/4" --- 6" 152mm 17.5 77.7 26.9 119.6 35.9 159.6 44.2 196.6 0.23 lbs 0.342 kg
4908033 Eagle Clear 85 3/4" --- 6" 152mm 17.5 77.7 26.9 119.6 35.9 159.6 44.2 196.6 0.23 lbs 0.342 kg
4907033 Eagle Clear 95 3/4" --- 7.5" 191mm 32.7 145.3 48.5 215.7 62.3 277 74 329.4 0.236 lbs 0.351 kg

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
