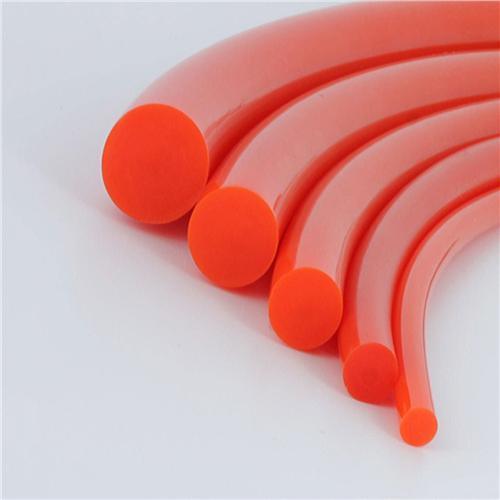

1032024 Fenner Drives Eagle Orange 85 Round Belting - 3/4" Diameter - Non-Reinforced - 100ft - Beltsmart

1032024 by Fenner Drives | Eagle 85 Round Belting | 3/4" Diameter | Non-Reinforced | Orange | 100ft

Sale price$1,364.76
Fenner Drives - Conveying - Round Belting - 18mm, 20mm, 3/4" Round - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,282.87
8–14 $1,228.28
15+ $1,091.81
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Orange 85 Non-Reinforced Round Belting is constructed of solid polyurethane with an 85 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • The Original Orange belt! Eagle Orange 85 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 85 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a Round belt.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 85 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 10mm, 12mm, 13mm, 2mm, 3/16", 3/32", 3/4", 3/8", 3mm, 4mm, 5/16", 5/8", 5mm, 6mm, 7mm, 8mm, 9/16"
Reinforcement: None Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04G8918MS Eagle® Green 89 --- 18mm 6.38" 162mm 25.9 115.2 42.5 189.2 58.4 259.9 73 324.6 0.203 lbs 0.303 kg
4940091 Eagle Green 89 Textured --- 18mm 6.38" 162mm 18.8 83.7 30.9 137.5 42.4 188.8 53 235.9 0.203 lbs 0.303 kg
1032024 Eagle Orange 85 3/4" --- 6" 152mm 17.5 77.7 26.9 119.6 35.9 159.6 44.2 196.6 0.23 lbs 0.342 kg
4908033 Eagle Clear 85 3/4" --- 6" 152mm 17.5 77.7 26.9 119.6 35.9 159.6 44.2 196.6 0.23 lbs 0.342 kg
4907033 Eagle Clear 95 3/4" --- 7.5" 191mm 32.7 145.3 48.5 215.7 62.3 277 74 329.4 0.236 lbs 0.351 kg

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
