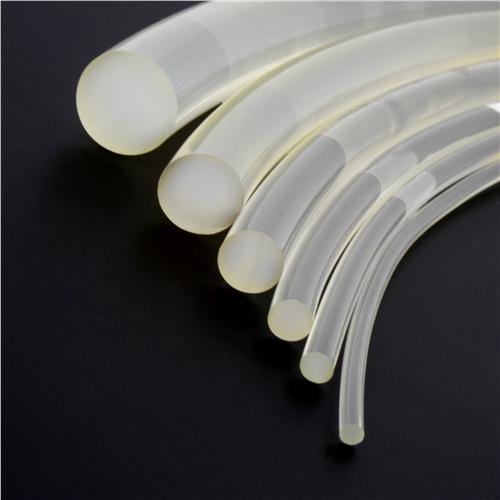

4907033 by Fenner Drives | Eagle 95 Round Belting | 3/4" Diameter | Non-Reinforced | Clear | 100ft
Fenner Drives

4907033 by Fenner Drives | Eagle 95 Round Belting | 3/4" Diameter | Non-Reinforced | Clear | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Eagle Clear 95 Non-Reinforced Round Belting is constructed of solid polyurethane with a 95 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Clear 95 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 95 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a round profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 95 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Clear 95 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Clear Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 12.5mm, 3/16", 3/32", 3/8", 5/16", 6.3mm, 9.5mm
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 95A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04G8918MS Eagle® Green 89 --- 18mm 6.38" 162mm 25.9 115.2 42.5 189.2 58.4 259.9 73 324.6 0.203 lbs 0.303 kg
4940091 Eagle Green 89 Textured --- 18mm 6.38" 162mm 18.8 83.7 30.9 137.5 42.4 188.8 53 235.9 0.203 lbs 0.303 kg
1032024 Eagle Orange 85 3/4" --- 6" 152mm 17.5 77.7 26.9 119.6 35.9 159.6 44.2 196.6 0.23 lbs 0.342 kg
4908033 Eagle Clear 85 3/4" --- 6" 152mm 17.5 77.7 26.9 119.6 35.9 159.6 44.2 196.6 0.23 lbs 0.342 kg
4907033 Eagle Clear 95 3/4" --- 7.5" 191mm 32.7 145.3 48.5 215.7 62.3 277 74 329.4 0.236 lbs 0.351 kg

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
