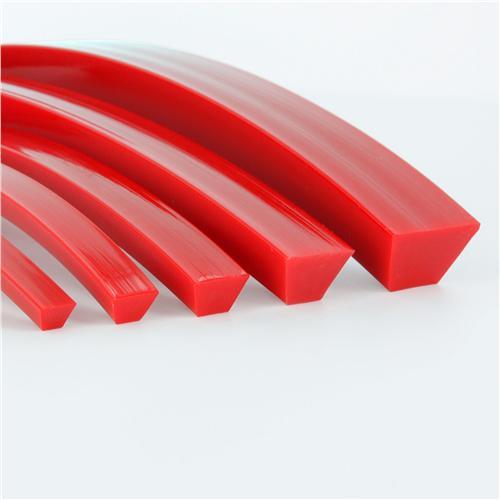

4940028 by Fenner Drives | Eagle 90 V Belt | Cross Section: Z/10 | 10mm w x 6.5mm h | Non-Reinforced | Red | 100ft

4940028 by Fenner Drives | Eagle 90 V Belt | Cross Section: Z/10 | 10mm w x 6.5mm h | Non-Reinforced | Red | 100ft

Sale price$354.42
Fenner Drives - Conveying - V Belting - Z/10, 3L Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $333.15
15–29 $301.26
30+ $265.82
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 90 Series
Overview:
  • Eagle Red 90 Non-Reinforced Vee Belting is constructed of solid polyurethane with a 90 Shore A durometer that provides extremely high abrasion resistance. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Red 90 Non-Reinforced Vee Belts offer the hardest durometer and best abrasion resistance of any Fenner Drives Eagle polyurethane belts. The solid 90A durometer gives you the strength and durability your conveying application needs. If you have a heavy load carrying problem-we have a simple solution! Eagle Red 90 Non-Reinforced Vee will not disappoint!

    Best Suited For: Medium to heavy duty conveying applications that require the best abrasion resistance you can get in a polyurethane vee belt profile.

  • 90 Shore A durometer polyurethane belting
  • Solid polyurethane construction
  • Superior abrasion resistance
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Red 90 Non-Reinforced Vee belt is the dependable choice for your toughest material transfer applications. Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Red 90 Non-Reinforced Vee Belts are easily welded on-site with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Vee Profile Size: 8mm x 5mm, A/13, B/17, C/22, Z/107
Reinforcement: None Color: Red
Compliancy: REACH, RoHS Durometer: 90A
Material: Polyurethane, Polyurethane Top Surface Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
1032030 Eagle Orange 85 3L 3/8" x 7/32" --- 1.75" 44mm 2.1 9.5 3.6 16.1 5.1 22.6 6.4 28.6 0.035 lbs 0.053 kg
4912063 Eagle Clear 85 3L 3/8" x 7/32" --- 1.75" 44mm 2.2 9.7 3.7 16.5 5.2 23.1 6.6 29.3 0.035 lbs 0.053 kg
L04BL853L Eagle Blue 85 3L 3/8" x 7/32" --- 1.75" 45mm 2.1 9.5 3.6 16.1 5.1 22.6 6.4 28.6 0.035 lbs 0.053 kg
4911063 Eagle Clear 95 3L 3/8" x 7/32" --- 2.19" 56mm 4 17.9 6.6 29.2 8.8 39.3 10.8 47.9 0.036 lbs 0.054 kg
1032032 Eagle Orange 85 3L Crown-Top 9/16" x 1/4" --- 2" 51mm 3 13.2 5 22.4 7.1 31.5 9 39.9 0.049 lbs 0.073 kg
1032031 Eagle Orange 85 3L T-Top 9/16" x 19/64" --- 2.38" 60mm 3.5 15.7 6 26.5 8.4 37.2 10.6 47.2 0.058 lbs 0.087 kg
4912064 Eagle Clear 85 3L T-Top 9/16" x 19/64" --- 2.38" 60mm 3.6 16.1 6.1 27.2 8.6 38.2 10.9 48.3 0.058 lbs 0.087 kg
1032033 Eagle Orange 85 3L Twin 15/16" x 17/64" --- 2.13" 54mm 5.9 26.2 10 44.5 14 62.4 17.8 79 0.098 lbs 0.145 kg
4912065 Eagle Clear 85 3L Twin 15/16" x 17/64" --- 2.13" 54mm 6 26.9 10.2 45.6 14.4 63.9 18.2 81 0.098 lbs 0.145 kg
4911065 Eagle Clear 95 3L Twin 15/16" x 17/64" --- 2.5" 64mm 11.1 49.5 18.1 80.6 24.4 108.5 29.7 132.2 0.1 lbs 0.149 kg
4940008 Eagle Opaque 80 Z/10 --- 10 x 6.5mm 1.79" 46mm 2.5 11.3 5.2 23.3 8.3 36.8 11.1 49.5 0.041 lbs 0.062 kg
4940114 Eagle Orange 85 Z/10 --- 10 x 6.5mm 1.88" 52mm 2.5 10.9 4.2 18.5 5.8 26 7.4 32.9 0.041 lbs 0.061 kg
4940118 Eagle Clear 85 Z/10 --- 10 x 6.5mm 2.05" 52mm 2.5 11.2 4.3 19 6 26.6 7.6 33.7 0.041 lbs 0.061 kg
4940118 Eagle Ivory 85 Z/10 --- 10 x 6.5mm 2.05" 52mm 6.9 30.8 10.6 47 13.9 61.7 16.8 74.8 0.04 lbs 0.06 kg
L04BL85Z Eagle Blue 85 Z/10 --- 10 x 6.5mm 1.88" 52mm 2.5 10.8 4.2 18.3 5.8 25.6 7.4 32.5 0.041 lbs 0.061 kg
L04G89Z Eagle Green 89 Z/10 --- 10 x 6.5mm 2.3" 59mm 12.4 55.3 19 84.5 24.9 110.6 30 133.4 0.04 lbs 0.06 kg
4940028 Eagle Clear 85 Z/10 --- 10 x 6.5mm 2.5" 65mm 16.9 75.2 24.3 108.3 30.6 136.3 35.9 159.5 0.041 lbs 0.061 kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
