1032030 Fenner Drives Eagle Orange 85 V Belt - Cross Section: 3L - 3/8" w x 7/32" h - Non-Reinforced - 100ft - Beltsmart
Fenner Drives

1032030 by Fenner Drives | Eagle 85 V Belt | Cross Section: 3L | 3/8" w x 7/32" h | Non-Reinforced | Orange | 100ft

Sale price$335.95
Fenner Drives - Conveying - V Belting - Z/10, 3L Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

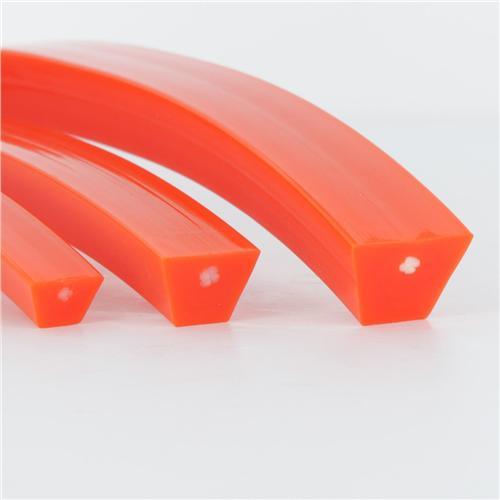

  • Eagle Orange 85 Reinforced Vee Belting is constructed of polyurethane with an 85 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. Packaged in 100'/30.5m length.
Description:
  • Eagle Orange 85 Reinforced Vee Belts embody no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes heavier loads possible to convey. Eagle Orange 85 Reinforced Vee Belts can also double as an option for your medium-duty power transmission applications.

    Best Suited For: An all-purpose, highly versatile polyester reinforced polyurethane belt for virtually any medium to heavy duty conveying application or medium duty power transmission application, requiring a Vee belt profile.

    Independently certified to meet the requirements of European Regulation 10/2011 (and the legislation which it replaces; Commission Directive 2002/72/EC) within the framework defined by the Regulation 1935/2004/EC (27/10/2004) relating to plastic materials and articles intended to come into direct contact with foodstuffs.

    When used in a range of "typical" process environments, Eagle EC belting will not allow components to migrate into food in quantities that could endanger human health, change the composition of the food in an unacceptable way or deteriorate the taste and smell of foodstuffs.

  • Independently tested and verified to meet FDA standards for direct food contact
  • 85 shore A durometer
  • polyurethane belting
  • Polyester reinforcing tensile cord
  • Low stretch, High strength
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Reinforced Vee Belts are the proven workhorses for material transfer and medium-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Reinforced Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Orange 85 Reinforced Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, Z/10
Reinforcement: Single Polyester Cord Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
1032030 Eagle Orange 85 3L 3/8" x 7/32" --- 1.75" 44mm 2.1 9.5 3.6 16.1 5.1 22.6 6.4 28.6 0.035 lbs 0.053 kg
4912063 Eagle Clear 85 3L 3/8" x 7/32" --- 1.75" 44mm 2.2 9.7 3.7 16.5 5.2 23.1 6.6 29.3 0.035 lbs 0.053 kg
L04BL853L Eagle Blue 85 3L 3/8" x 7/32" --- 1.75" 45mm 2.1 9.5 3.6 16.1 5.1 22.6 6.4 28.6 0.035 lbs 0.053 kg
4911063 Eagle Clear 95 3L 3/8" x 7/32" --- 2.19" 56mm 4 17.9 6.6 29.2 8.8 39.3 10.8 47.9 0.036 lbs 0.054 kg
1032032 Eagle Orange 85 3L Crown-Top 9/16" x 1/4" --- 2" 51mm 3 13.2 5 22.4 7.1 31.5 9 39.9 0.049 lbs 0.073 kg
1032031 Eagle Orange 85 3L T-Top 9/16" x 19/64" --- 2.38" 60mm 3.5 15.7 6 26.5 8.4 37.2 10.6 47.2 0.058 lbs 0.087 kg
4912064 Eagle Clear 85 3L T-Top 9/16" x 19/64" --- 2.38" 60mm 3.6 16.1 6.1 27.2 8.6 38.2 10.9 48.3 0.058 lbs 0.087 kg
1032033 Eagle Orange 85 3L Twin 15/16" x 17/64" --- 2.13" 54mm 5.9 26.2 10 44.5 14 62.4 17.8 79 0.098 lbs 0.145 kg
4912065 Eagle Clear 85 3L Twin 15/16" x 17/64" --- 2.13" 54mm 6 26.9 10.2 45.6 14.4 63.9 18.2 81 0.098 lbs 0.145 kg
4911065 Eagle Clear 95 3L Twin 15/16" x 17/64" --- 2.5" 64mm 11.1 49.5 18.1 80.6 24.4 108.5 29.7 132.2 0.1 lbs 0.149 kg
4940008 Eagle Opaque 80 Z/10 --- 10 x 6.5mm 1.79" 46mm 2.5 11.3 5.2 23.3 8.3 36.8 11.1 49.5 0.041 lbs 0.062 kg
4940114 Eagle Orange 85 Z/10 --- 10 x 6.5mm 1.88" 52mm 2.5 10.9 4.2 18.5 5.8 26 7.4 32.9 0.041 lbs 0.061 kg
4940118 Eagle Clear 85 Z/10 --- 10 x 6.5mm 2.05" 52mm 2.5 11.2 4.3 19 6 26.6 7.6 33.7 0.041 lbs 0.061 kg
4940118 Eagle Ivory 85 Z/10 --- 10 x 6.5mm 2.05" 52mm 6.9 30.8 10.6 47 13.9 61.7 16.8 74.8 0.04 lbs 0.06 kg
L04BL85Z Eagle Blue 85 Z/10 --- 10 x 6.5mm 1.88" 52mm 2.5 10.8 4.2 18.3 5.8 25.6 7.4 32.5 0.041 lbs 0.061 kg
L04G89Z Eagle Green 89 Z/10 --- 10 x 6.5mm 2.3" 59mm 12.4 55.3 19 84.5 24.9 110.6 30 133.4 0.04 lbs 0.06 kg
4940028 Eagle Clear 85 Z/10 --- 10 x 6.5mm 2.5" 65mm 16.9 75.2 24.3 108.3 30.6 136.3 35.9 159.5 0.041 lbs 0.061 kg
