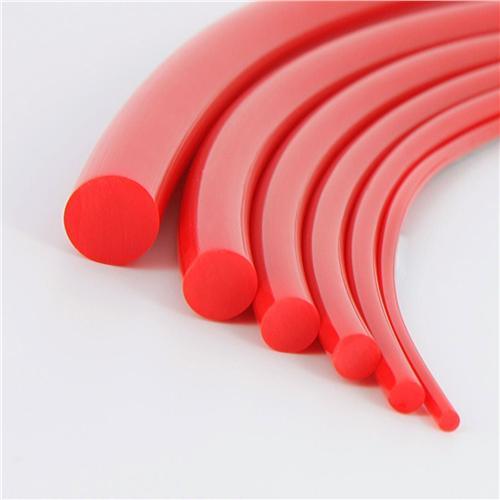

4940025 by Fenner Drives | Eagle 90 Round Belting | 3/8" x 9mm Diameter | Non-Reinforced | Red | 100ft

4940025 by Fenner Drives | Eagle 90 Round Belting | 3/8" x 9mm Diameter | Non-Reinforced | Red | 100ft

Sale price$435.98
Fenner Drives - Conveying - Round Belting - 9mm, 9.5mm, 3/8" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $409.82
15–29 $370.58
30+ $326.99
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 90 Series
Overview:
  • Eagle Red 90 Non-Reinforced Round Belting is constructed of solid polyurethane with a 90 Shore A durometer that provides extremely high abrasion resistance. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Red 90 Non-Reinforced Round Belts offer the hardest durometer and best abrasion resistance of any Fenner Drives Eagle polyurethane belts. The solid 90A durometer gives you the strength and durability your conveying application needs. If you have a heavy load carrying problem-we have a simple solution! Eagle Red 90 Non-Reinforced Round will not disappoint!

    Best Suited For: Medium to heavy duty conveying applications that require the best abrasion resistance you can get in a polyurethane round belt profile.

  • 90 Shore A durometer polyurethane belting
  • Solid polyurethane construction
  • Superior abrasion resistance
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Red 90 Non-Reinforced Round belt is the dependable choice for your toughest material transfer applications. Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Red 90 Non-Reinforced Round Belts are easily welded on-site with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 10mm, 12.5mm, 12mm, 15mm, 2mm, 3/16", 3/8", 3mm, 4mm, 5mm, 6.3mm, 6mm, 7mm, 8mm, 9.5mm, 9/16"
Reinforcement: None Color: Red
Compliancy: REACH, RoHS Durometer: 90A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04G899 Eagle Green 89 Textured --- 9mm 3.19" 81mm 4.7 21 7.7 34.4 10.6 47.2 13.3 59 0.051 lbs 0.076 kg
4941103 Eagle Blue 80 MD 3/8" 9.5mm 2.63" 67mm 3 13.5 4.7 20.9 6.3 27.9 7.8 34.8 0.054 lbs 0.08 kg
4940005 Eagle Opaque 80 3/8" 9.5mm 2.63" 67mm 4.7 20.8 8 35.4 11.1 49.4 14 62.3 0.058 lbs 0.087 kg
1032012 Eagle Orange 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4908018 Eagle Clear 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4940025 Eagle Red 90 3/8" 9.5mm 3.75" 95mm 23.9 106.1 34.4 152.9 43.3 192.4 50.6 225.1 0.058 lbs 0.086 kg
4907018 Eagle Clear 95 3/8" 9.5mm 3.75" 95mm 8.2 36.3 12.1 53.9 15.6 69.3 18.5 82.4 0.059 lbs 0.088 kg
4934018 Eagle Clear 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4934025 Eagle Yellow 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4928007 Eagle Clear 95 3/8" 9.5mm 2.62" 67mm 3.4 15 5.2 23.2 7 31 8.7 38.7 0.053 lbs 0.079 kg

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
