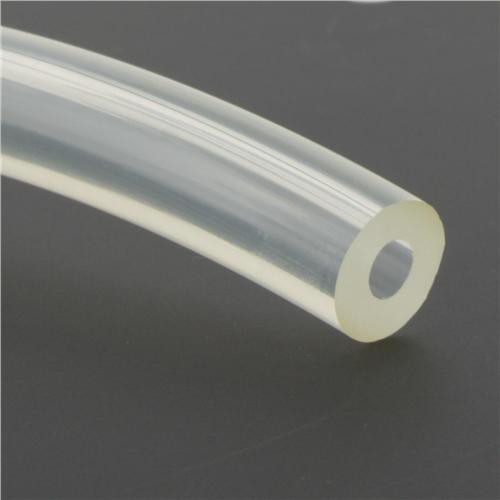

4934018 by Fenner Drives | Eagle 85 QC Round Belting | .375 x .152" Diameter | Non-Reinforced | Clear | 100ft

4934018 by Fenner Drives | Eagle 85 QC Round Belting | .375 x .152" Diameter | Non-Reinforced | Clear | 100ft

Sale price$558.94
Fenner Drives - Conveying - Round Belting - 9mm, 9.5mm, 3/8" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $525.40
15–29 $475.10
30+ $419.21
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Clear 85 Quick Connect (QC) has a round, hollow construction with 85 Shore A durometer that can quickly and easily be joined with metal connectors (included) so that there is no welding required. Packaged in 100'/30.5m lengths.
Description:
  • A round, hollow connectable polyurethane belting, Eagle Clear 85 QC is the ideal quick fix on packaging and conveying lines where minimal downtime is desired. All Eagle QC belting can be installed without dismantling drive shafts and is easily made endless using a barbed connector.

    Best Suited For: Light duty conveying or motion transfer applications where it is undesirable or impractical to weld the belt.

  • Easy installation without dismantling drive shafts
  • No welding required
  • Easily made endless with Fenner Drives Quick Connectors


    • Eagle Clear 85 QC is manufactured from a clear 85 Shore A durometer polyurethane belting that provides excellent abrasion resistance, high elasticity, and is also self-tensioning.

  • 85 Shore A durometer
  • Highly elastic
  • REACH and RoHS 2002/95/EC Directive compliant

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/4", 10mm, 12mm, 2mm, 3/8", 3mm, 4mm, 5mm, 6.3mm, 6mm, 7mm, 8mm, 9.5mm
Reinforcement: None Color: Opaque
Compliancy: REACH, RoHS Durometer: 80A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04G899 Eagle Green 89 Textured --- 9mm 3.19" 81mm 4.7 21 7.7 34.4 10.6 47.2 13.3 59 0.051 lbs 0.076 kg
4941103 Eagle Blue 80 MD 3/8" 9.5mm 2.63" 67mm 3 13.5 4.7 20.9 6.3 27.9 7.8 34.8 0.054 lbs 0.08 kg
4940005 Eagle Opaque 80 3/8" 9.5mm 2.63" 67mm 4.7 20.8 8 35.4 11.1 49.4 14 62.3 0.058 lbs 0.087 kg
1032012 Eagle Orange 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4908018 Eagle Clear 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4940025 Eagle Red 90 3/8" 9.5mm 3.75" 95mm 23.9 106.1 34.4 152.9 43.3 192.4 50.6 225.1 0.058 lbs 0.086 kg
4907018 Eagle Clear 95 3/8" 9.5mm 3.75" 95mm 8.2 36.3 12.1 53.9 15.6 69.3 18.5 82.4 0.059 lbs 0.088 kg
4934018 Eagle Clear 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4934025 Eagle Yellow 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4928007 Eagle Clear 95 3/8" 9.5mm 2.62" 67mm 3.4 15 5.2 23.2 7 31 8.7 38.7 0.053 lbs 0.079 kg

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
