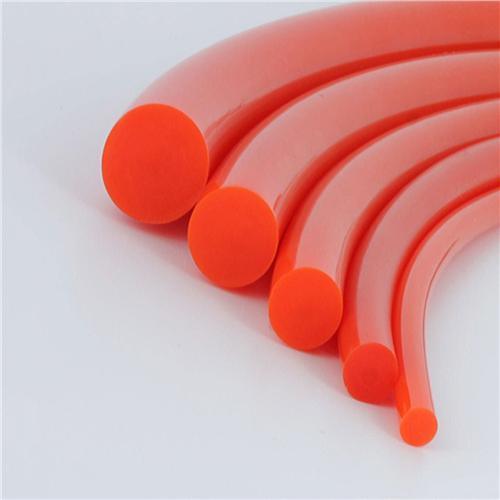

1032012 Fenner Drives Eagle Orange 85 Round Belting - 3/8" - 9mm Diameter - Non-Reinforced - 100ft - Beltsmart

1032012 by Fenner Drives | Eagle 85 Round Belting | 3/8" x 9mm Diameter | Non-Reinforced | Orange | 100ft

Sale price$335.89
Fenner Drives - Conveying - Round Belting - 9mm, 9.5mm, 3/8" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $315.74
15–29 $285.51
30+ $251.92
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Orange 85 Non-Reinforced Round Belting is constructed of solid polyurethane with an 85 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • The Original Orange belt! Eagle Orange 85 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 85 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a Round belt.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 80 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 10mm, 12mm, 13mm, 2mm, 3/16", 3/32", 3/4", 3/8", 3mm, 4mm, 5/16", 5/8", 5mm, 6mm, 7mm, 8mm, 9/16"
Reinforcement: None Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04G899 Eagle Green 89 Textured --- 9mm 3.19" 81mm 4.7 21 7.7 34.4 10.6 47.2 13.3 59 0.051 lbs 0.076 kg
4941103 Eagle Blue 80 MD 3/8" 9.5mm 2.63" 67mm 3 13.5 4.7 20.9 6.3 27.9 7.8 34.8 0.054 lbs 0.08 kg
4940005 Eagle Opaque 80 3/8" 9.5mm 2.63" 67mm 4.7 20.8 8 35.4 11.1 49.4 14 62.3 0.058 lbs 0.087 kg
1032012 Eagle Orange 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4908018 Eagle Clear 85 3/8" 9.5mm 3" 76mm 4.4 19.4 6.7 29.9 9 39.9 11.1 49.2 0.057lbs 0.086 kg
4940025 Eagle Red 90 3/8" 9.5mm 3.75" 95mm 23.9 106.1 34.4 152.9 43.3 192.4 50.6 225.1 0.058 lbs 0.086 kg
4907018 Eagle Clear 95 3/8" 9.5mm 3.75" 95mm 8.2 36.3 12.1 53.9 15.6 69.3 18.5 82.4 0.059 lbs 0.088 kg
4934018 Eagle Clear 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4934025 Eagle Yellow 85 QC .375 x .152"* --- 3" 76mm 1.8 8.2 2.9 12.7 3.8 17.1 4.7 21 0.048 lbs 0.071 kg
4928007 Eagle Clear 95 3/8" 9.5mm 2.62" 67mm 3.4 15 5.2 23.2 7 31 8.7 38.7 0.053 lbs 0.079 kg

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.1e>>
