4940006 by Fenner Drives | Eagle 80 V Belt | Cross Section | 8mm w x 5mm h | Non-Reinforced | Opaque | 100ft
Fenner Drives

4940006 by Fenner Drives | Eagle 80 V Belt | Cross Section | 8mm w x 5mm h | Non-Reinforced | Opaque | 100ft

Sale price$429.93
Fenner Drives - Conveying - V Belting - 6x4, 8x5, 10x4mm - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 80 Series
Overview:

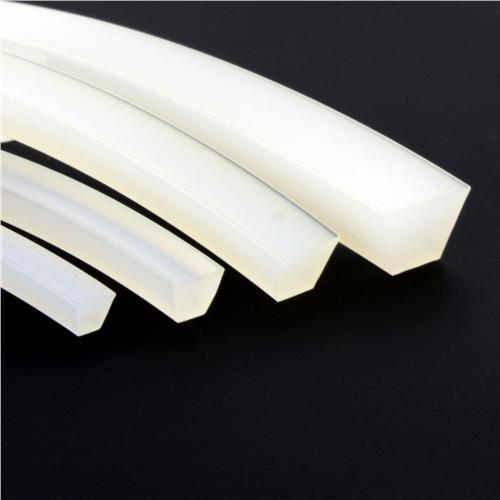

  • Eagle Opaque 80 Non-Reinforced Vee Belting is constructed of solid polyurethane with an 80 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Opaque 80 Non-Reinforced Vee Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 80 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a vee profile.

  • 85 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant
  • Solid polyurethane construction


    • The proven workhorses! Eagle Opaque 80 Non-Reinforced Vee belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Opaque Non-Reinforced Vee belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Vee Profile Size: 8mm x 5mm, A/13, B/17, Z/10
Reinforcement: None Color: Opaque
Compliancy: REACH, RoHS Durometer: 80A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928009 Eagle Blue 80 EC 6mm x 4mm --- 6.5 x 4mm 1.1" 28mm 0.8 3.7 1.5 6.7 2.1 9.4 2.7 12.1 0.015 lbs 0.023 kg
4927009 Eagle Clear 80 EC 6mm x 4mm --- 6.5 x 4mm 1.1" 28mm 0.8 3.7 1.5 6.7 2.1 9.4 2.7 12.1 0.015 lbs 0.023 kg
L04C850604 Eagle Clear 85 6mm x 4mm --- 6.5 x 4mm 1.26" 32mm 1 4.5 1.7 7.6 2.4 10.7 3 13.5 0.016 lbs 0.024 kg
L04BL850604 Eagle Blue 85 6mm x 4mm --- 6.5 x 4mm 1.26" 32mm 1 4.5 1.7 7.6 2.4 10.7 3 13.5 0.016 lbs 0.024 kg
4928010 Eagle Blue 80 EC 8mm x 5mm --- 8 x 5mm 1.38" 35mm 1.3 5.7 2.4 10.5 3.3 14.6 4.2 18.9 0.024 lbs 0.035 kg
4927010 Eagle Clear 80 EC 8mm x 5mm --- 8 x 5mm 1.38" 35mm 1.3 5.7 2.4 10.5 3.3 14.6 4.2 18.9 0.024 lbs 0.035 kg
4940006 Eagle Opaque 80 8mm x 5mm --- 8 x 5mm 1.38" 35mm 1.6 7.1 3.3 14.7 5.2 23.1 7 31.2 0.015 lbs 0.039 kg
L04BL8585M Eagle Blue 85 8mm x 5mm --- 8 x 5mm 1.57" 40mm 1.5 6.8 2.6 11.5 3.6 16.2 4.6 20.5 0.025 lbs 0.038 kg
4940027 Eagle Red 90 8mm x 5mm --- 8 x 5mm 2" 50mm 10.8 48.1 15.6 69.3 19.6 87.2 22.9 102 0.026 lbs 0.039 kg

* w (width) is the widest part of the belt.
h (height) is the tallest part of the belt, including the belting top surface.
Dimensions are for reference only.
