4927010 by Fenner Drives | Eagle 80 EC V Belt | Cross Section | 8mm w x 4mm h | Non-Reinforced | Clear | 100ft
Fenner Drives

4927010 by Fenner Drives | Eagle 80 EC V Belt | Cross Section | 8mm w x 4mm h | Non-Reinforced | Clear | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:

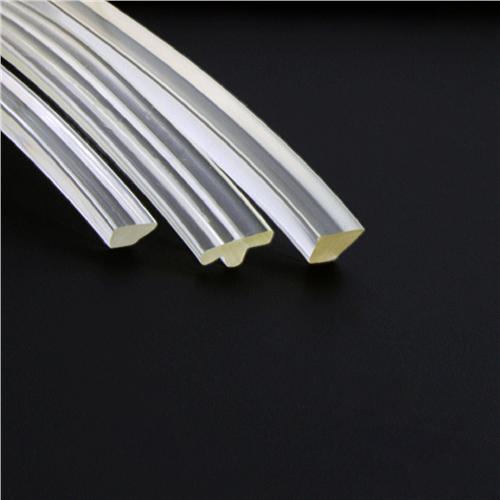

  • Eagle Clear 80 EC Non-Reinforced Specialty Belting is made of solid polyurethane designed specifically for direct food contact within the framework defined by the Regulation 1935/2004/EC. Also offers excellent abrasion resistance and high elasticity. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Clear 80 EC Non-Reinforced Specialty Belting is Fenner Drives' latest addition to the already stellar Eagle line. This Eagle premium belt is suitable for repeat use direct food contact at temperatures up to 40 deg C (104 deg. F) with all food types having a pH of greater than 4.5.

    Best Suited For: Light duty conveying applications involving direct food contact.

    Independently certified to meet the requirements of European Regulation 10/2011 (and the legislation which it replaces; Commission Directive 2002/72/EC) within the framework defined by the Regulation 1935/2004/EC (27/10/2004) relating to plastic materials and articles intended to come into direct contact with foodstuffs.

    When used in a range of "typical" process environments, Eagle EC belting will not allow components to migrate into food in quantities that could endanger human health, change the composition of the food in an unacceptable way or deteriorate the taste and smell of foodstuffs.

  • 80 Shore A durometer polyurethane belting
  • Eagle premium belting for repeated direct food contact
  • Independently tested and verified to meet FDA standards for direct food contact
  • For repeat use food contact at temps up to 40 deg. C with all types having a pH greater than 4.5.
  • Solid polyurethane construction


    • Produced in accordance with Good Manufacturing Practice (GMP) standards with exacting quality control, Eagle EC Belting is of such dimensional consistency sanitary conveyor system performance and reliability is improved.

    Eagle Clear EC Non-Reinforced Vee Belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: T-Top Profile Size: 10mm x 2mm x 4mm, 6mm x 4mm, 8mm x 5mm
Reinforcement: None Color: Clear
Compliancy: EC Food Safety, FDA, REACH, RoHS Durometer: 80A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928009 Eagle Blue 80 EC 6mm x 4mm --- 6.5 x 4mm 1.1" 28mm 0.8 3.7 1.5 6.7 2.1 9.4 2.7 12.1 0.015 lbs 0.023 kg
4927009 Eagle Clear 80 EC 6mm x 4mm --- 6.5 x 4mm 1.1" 28mm 0.8 3.7 1.5 6.7 2.1 9.4 2.7 12.1 0.015 lbs 0.023 kg
L04C850604 Eagle Clear 85 6mm x 4mm --- 6.5 x 4mm 1.26" 32mm 1 4.5 1.7 7.6 2.4 10.7 3 13.5 0.016 lbs 0.024 kg
L04BL850604 Eagle Blue 85 6mm x 4mm --- 6.5 x 4mm 1.26" 32mm 1 4.5 1.7 7.6 2.4 10.7 3 13.5 0.016 lbs 0.024 kg
4928010 Eagle Blue 80 EC 8mm x 5mm --- 8 x 5mm 1.38" 35mm 1.3 5.7 2.4 10.5 3.3 14.6 4.2 18.9 0.024 lbs 0.035 kg
4927010 Eagle Clear 80 EC 8mm x 5mm --- 8 x 5mm 1.38" 35mm 1.3 5.7 2.4 10.5 3.3 14.6 4.2 18.9 0.024 lbs 0.035 kg
4940006 Eagle Opaque 80 8mm x 5mm --- 8 x 5mm 1.38" 35mm 1.6 7.1 3.3 14.7 5.2 23.1 7 31.2 0.015 lbs 0.039 kg
L04BL8585M Eagle Blue 85 8mm x 5mm --- 8 x 5mm 1.57" 40mm 1.5 6.8 2.6 11.5 3.6 16.2 4.6 20.5 0.025 lbs 0.038 kg
4940027 Eagle Red 90 8mm x 5mm --- 8 x 5mm 2" 50mm 10.8 48.1 15.6 69.3 19.6 87.2 22.9 102 0.026 lbs 0.039 kg

* w (width) is the widest part of the belt.
h (height) is the tallest part of the belt, including the belting top surface.
Dimensions are for reference only.
