493030030M by Fenner Drives | Eagle 85 SGT PU V Belting | Cross Section A/13 | 0.50" w x 0.47" h, 13mm w x 12.06mm h | Non-Reinforced | Ivory | 100ft
Fenner Drives

493030030M by Fenner Drives | Eagle 85 SGT PU V Belting | Cross Section A/13 | 0.50" w x 0.47" h, 13mm w x 12.06mm h | Non-Reinforced | Ivory | 100ft

Sale price$932.73
Fenner Drives - Conveying - V Belting - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

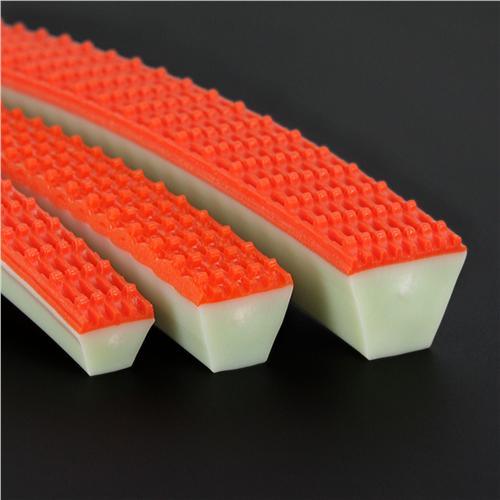

  • Eagle Ivory 85 Reinforced SGT PU is constructed of a polyester cord reinforced 85 A durometer polyurethane base belt made and a high-grip, low-wear SGT (SuperGrip Top) polyurethane top surface. Packaged in 100'/30.5m lengths.
Description:
  • Look no further! We have the grip you are seeking! Fenner Drives Eagle 85 Reinforced SGT PU Vee belts are the toughest and most durable SuperGrip Top in our product line. Harder and less pliable than our other offering, this relatively soft polyurethane compound provides superior traction for tough applications. This belt combines a 70A polyurethane SuperGrip Top surface for superior abrasion resistance with a durable 85A base durometer and a polyester reinforcing tensile member for maximum strength!

    Best Suited For: Conveying applications that require a strong, low stretch vee belt combined with a super grip surface. Perfect for conveying in the most abrasive environments such as moving concrete blocks, bricks, and tiles of all types.

  • 70A polyurethane SuperGrip Top for superior abrasion resistance
  • 85A polyurethane base durometer
  • Integrally bonded tops cannot delaminate
  • Polyester reinforcing tensile member
  • RoHS 2002/95/EC Directive Compliant


    • Eagle Ivory 85 Reinforced SGT PU Belting wears up to 3x longer than our PVC SuperGrip Top and is ideal for inclines and declines in the ceramic and roof tile sectors!

    Eagle Ivory 85 Reinforced SGT PU Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Ivory 85 Reinforced SGT PU Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, C/22
Reinforcement: Single Polyester Cord Color: Ivory, Orange
Compliancy: RoHS Durometer: 70A, 85A
Material: Polyurethane, Polyurethane Top Surface Special Feature: Polyurethane Gip Top Surface Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928013 Eagle Blue 80 EC A/13 --- 13 x 8mm 2.2" 56mm 3.4 14.9 6.1 27.3 8.6 38.2 11.1 49.3 0.062 lbs 0.092 kg
4927013 Eagle Clear 80 EC A/13 --- 13 x 8mm 2.2" 56mm 3.4 14.9 6.1 27.3 8.6 38.2 11.1 49.3 0.062 lbs 0.092 kg
4941108 Eagle Blue 80 MD A/13 1/2" x 5/16" 13 x 8mm 2.2" 56mm 2.8 12.6 4.8 21.5 6.8 30.4 8.8 38.9 0.061 lbs 0.091 kg
4940009 Eagle Opaque 80 A/13 1/2 x 5/16" 13 x 8mm 2.2" 56mm 4.1 18.1 8.4 37.3 13.2 58.8 17.8 79.2 0.066 lbs 0.099 kg
1032038 Eagle Orange 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4 17.6 6.7 29.9 9.4 41.9 11.9 53.1 0.066 lbs 0.098 kg
4912066 Eagle Clear 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4.1 18.1 6.9 30.6 9.7 43 12.2 54.4 0.066 lbs 0.098 kg
L04I85A Eagle Ivory 85 A/13 1/2 x 5/16" 13 x 8mm 2.52" 64mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.065 lbs 0.096 kg
L04BL85A Eagle Blue 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4 18 6.8 30.4 9.5 42.7 12 54.1 0.066 lbs 0.098 kg
L04G89A Eagle Green 89 A/13 1/2 x 5/16" 13 x 8mm 2.83" 72mm 20.2 89.8 30.8 137.2 40.4 179.6 48.7 216.6 0.066 lbs 0.098 kg
4940029 Eagle Red 90 A/13 1/2 x 5/16" 13 x 8mm 3.13" 80mm 27 120.2 38.9 173.1 49 217.9 57.3 255 0.066 lbs 0.098 kg
L04BE95A Eagle Beige 95 A/13 1/2 x 5/16" 13 x 8mm 3.1" 80mm 16.6 73.8 24.8 110.3 32 142.5 38.4 170.7 0.068 lbs 0.101 kg
4911066 Eagle Clear 95 A/13 1/2 x 5/16" 13 x 8mm 3.13" 79mm 7.5 33.2 12.2 54.2 16.4 72.9 20 88.9 0.067 lbs 0.1 kg
L04BY40A Eagle White 40D A/13 1/2 x 5/16" 13 x 8mm 3.78" 96mm 15.5 69.1 26.6 118.1 36.6 162.8 45.2 201.2 0.064 lbs 0.096 kg
L04BY55A Eagle Blue 55D A/13 1/2 x 5/16" 13 x 8mm 4.09" 104mm 60.3 268.3 88.6 394.3 111.3 495 128.8 573.1 0.066 lbs 0.098 kg
4924320 Eagle Red 85 CXF A/13 0.50 x 0.41" 13 x 10.54mm 3.28" 83mm 4.6 20.5 7.3 32.3 9.9 44 12.3 54.8 0.091 lbs 0.135 kg
493030030M Eagle Ivory 85 SGT PU A/13 0.50 x 0.47" 13 x 12.06mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.085 lbs 0.127 kg
L04I85ASG Eagle Ivory 85 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.095 lbs 0.142 kg
493120030M Eagle Ivory 85 SGT TPE A/13 0.50 x 0.48" 13 x 12.34mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.028 lbs 0.124 kg
L04G89ASG Eagle Green 89 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.69" 94mm 20.2 89.8 30.8 137.2 40.4 179.6 48.7 216.6 0.096 lbs 0.143 kg
L04R90ASG Eagle Red 90 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.69" 94mm 27 120.2 38.9 173.1 49 217.9 57.3 255 0.096 lbs 0.143 kg
L04BY40ASG Eagle White 40D SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 5.34" 136mm 15.5 69.1 26.6 118.1 36.6 162.8 45.2 201.2 0.095 lbs 0.141 kg
1032040 Eagle Orange 85 A/13 Hi-Ridge-Top 1/2 x 5/8" --- 5" 127mm 5.5 24.7 9.4 41.8 13.2 58.7 16.7 74.3 0.92 lbs 0.137 kg
4911102 Eagle Clear 85 A/13 Hi-Ridge-Top 1/2 x 5/8" --- 5" 127mm 5.3 23.7 9 40.1 12.7 56.3 16 71.3 0.086 lbs 0.128 kg
1032039 Eagle Orange 85 A/13 Lo-Ridge-Top 1/2 x 7/16" --- 3.5" 89mm 4.3 19.1 7.3 32.4 10.2 45.4 12.9 57.5 0.071 lbs 0.106 kg
4912067 Eagle Clear 85 A/13 Lo-Ridge-Top 1/2 x 7/16" --- 3.5" 89mm 4.3 19.3 7.3 32.6 10.3 45.8 13 58 0.07 lbs 0.104 kg
L04G89AX Eagle Green 89 A/13 Ridge-Top --- 13 x 16mm 5.67" 144mm 33 146.8 50.4 224.3 66 293.6 79.6 354.1 0.107 lbs 0.159 kg
1032041 Eagle Orange 85 A Twin 1-3/16 x 5/16" --- 2.5" 64mm 9.3 41.4 15.8 70.2 22.1 98.5 28.1 124.8 0.154 lbs 0.23 kg
4912068 Eagle Clear 85 A Twin 1-3/16 x 5/16" --- 2.5" 64mm 9.6 42.5 16.2 72 22.7 100.9 28.7 127.9 0.154 lbs 0.23 kg
1232550 Eagle Orange 85 AA 1/2 x 13/32" --- 3.25" 83mm 5.6 25.1 9.6 42.5 13.4 59.6 17 75.5 0.093 lbs 0.139 kg
