1032041 Fenner Drives Eagle Orange 85 V Belting - Cross Section A Twin - 1-3/16" w x 5/16" h - Non-Reinforced - 100ft - Beltsmart
Fenner Drives

1032041 by Fenner Drives | Eagle 85 V Belting | Cross Section A Twin | 1-3/16" w x 5/16" h | Non-Reinforced | Orange | 100ft

Sale price$1,127.42
Fenner Drives - Conveying - V Belting - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

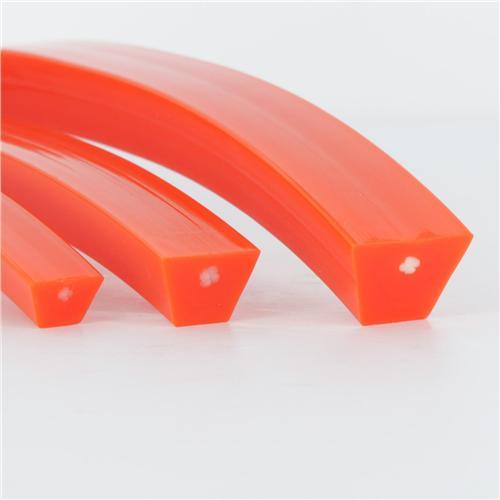

  • Eagle Orange 85 Reinforced Vee Belting is constructed of polyurethane with an 85 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. Packaged in 100'/30.5m length.
Description:
  • Eagle Orange 85 Reinforced Vee Belts embody no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes heavier loads possible to convey. Eagle Orange 85 Reinforced Vee Belts can also double as an option for your medium-duty power transmission applications.

    Best Suited For: An all-purpose, highly versatile polyester reinforced polyurethane belt for virtually any medium to heavy duty conveying application or medium duty power transmission application, requiring a Vee belt profile.

    Independently certified to meet the requirements of European Regulation 10/2011 (and the legislation which it replaces; Commission Directive 2002/72/EC) within the framework defined by the Regulation 1935/2004/EC (27/10/2004) relating to plastic materials and articles intended to come into direct contact with foodstuffs.

    When used in a range of "typical" process environments, Eagle EC belting will not allow components to migrate into food in quantities that could endanger human health, change the composition of the food in an unacceptable way or deteriorate the taste and smell of foodstuffs.

  • Independently tested and verified to meet FDA standards for direct food contact
  • 85 shore A durometer
  • polyurethane belting
  • Polyester reinforcing tensile cord
  • Low stretch, High strength
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Reinforced Vee Belts are the proven workhorses for material transfer and medium-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Reinforced Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Orange 85 Reinforced Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, Z/10
Reinforcement: Single Polyester Cord Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928013 Eagle Blue 80 EC A/13 --- 13 x 8mm 2.2" 56mm 3.4 14.9 6.1 27.3 8.6 38.2 11.1 49.3 0.062 lbs 0.092 kg
4927013 Eagle Clear 80 EC A/13 --- 13 x 8mm 2.2" 56mm 3.4 14.9 6.1 27.3 8.6 38.2 11.1 49.3 0.062 lbs 0.092 kg
4941108 Eagle Blue 80 MD A/13 1/2" x 5/16" 13 x 8mm 2.2" 56mm 2.8 12.6 4.8 21.5 6.8 30.4 8.8 38.9 0.061 lbs 0.091 kg
4940009 Eagle Opaque 80 A/13 1/2 x 5/16" 13 x 8mm 2.2" 56mm 4.1 18.1 8.4 37.3 13.2 58.8 17.8 79.2 0.066 lbs 0.099 kg
1032038 Eagle Orange 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4 17.6 6.7 29.9 9.4 41.9 11.9 53.1 0.066 lbs 0.098 kg
4912066 Eagle Clear 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4.1 18.1 6.9 30.6 9.7 43 12.2 54.4 0.066 lbs 0.098 kg
L04I85A Eagle Ivory 85 A/13 1/2 x 5/16" 13 x 8mm 2.52" 64mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.065 lbs 0.096 kg
L04BL85A Eagle Blue 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4 18 6.8 30.4 9.5 42.7 12 54.1 0.066 lbs 0.098 kg
L04G89A Eagle Green 89 A/13 1/2 x 5/16" 13 x 8mm 2.83" 72mm 20.2 89.8 30.8 137.2 40.4 179.6 48.7 216.6 0.066 lbs 0.098 kg
4940029 Eagle Red 90 A/13 1/2 x 5/16" 13 x 8mm 3.13" 80mm 27 120.2 38.9 173.1 49 217.9 57.3 255 0.066 lbs 0.098 kg
L04BE95A Eagle Beige 95 A/13 1/2 x 5/16" 13 x 8mm 3.1" 80mm 16.6 73.8 24.8 110.3 32 142.5 38.4 170.7 0.068 lbs 0.101 kg
4911066 Eagle Clear 95 A/13 1/2 x 5/16" 13 x 8mm 3.13" 79mm 7.5 33.2 12.2 54.2 16.4 72.9 20 88.9 0.067 lbs 0.1 kg
L04BY40A Eagle White 40D A/13 1/2 x 5/16" 13 x 8mm 3.78" 96mm 15.5 69.1 26.6 118.1 36.6 162.8 45.2 201.2 0.064 lbs 0.096 kg
L04BY55A Eagle Blue 55D A/13 1/2 x 5/16" 13 x 8mm 4.09" 104mm 60.3 268.3 88.6 394.3 111.3 495 128.8 573.1 0.066 lbs 0.098 kg
4924320 Eagle Red 85 CXF A/13 0.50 x 0.41" 13 x 10.54mm 3.28" 83mm 4.6 20.5 7.3 32.3 9.9 44 12.3 54.8 0.091 lbs 0.135 kg
493030030M Eagle Ivory 85 SGT PU A/13 0.50 x 0.47" 13 x 12.06mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.085 lbs 0.127 kg
L04I85ASG Eagle Ivory 85 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.095 lbs 0.142 kg
493120030M Eagle Ivory 85 SGT TPE A/13 0.50 x 0.48" 13 x 12.34mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.028 lbs 0.124 kg
L04G89ASG Eagle Green 89 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.69" 94mm 20.2 89.8 30.8 137.2 40.4 179.6 48.7 216.6 0.096 lbs 0.143 kg
L04R90ASG Eagle Red 90 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.69" 94mm 27 120.2 38.9 173.1 49 217.9 57.3 255 0.096 lbs 0.143 kg
L04BY40ASG Eagle White 40D SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 5.34" 136mm 15.5 69.1 26.6 118.1 36.6 162.8 45.2 201.2 0.095 lbs 0.141 kg
1032040 Eagle Orange 85 A/13 Hi-Ridge-Top 1/2 x 5/8" --- 5" 127mm 5.5 24.7 9.4 41.8 13.2 58.7 16.7 74.3 0.92 lbs 0.137 kg
4911102 Eagle Clear 85 A/13 Hi-Ridge-Top 1/2 x 5/8" --- 5" 127mm 5.3 23.7 9 40.1 12.7 56.3 16 71.3 0.086 lbs 0.128 kg
1032039 Eagle Orange 85 A/13 Lo-Ridge-Top 1/2 x 7/16" --- 3.5" 89mm 4.3 19.1 7.3 32.4 10.2 45.4 12.9 57.5 0.071 lbs 0.106 kg
4912067 Eagle Clear 85 A/13 Lo-Ridge-Top 1/2 x 7/16" --- 3.5" 89mm 4.3 19.3 7.3 32.6 10.3 45.8 13 58 0.07 lbs 0.104 kg
L04G89AX Eagle Green 89 A/13 Ridge-Top --- 13 x 16mm 5.67" 144mm 33 146.8 50.4 224.3 66 293.6 79.6 354.1 0.107 lbs 0.159 kg
1032041 Eagle Orange 85 A Twin 1-3/16 x 5/16" --- 2.5" 64mm 9.3 41.4 15.8 70.2 22.1 98.5 28.1 124.8 0.154 lbs 0.23 kg
4912068 Eagle Clear 85 A Twin 1-3/16 x 5/16" --- 2.5" 64mm 9.6 42.5 16.2 72 22.7 100.9 28.7 127.9 0.154 lbs 0.23 kg
1232550 Eagle Orange 85 AA 1/2 x 13/32" --- 3.25" 83mm 5.6 25.1 9.6 42.5 13.4 59.6 17 75.5 0.093 lbs 0.139 kg
