L04I85ASG by Fenner Drives | Eagle 85 SGT PVC V Belting | Cross Section A/13 | 0.50" w x 0.53" h, 13mm w x 13.51mm h | Non-Reinforced | Ivory | 100ft
Fenner Drives

L04I85ASG by Fenner Drives | Eagle 85 SGT PVC V Belting | Cross Section A/13 | 0.50" w x 0.53" h, 13mm w x 13.51mm h | Non-Reinforced | Ivory | 100ft

Sale price$931.79
Fenner Drives - Conveying - V Belting - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

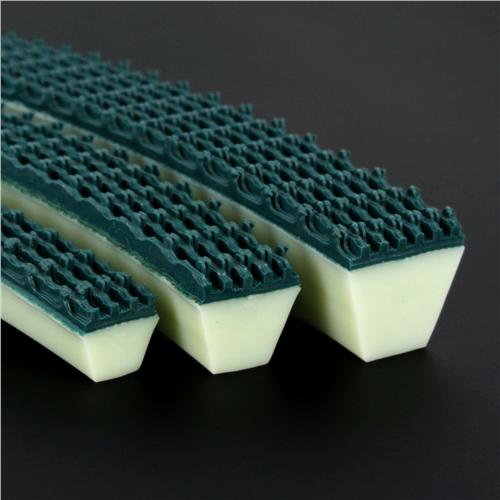

  • Eagle Ivory 85 Non-Reinforced SGT PVC Belting is constructed of an 85 A durometer polyurethane base belt and an extremely compliant SGT (SuperGrip Top) PVC top surface. Packaged in 100'/30.5m lengths.
Description:
  • Look no further! We have the grip you are seeking! Fenner Drives Eagle 85 Non-Reinforced SGT PVC Vee Belts are your answer. Our PVC 50A SuperGrip Top surface is soft and tacky enough that it won't damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely compliant pattern.

    Best Suited For: Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface. Perfect for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.

  • 85A polyurethane base durometer
  • Integrally bonded tops cannot delaminate
  • 50A PVC top surface
  • RoHS 2002/95/EC Directive Compliant


    • Eagle Ivory 85 Non-Reinforced SGT PVC Vee Belts are ideally suited for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.

    Fenner Drives Eagle Ivory 85 Non-Reinforced SGT PVC Vee Belts are easily welded endless on site with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, C/22
Reinforcement: Single Polyester Cord Color: Green, Ivory
Compliancy: RoHS Durometer: 50A, 85A
Material: Polyurethane, PVC Top Surface Special Feature: PVC Grip Top Surface
Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928013 Eagle Blue 80 EC A/13 --- 13 x 8mm 2.2" 56mm 3.4 14.9 6.1 27.3 8.6 38.2 11.1 49.3 0.062 lbs 0.092 kg
4927013 Eagle Clear 80 EC A/13 --- 13 x 8mm 2.2" 56mm 3.4 14.9 6.1 27.3 8.6 38.2 11.1 49.3 0.062 lbs 0.092 kg
4941108 Eagle Blue 80 MD A/13 1/2" x 5/16" 13 x 8mm 2.2" 56mm 2.8 12.6 4.8 21.5 6.8 30.4 8.8 38.9 0.061 lbs 0.091 kg
4940009 Eagle Opaque 80 A/13 1/2 x 5/16" 13 x 8mm 2.2" 56mm 4.1 18.1 8.4 37.3 13.2 58.8 17.8 79.2 0.066 lbs 0.099 kg
1032038 Eagle Orange 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4 17.6 6.7 29.9 9.4 41.9 11.9 53.1 0.066 lbs 0.098 kg
4912066 Eagle Clear 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4.1 18.1 6.9 30.6 9.7 43 12.2 54.4 0.066 lbs 0.098 kg
L04I85A Eagle Ivory 85 A/13 1/2 x 5/16" 13 x 8mm 2.52" 64mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.065 lbs 0.096 kg
L04BL85A Eagle Blue 85 A/13 1/2 x 5/16" 13 x 8mm 2.5" 64mm 4 18 6.8 30.4 9.5 42.7 12 54.1 0.066 lbs 0.098 kg
L04G89A Eagle Green 89 A/13 1/2 x 5/16" 13 x 8mm 2.83" 72mm 20.2 89.8 30.8 137.2 40.4 179.6 48.7 216.6 0.066 lbs 0.098 kg
4940029 Eagle Red 90 A/13 1/2 x 5/16" 13 x 8mm 3.13" 80mm 27 120.2 38.9 173.1 49 217.9 57.3 255 0.066 lbs 0.098 kg
L04BE95A Eagle Beige 95 A/13 1/2 x 5/16" 13 x 8mm 3.1" 80mm 16.6 73.8 24.8 110.3 32 142.5 38.4 170.7 0.068 lbs 0.101 kg
4911066 Eagle Clear 95 A/13 1/2 x 5/16" 13 x 8mm 3.13" 79mm 7.5 33.2 12.2 54.2 16.4 72.9 20 88.9 0.067 lbs 0.1 kg
L04BY40A Eagle White 40D A/13 1/2 x 5/16" 13 x 8mm 3.78" 96mm 15.5 69.1 26.6 118.1 36.6 162.8 45.2 201.2 0.064 lbs 0.096 kg
L04BY55A Eagle Blue 55D A/13 1/2 x 5/16" 13 x 8mm 4.09" 104mm 60.3 268.3 88.6 394.3 111.3 495 128.8 573.1 0.066 lbs 0.098 kg
4924320 Eagle Red 85 CXF A/13 0.50 x 0.41" 13 x 10.54mm 3.28" 83mm 4.6 20.5 7.3 32.3 9.9 44 12.3 54.8 0.091 lbs 0.135 kg
493030030M Eagle Ivory 85 SGT PU A/13 0.50 x 0.47" 13 x 12.06mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.085 lbs 0.127 kg
L04I85ASG Eagle Ivory 85 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.095 lbs 0.142 kg
493120030M Eagle Ivory 85 SGT TPE A/13 0.50 x 0.48" 13 x 12.34mm 3.28" 83mm 11.2 50 17.2 76.4 22.5 100.2 27.3 121.4 0.028 lbs 0.124 kg
L04G89ASG Eagle Green 89 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.69" 94mm 20.2 89.8 30.8 137.2 40.4 179.6 48.7 216.6 0.096 lbs 0.143 kg
L04R90ASG Eagle Red 90 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 3.69" 94mm 27 120.2 38.9 173.1 49 217.9 57.3 255 0.096 lbs 0.143 kg
L04BY40ASG Eagle White 40D SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 5.34" 136mm 15.5 69.1 26.6 118.1 36.6 162.8 45.2 201.2 0.095 lbs 0.141 kg
1032040 Eagle Orange 85 A/13 Hi-Ridge-Top 1/2 x 5/8" --- 5" 127mm 5.5 24.7 9.4 41.8 13.2 58.7 16.7 74.3 0.92 lbs 0.137 kg
4911102 Eagle Clear 85 A/13 Hi-Ridge-Top 1/2 x 5/8" --- 5" 127mm 5.3 23.7 9 40.1 12.7 56.3 16 71.3 0.086 lbs 0.128 kg
1032039 Eagle Orange 85 A/13 Lo-Ridge-Top 1/2 x 7/16" --- 3.5" 89mm 4.3 19.1 7.3 32.4 10.2 45.4 12.9 57.5 0.071 lbs 0.106 kg
4912067 Eagle Clear 85 A/13 Lo-Ridge-Top 1/2 x 7/16" --- 3.5" 89mm 4.3 19.3 7.3 32.6 10.3 45.8 13 58 0.07 lbs 0.104 kg
L04G89AX Eagle Green 89 A/13 Ridge-Top --- 13 x 16mm 5.67" 144mm 33 146.8 50.4 224.3 66 293.6 79.6 354.1 0.107 lbs 0.159 kg
1032041 Eagle Orange 85 A Twin 1-3/16 x 5/16" --- 2.5" 64mm 9.3 41.4 15.8 70.2 22.1 98.5 28.1 124.8 0.154 lbs 0.23 kg
4912068 Eagle Clear 85 A Twin 1-3/16 x 5/16" --- 2.5" 64mm 9.6 42.5 16.2 72 22.7 100.9 28.7 127.9 0.154 lbs 0.23 kg
1232550 Eagle Orange 85 AA 1/2 x 13/32" --- 3.25" 83mm 5.6 25.1 9.6 42.5 13.4 59.6 17 75.5 0.093 lbs 0.139 kg
