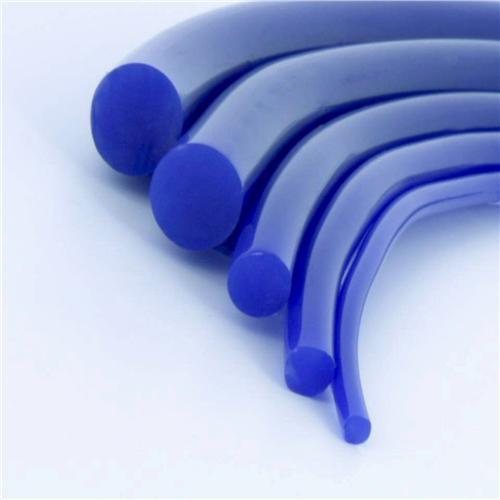

4928006 by Fenner Drives | Eagle 80 EC Round Belting | 8mm Diameter | Non-Reinforced | Blue | 100ft

4928006 by Fenner Drives | Eagle 80 EC Round Belting | 8mm Diameter | Non-Reinforced | Blue | 100ft

Sale price$262.86
Fenner Drives - Conveying - Round Belting - 7mm, 8mm, 5/16" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $247.09
15–29 $223.43
30+ $197.15
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 80 EC Series
Overview:
  • Eagle Blue 80 EC Non-Reinforced Round Belting is made of solid polyurethane designed specifically for direct food contact within the framework defined by the Regulation 1935/2004/EC. Also offers excellent abrasion resistance and high elasticity. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Blue 80 EC Non-Reinforced Round Belting is Fenner Drives' latest addition to the already stellar Eagle line. This Eagle premium belt is suitable for repeat use direct food contact at temperatures up to 40 deg C (104 deg. F) with all food types having a pH of greater than 4.5.

    Best Suited For: Light duty conveying applications involving direct food contact.

    Independently certified to meet the requirements of European Regulation 10/2011 (and the legislation which it replaces; Commission Directive 2002/72/EC) within the framework defined by the Regulation 1935/2004/EC (27/10/2004) relating to plastic materials and articles intended to come into direct contact with foodstuffs.

    When used in a range of "typical" process environments, Eagle EC belting will not allow components to migrate into food in quantities that could endanger human health, change the composition of the food in an unacceptable way or deteriorate the taste and smell of foodstuffs.

  • 80 Shore A durometer polyurethane belting
  • Eagle premium belting for repeated direct food contact
  • Independently tested and verified to meet FDA standards for direct food contact
  • For repeat use food contact at temps up to 40 deg. C with all types having a pH greater than 4.5.
  • Solid polyurethane construction


    • Produced in accordance with Good Manufacturing Practice (GMP) standards with exacting quality control, Eagle EC Belting is of such dimensional consistency sanitary conveyor system performance and reliability is improved.

    Eagle Blue EC Non-Reinforced Round Belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 8mm, 9.5mm
Reinforcement: None Color: Blue
Compliancy: EC Food Safety, FDA, REACH, RoHS Durometer: 80A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OG857M Eagle Orange 85 --- 7mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.6 6 26.6 0.031 lbs 0.046 kg
L04C857M Eagle Clear 85 --- 7mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.6 6 26.6 0.031 lbs 0.046 kg
4999637 Eagle Green 89 --- 7mm 2.48" 63mm 3.9 17.4 6.4 28.6 8.8 39.3 11 49.1 0.031 lbs 0.046 kg
4905307 Eagle Green 89 Textured --- 7mm 2.48" 63mm 2.9 12.7 4.7 20.9 6.4 28.7 8.1 35.8 0.031 lbs 0.046 kg
L04R907 Eagle Red 90 --- 7mm 2.76" 70mm 12.9 57.4 18.6 82.7 23.4 104.1 27.4 121.8 0.031 lbs 0.047 kg
4941102 Eagle Blue 80 MD 5/16" --- 2.19" 56mm 2.1 9.4 3.3 14.5 4.3 19.3 5.5 24.3 0.037 lbs 0.055 kg
1032010 Eagle Orange 85 5/16" --- 2.5" 64mm 3 13.5 4.7 20.8 6.2 27.7 7.7 34.1 0.04 lbs 0.059 kg
4908015 Eagle Clear 85 5/16" --- 2.5" 64mm 3 13.5 4.7 20.8 6.2 27.7 7.7 34.1 0.04 lbs 0.059 kg
4934015 Eagle Clear 85 QC .313" x .126*" --- 2.5" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.7 0.034 lbs 0.05 kg
4934023 Eagle Yellow 85 QC .313" x .126*" --- 2.5" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.7 0.034 lbs 0.05 kg
4928006 Eagle Blue 80 EC --- 8mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.5 6.1 26.9 0.038 lbs 0.056 kg
4927006 Eagle Clear 80 EC --- 8mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.5 6.1 26.9 0.038 lbs 0.056 kg
L04OP808M Eagle Opaque 80 --- 8mm 2.2" 56mm 3.3 14.7 5.6 25 7.8 34.9 9.9 43.9 0.041 lbs 0.061 kg
L04OG858M Eagle Orange 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04C858 Eagle Clear 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04BL858M Eagle Blue 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04G898MS Eagle Green 89 --- 8mm 2.83" 72mm 5.1 22.8 8.4 37.4 11.5 51.3 14.4 64.1 0.04 lbs 0.06 kg
4905308 Eagle Green 89 Textured --- 8mm 2.83" 72mm 3.7 16.6 6.1 27.2 8.4 37.3 10.5 46.7 0.04 lbs 0.06 kg
4940024 Eagle Red 90 --- 8mm 3.15" 80mm 16.8 74.9 24.3 107.9 30.5 135.8 35.7 158.9 0.041 lbs 0.061 kg
L04BE958 Eagle Beige 95 --- 8mm 3.15" 80mm 13.6 60.5 19.3 85.7 24.1 107 28.1 125.1 0.042 lbs 0.062 kg
L04QC858M Eagle Clear 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.8 2 9 2.7 12.1 3.4 14.9 0.034 lbs 0.051 kg
L04QR858M Eagle Red 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.8 2 9 2.7 12.1 3.4 14.9 0.034 lbs 0.051 kg
L04QB858M Eagle Blue 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.6 0.034 lbs 0.051 kg
L04CON8S QC Connectors 25/pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
