4934023 by Fenner Drives | Eagle 85 QC Round Belting | .313" x .126" Diameter | Non-Reinforced | Yellow | 100ft

4934023 by Fenner Drives | Eagle 85 QC Round Belting | .313" x .126" Diameter | Non-Reinforced | Yellow | 100ft

Sale price$385.67
Fenner Drives - Conveying - Round Belting - 7mm, 8mm, 5/16" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $362.53
15–29 $327.82
30+ $289.25
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

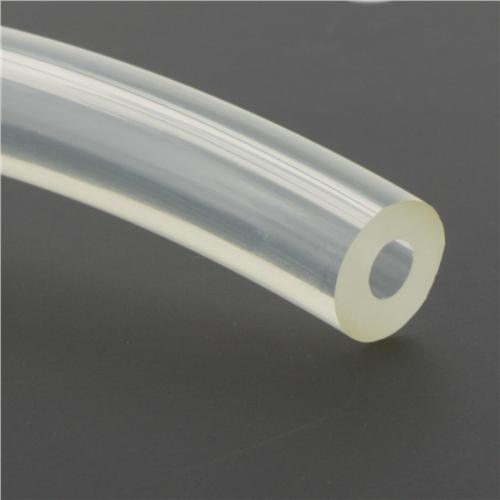

  • Eagle Clear 85 Quick Connect (QC) has a round, hollow construction with 85 Shore A durometer that can quickly and easily be joined with metal connectors (included) so that there is no welding required. Packaged in 100'/30.5m lengths.
Description:
  • A round, hollow connectable polyurethane belting, Eagle Clear 85 QC is the ideal quick fix on packaging and conveying lines where minimal downtime is desired. All Eagle QC belting can be installed without dismantling drive shafts and is easily made endless using a barbed connector.

    Best Suited For: Light duty conveying or motion transfer applications where it is undesirable or impractical to weld the belt.

  • Easy installation without dismantling drive shafts
  • No welding required
  • Easily made endless with Fenner Drives Quick Connectors


    • Eagle Clear 85 QC is manufactured from a clear 85 Shore A durometer polyurethane belting that provides excellent abrasion resistance, high elasticity, and is also self-tensioning.

    85 Shore A durometer, Highly elastic, REACH and RoHS 2002/95/EC Directive compliant

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 3/16", 3/8", 5/16", 5/8"
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Special Feature: Hollow Round

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OG857M Eagle Orange 85 --- 7mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.6 6 26.6 0.031 lbs 0.046 kg
L04C857M Eagle Clear 85 --- 7mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.6 6 26.6 0.031 lbs 0.046 kg
4999637 Eagle Green 89 --- 7mm 2.48" 63mm 3.9 17.4 6.4 28.6 8.8 39.3 11 49.1 0.031 lbs 0.046 kg
4905307 Eagle Green 89 Textured --- 7mm 2.48" 63mm 2.9 12.7 4.7 20.9 6.4 28.7 8.1 35.8 0.031 lbs 0.046 kg
L04R907 Eagle Red 90 --- 7mm 2.76" 70mm 12.9 57.4 18.6 82.7 23.4 104.1 27.4 121.8 0.031 lbs 0.047 kg
4941102 Eagle Blue 80 MD 5/16" --- 2.19" 56mm 2.1 9.4 3.3 14.5 4.3 19.3 5.5 24.3 0.037 lbs 0.055 kg
1032010 Eagle Orange 85 5/16" --- 2.5" 64mm 3 13.5 4.7 20.8 6.2 27.7 7.7 34.1 0.04 lbs 0.059 kg
4908015 Eagle Clear 85 5/16" --- 2.5" 64mm 3 13.5 4.7 20.8 6.2 27.7 7.7 34.1 0.04 lbs 0.059 kg
4934015 Eagle Clear 85 QC .313" x .126*" --- 2.5" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.7 0.034 lbs 0.05 kg
4934023 Eagle Yellow 85 QC .313" x .126*" --- 2.5" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.7 0.034 lbs 0.05 kg
4928006 Eagle Blue 80 EC --- 8mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.5 6.1 26.9 0.038 lbs 0.056 kg
4927006 Eagle Clear 80 EC --- 8mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.5 6.1 26.9 0.038 lbs 0.056 kg
L04OP808M Eagle Opaque 80 --- 8mm 2.2" 56mm 3.3 14.7 5.6 25 7.8 34.9 9.9 43.9 0.041 lbs 0.061 kg
L04OG858M Eagle Orange 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04C858 Eagle Clear 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04BL858M Eagle Blue 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04G898MS Eagle Green 89 --- 8mm 2.83" 72mm 5.1 22.8 8.4 37.4 11.5 51.3 14.4 64.1 0.04 lbs 0.06 kg
4905308 Eagle Green 89 Textured --- 8mm 2.83" 72mm 3.7 16.6 6.1 27.2 8.4 37.3 10.5 46.7 0.04 lbs 0.06 kg
4940024 Eagle Red 90 --- 8mm 3.15" 80mm 16.8 74.9 24.3 107.9 30.5 135.8 35.7 158.9 0.041 lbs 0.061 kg
L04BE958 Eagle Beige 95 --- 8mm 3.15" 80mm 13.6 60.5 19.3 85.7 24.1 107 28.1 125.1 0.042 lbs 0.062 kg
L04QC858M Eagle Clear 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.8 2 9 2.7 12.1 3.4 14.9 0.034 lbs 0.051 kg
L04QR858M Eagle Red 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.8 2 9 2.7 12.1 3.4 14.9 0.034 lbs 0.051 kg
L04QB858M Eagle Blue 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.6 0.034 lbs 0.051 kg
L04CON8S QC Connectors 25/pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
