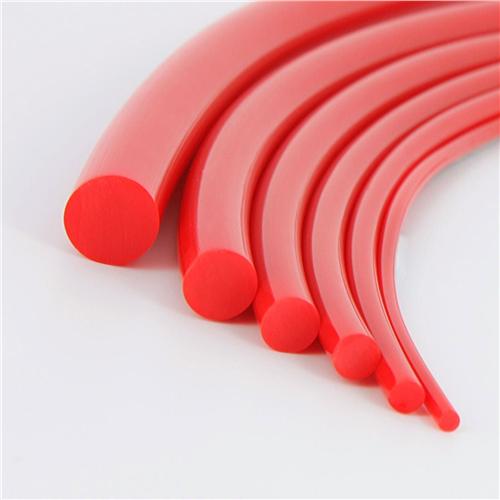

L04R907 by Fenner Drives | Eagle 90 Round Belting | 7mm Diameter | Non-Reinforced | Red | 100ft
Fenner Drives

L04R907 by Fenner Drives | Eagle 90 Round Belting | 7mm Diameter | Non-Reinforced | Red | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • Eagle Red 90 Non-Reinforced Round Belting is constructed of solid polyurethane with a 90 Shore A durometer that provides extremely high abrasion resistance. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Red 90 Non-Reinforced Round Belts offer the hardest durometer and best abrasion resistance of any Fenner Drives Eagle polyurethane belts. The solid 90A durometer gives you the strength and durability your conveying application needs. If you have a heavy load carrying problem-we have a simple solution! Eagle Red 90 Non-Reinforced Round will not disappoint!

    Best Suited For: Medium to heavy duty conveying applications that require the best abrasion resistance you can get in a polyurethane round belt profile.

  • 90 Shore A durometer polyurethane belting
  • Solid polyurethane construction
  • Superior abrasion resistance
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Red 90 Non-Reinforced Round belt is the dependable choice for your toughest material transfer applications. Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Red 90 Non-Reinforced Round Belts are easily welded on-site with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 10mm, 12.5mm, 12mm, 15mm, 2mm, 3/16", 3/8", 3mm, 4mm, 5mm, 6.3mm, 6mm, 7mm, 8mm, 9.5mm, 9/16"
Reinforcement: None Color: Red
Compliancy: REACH, RoHS Durometer: 90A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OG857M Eagle Orange 85 --- 7mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.6 6 26.6 0.031 lbs 0.046 kg
L04C857M Eagle Clear 85 --- 7mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.6 6 26.6 0.031 lbs 0.046 kg
4999637 Eagle Green 89 --- 7mm 2.48" 63mm 3.9 17.4 6.4 28.6 8.8 39.3 11 49.1 0.031 lbs 0.046 kg
4905307 Eagle Green 89 Textured --- 7mm 2.48" 63mm 2.9 12.7 4.7 20.9 6.4 28.7 8.1 35.8 0.031 lbs 0.046 kg
L04R907 Eagle Red 90 --- 7mm 2.76" 70mm 12.9 57.4 18.6 82.7 23.4 104.1 27.4 121.8 0.031 lbs 0.047 kg
4941102 Eagle Blue 80 MD 5/16" --- 2.19" 56mm 2.1 9.4 3.3 14.5 4.3 19.3 5.5 24.3 0.037 lbs 0.055 kg
1032010 Eagle Orange 85 5/16" --- 2.5" 64mm 3 13.5 4.7 20.8 6.2 27.7 7.7 34.1 0.04 lbs 0.059 kg
4908015 Eagle Clear 85 5/16" --- 2.5" 64mm 3 13.5 4.7 20.8 6.2 27.7 7.7 34.1 0.04 lbs 0.059 kg
4934015 Eagle Clear 85 QC .313" x .126*" --- 2.5" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.7 0.034 lbs 0.05 kg
4934023 Eagle Yellow 85 QC .313" x .126*" --- 2.5" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.7 0.034 lbs 0.05 kg
4928006 Eagle Blue 80 EC --- 8mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.5 6.1 26.9 0.038 lbs 0.056 kg
4927006 Eagle Clear 80 EC --- 8mm 2.2" 56mm 2.4 10.5 3.6 16.2 4.8 21.5 6.1 26.9 0.038 lbs 0.056 kg
L04OP808M Eagle Opaque 80 --- 8mm 2.2" 56mm 3.3 14.7 5.6 25 7.8 34.9 9.9 43.9 0.041 lbs 0.061 kg
L04OG858M Eagle Orange 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04C858 Eagle Clear 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04BL858M Eagle Blue 85 --- 8mm 2.52" 64mm 3.1 13.7 4.7 21.1 6.3 28.1 7.8 34.7 0.041 lbs 0.06 kg
L04G898MS Eagle Green 89 --- 8mm 2.83" 72mm 5.1 22.8 8.4 37.4 11.5 51.3 14.4 64.1 0.04 lbs 0.06 kg
4905308 Eagle Green 89 Textured --- 8mm 2.83" 72mm 3.7 16.6 6.1 27.2 8.4 37.3 10.5 46.7 0.04 lbs 0.06 kg
4940024 Eagle Red 90 --- 8mm 3.15" 80mm 16.8 74.9 24.3 107.9 30.5 135.8 35.7 158.9 0.041 lbs 0.061 kg
L04BE958 Eagle Beige 95 --- 8mm 3.15" 80mm 13.6 60.5 19.3 85.7 24.1 107 28.1 125.1 0.042 lbs 0.062 kg
L04QC858M Eagle Clear 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.8 2 9 2.7 12.1 3.4 14.9 0.034 lbs 0.051 kg
L04QR858M Eagle Red 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.8 2 9 2.7 12.1 3.4 14.9 0.034 lbs 0.051 kg
L04QB858M Eagle Blue 85 QC --- 8 x 3.2mm* 2.52" 64mm 1.3 5.7 2 8.9 2.7 11.9 3.3 14.6 0.034 lbs 0.051 kg
L04CON8S QC Connectors 25/pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
