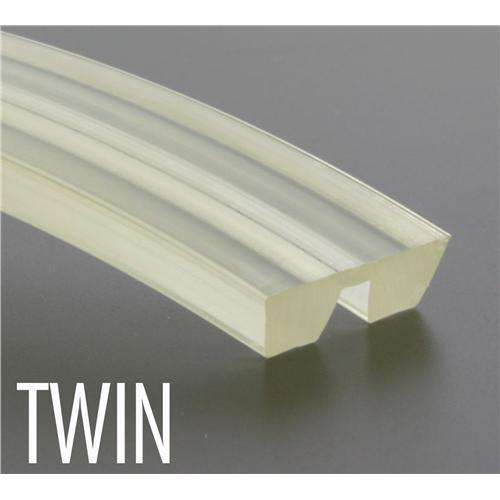

4912065 by Fenner Drives | Eagle 85 V Belt | Cross Section: 3L Twin | 15/16" w x 17/64" h | Non-Reinforced | Clear | 100ft
Fenner Drives

4912065 by Fenner Drives | Eagle 85 V Belt | Cross Section: 3L Twin | 15/16" w x 17/64" h | Non-Reinforced | Clear | 100ft

Sale price$879.85
Fenner Drives - Conveying - V Belting - Z/10, 3L Cross Sections - Non-Reinforced

Package Quantity: 100 FT

In stock

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Clear 85 Non-Reinforced Vee Belting is constructed of solid polyurethane with an 85 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m length.
Description:
  • Eagle Clear 85 Non-Reinforced Vee Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 85 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a vee profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • 85 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant
  • Solid polyurethane construction


    • The proven workhorses! Eagle Clear 85 Non-Reinforced Vee belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Clear Non-Reinforced Vee belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Lo-Ridge Top, T-Top, Twin, Vee Profile Size: 3L, A/13, B/17, C/22
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
1032030 Eagle Orange 85 3L 3/8" x 7/32" --- 1.75" 44mm 2.1 9.5 3.6 16.1 5.1 22.6 6.4 28.6 0.035 lbs 0.053 kg
4912063 Eagle Clear 85 3L 3/8" x 7/32" --- 1.75" 44mm 2.2 9.7 3.7 16.5 5.2 23.1 6.6 29.3 0.035 lbs 0.053 kg
L04BL853L Eagle Blue 85 3L 3/8" x 7/32" --- 1.75" 45mm 2.1 9.5 3.6 16.1 5.1 22.6 6.4 28.6 0.035 lbs 0.053 kg
4911063 Eagle Clear 95 3L 3/8" x 7/32" --- 2.19" 56mm 4 17.9 6.6 29.2 8.8 39.3 10.8 47.9 0.036 lbs 0.054 kg
1032032 Eagle Orange 85 3L Crown-Top 9/16" x 1/4" --- 2" 51mm 3 13.2 5 22.4 7.1 31.5 9 39.9 0.049 lbs 0.073 kg
1032031 Eagle Orange 85 3L T-Top 9/16" x 19/64" --- 2.38" 60mm 3.5 15.7 6 26.5 8.4 37.2 10.6 47.2 0.058 lbs 0.087 kg
4912064 Eagle Clear 85 3L T-Top 9/16" x 19/64" --- 2.38" 60mm 3.6 16.1 6.1 27.2 8.6 38.2 10.9 48.3 0.058 lbs 0.087 kg
1032033 Eagle Orange 85 3L Twin 15/16" x 17/64" --- 2.13" 54mm 5.9 26.2 10 44.5 14 62.4 17.8 79 0.098 lbs 0.145 kg
4912065 Eagle Clear 85 3L Twin 15/16" x 17/64" --- 2.13" 54mm 6 26.9 10.2 45.6 14.4 63.9 18.2 81 0.098 lbs 0.145 kg
4911065 Eagle Clear 95 3L Twin 15/16" x 17/64" --- 2.5" 64mm 11.1 49.5 18.1 80.6 24.4 108.5 29.7 132.2 0.1 lbs 0.149 kg
4940008 Eagle Opaque 80 Z/10 --- 10 x 6.5mm 1.79" 46mm 2.5 11.3 5.2 23.3 8.3 36.8 11.1 49.5 0.041 lbs 0.062 kg
4940114 Eagle Orange 85 Z/10 --- 10 x 6.5mm 1.88" 52mm 2.5 10.9 4.2 18.5 5.8 26 7.4 32.9 0.041 lbs 0.061 kg
4940118 Eagle Clear 85 Z/10 --- 10 x 6.5mm 2.05" 52mm 2.5 11.2 4.3 19 6 26.6 7.6 33.7 0.041 lbs 0.061 kg
4940118 Eagle Ivory 85 Z/10 --- 10 x 6.5mm 2.05" 52mm 6.9 30.8 10.6 47 13.9 61.7 16.8 74.8 0.04 lbs 0.06 kg
L04BL85Z Eagle Blue 85 Z/10 --- 10 x 6.5mm 1.88" 52mm 2.5 10.8 4.2 18.3 5.8 25.6 7.4 32.5 0.041 lbs 0.061 kg
L04G89Z Eagle Green 89 Z/10 --- 10 x 6.5mm 2.3" 59mm 12.4 55.3 19 84.5 24.9 110.6 30 133.4 0.04 lbs 0.06 kg
4940028 Eagle Clear 85 Z/10 --- 10 x 6.5mm 2.5" 65mm 16.9 75.2 24.3 108.3 30.6 136.3 35.9 159.5 0.041 lbs 0.061 kg
