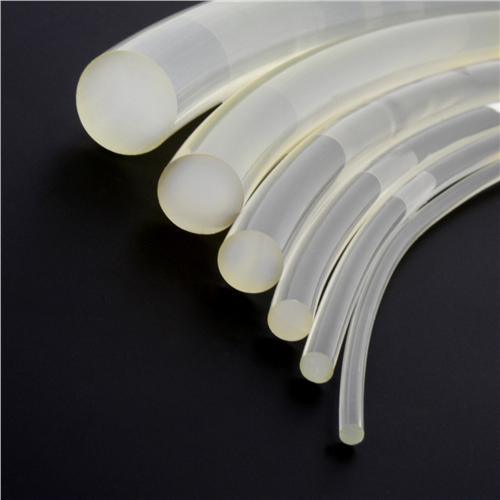

4908027 by Fenner Drives | Eagle 85 Round Belting | 9/16" Diameter | Non-Reinforced | Clear | 100ft

4908027 by Fenner Drives | Eagle 85 Round Belting | 9/16" Diameter | Non-Reinforced | Clear | 100ft

Sale price$767.80
Fenner Drives - Conveying - Round Belting - 13mm, 9/16" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $721.73
15–29 $652.63
30+ $575.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Clear 85 Non-Reinforced Round Belting is constructed of solid polyurethane with an 85 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Clear 85 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 85 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a round profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 80 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Clear 85 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Clear Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 2mm, 3/16", 3/32", 3/4", 3/8", 3mm, 4mm, 5/16", 5/8", 5mm, 6mm, 7mm, 8mm, 9/16"
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4941106 Eagle Blue 80 MD 9/16" --- 3.94" 100mm 6.9 30.6 10.6 47.1 14.2 63 17.6 78.2 0.121 lbs 0.18 kg
L04OG8510M Eagle Orange 85 9/16" --- 4.5" 114mm 9.8 43.7 15.1 67.3 20.2 89.8 24.9 110.6 0.129lbs 0.192 kg
4908027 Eagle Clear 85 9/16" --- 4.5" 114mm 9.8 43.7 15.1 67.3 20.2 89.8 24.9 110.6 0.129lbs 0.192 kg
4940036 Eagle Red 90 9/16" --- 5.63" 143mm 53.7 238.6 77.3 343.8 97.3 432.7 113.8 506.3 0.13lbs 0.194 kg
L04G8910MS Eagle Clear 95 9/16" --- 5.63" 143mm 18.4 81.7 27.3 121.3 35 155.8 41.7 185.3 0.133lbs 0.197 kg
L04CON13S QC Connectors 20/pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
