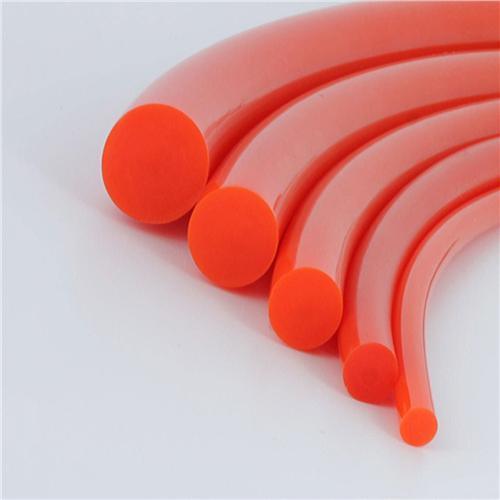

1032018 Fenner Drives Eagle Orange 85 Round Belting - 9/16" Diameter - Non-Reinforced - 100ft - Beltsmart

1032018 by Fenner Drives | Eagle 85 Round Belting | 9/16" Diameter | Non-Reinforced | Orange | 100ft

Sale price$731.62
Fenner Drives - Conveying - Round Belting - 13mm, 9/16" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $687.72
15–29 $621.88
30+ $548.72
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Orange 85 Non-Reinforced Round Belting is constructed of solid polyurethane with an 85 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • The Original Orange belt! Eagle Orange 85 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 85 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a Round belt.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 85 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 10mm, 12mm, 13mm, 2mm, 3/16", 3/32", 3/4", 3/8", 3mm, 4mm, 5/16", 5/8", 5mm, 6mm, 7mm, 8mm, 9/16"
Reinforcement: None Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5mA

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4941106 Eagle Blue 80 MD 9/16" --- 3.94" 100mm 6.9 30.6 10.6 47.1 14.2 63 17.6 78.2 0.121 lbs 0.18 kg
L04OG8510M Eagle Orange 85 9/16" --- 4.5" 114mm 9.8 43.7 15.1 67.3 20.2 89.8 24.9 110.6 0.129lbs 0.192 kg
4908027 Eagle Clear 85 9/16" --- 4.5" 114mm 9.8 43.7 15.1 67.3 20.2 89.8 24.9 110.6 0.129lbs 0.192 kg
4940036 Eagle Red 90 9/16" --- 5.63" 143mm 53.7 238.6 77.3 343.8 97.3 432.7 113.8 506.3 0.13lbs 0.194 kg
L04G8910MS Eagle Clear 95 9/16" --- 5.63" 143mm 18.4 81.7 27.3 121.3 35 155.8 41.7 185.3 0.133lbs 0.197 kg
L04CON13S QC Connectors 20/pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
