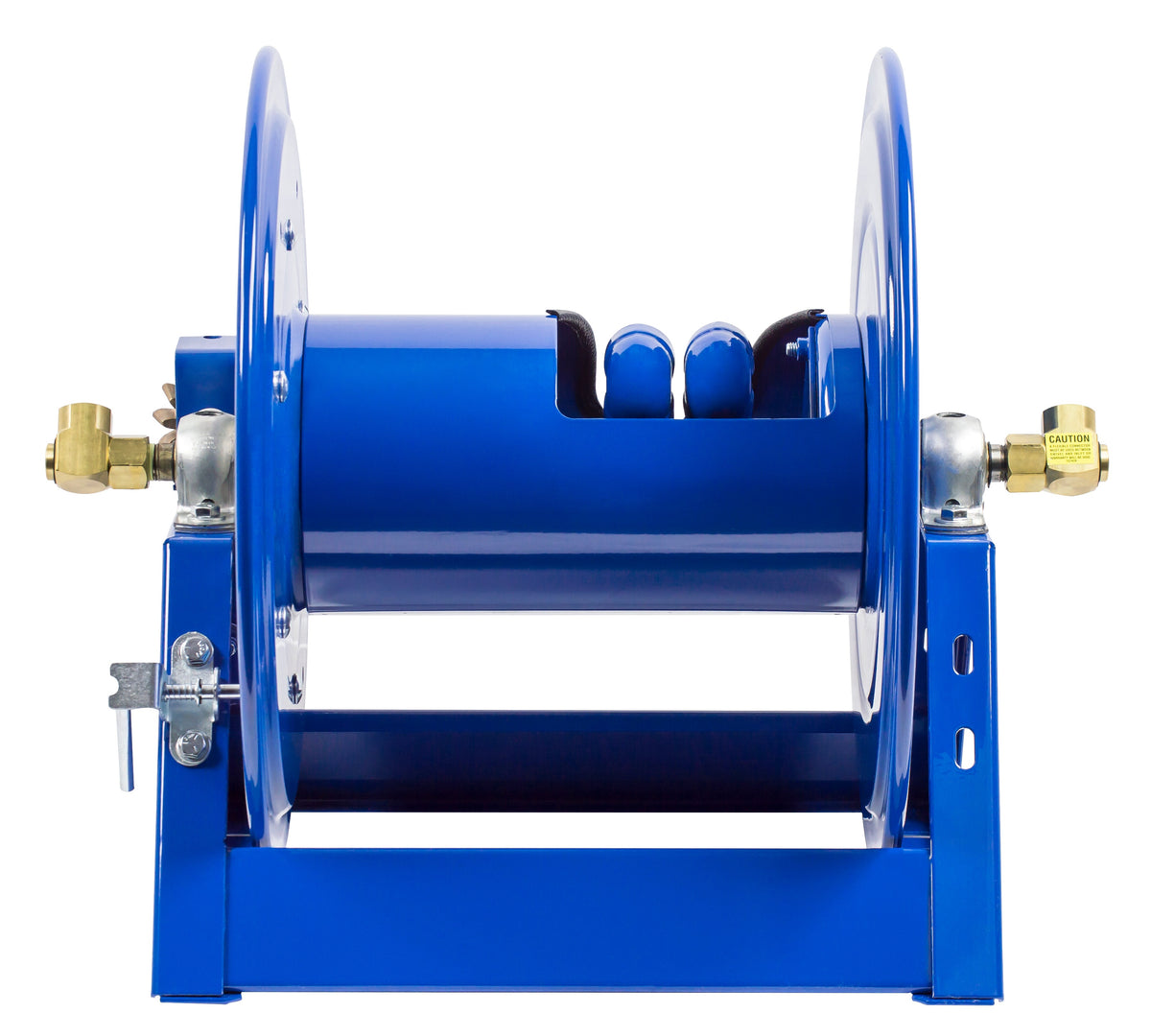

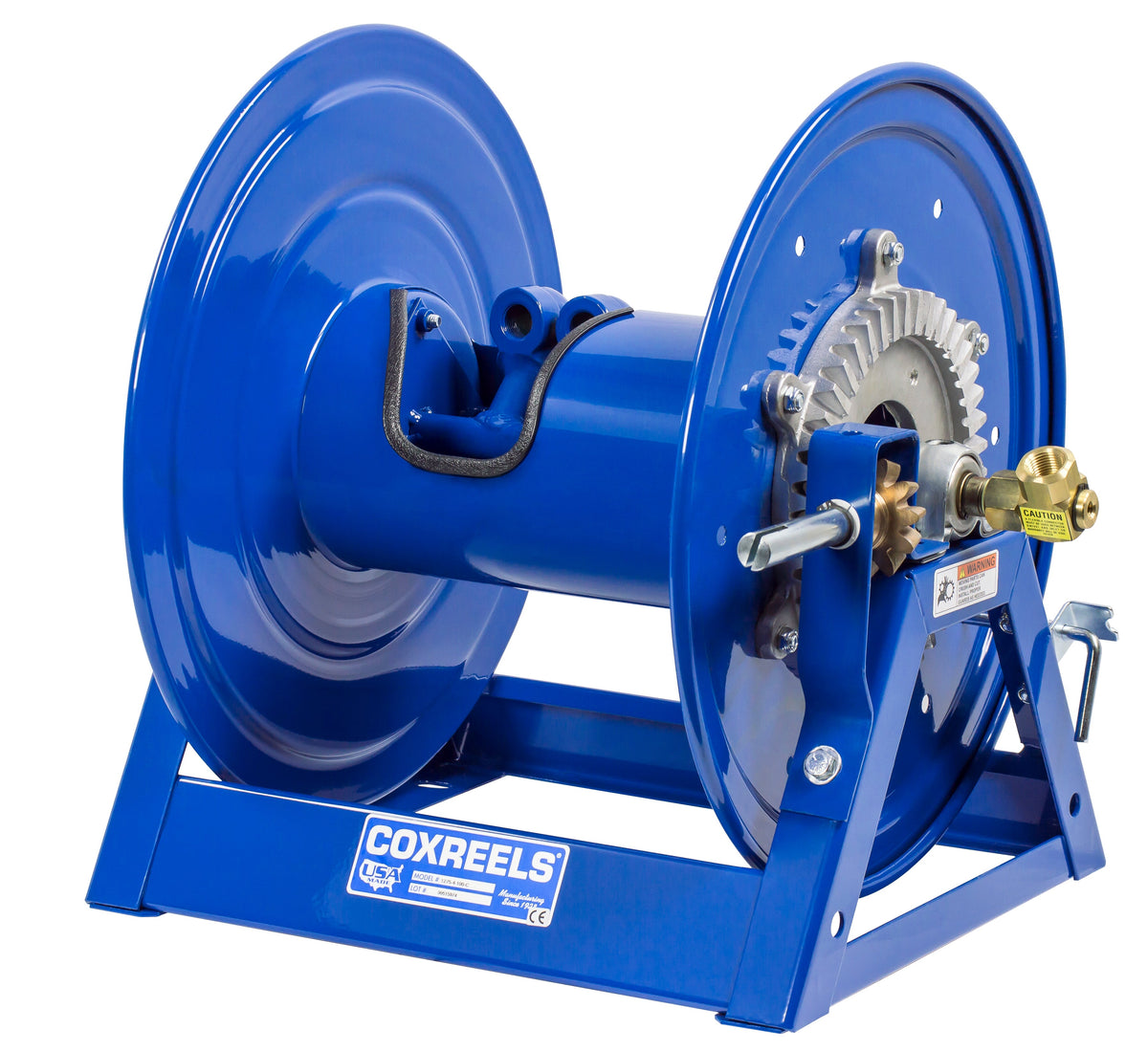

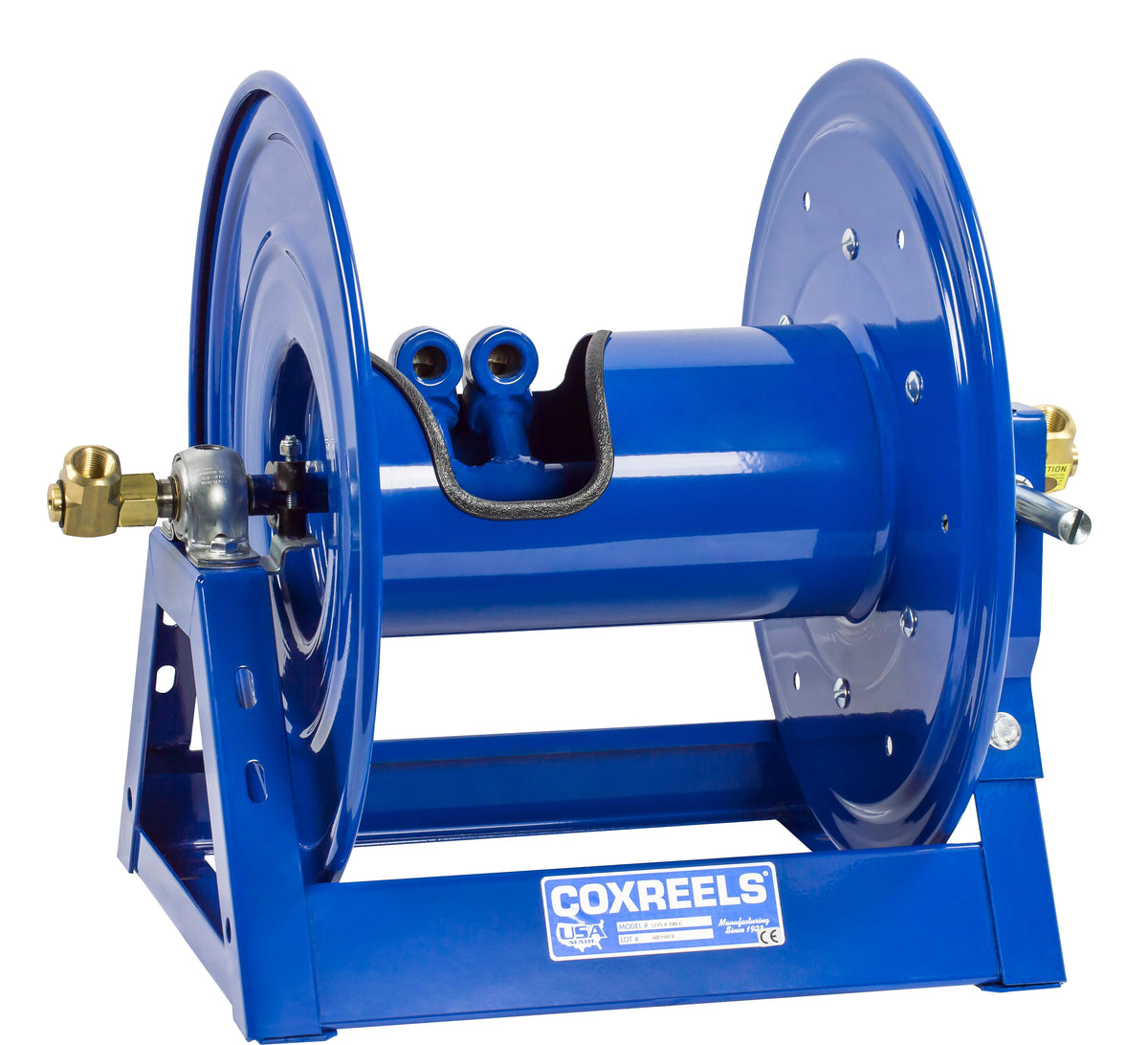

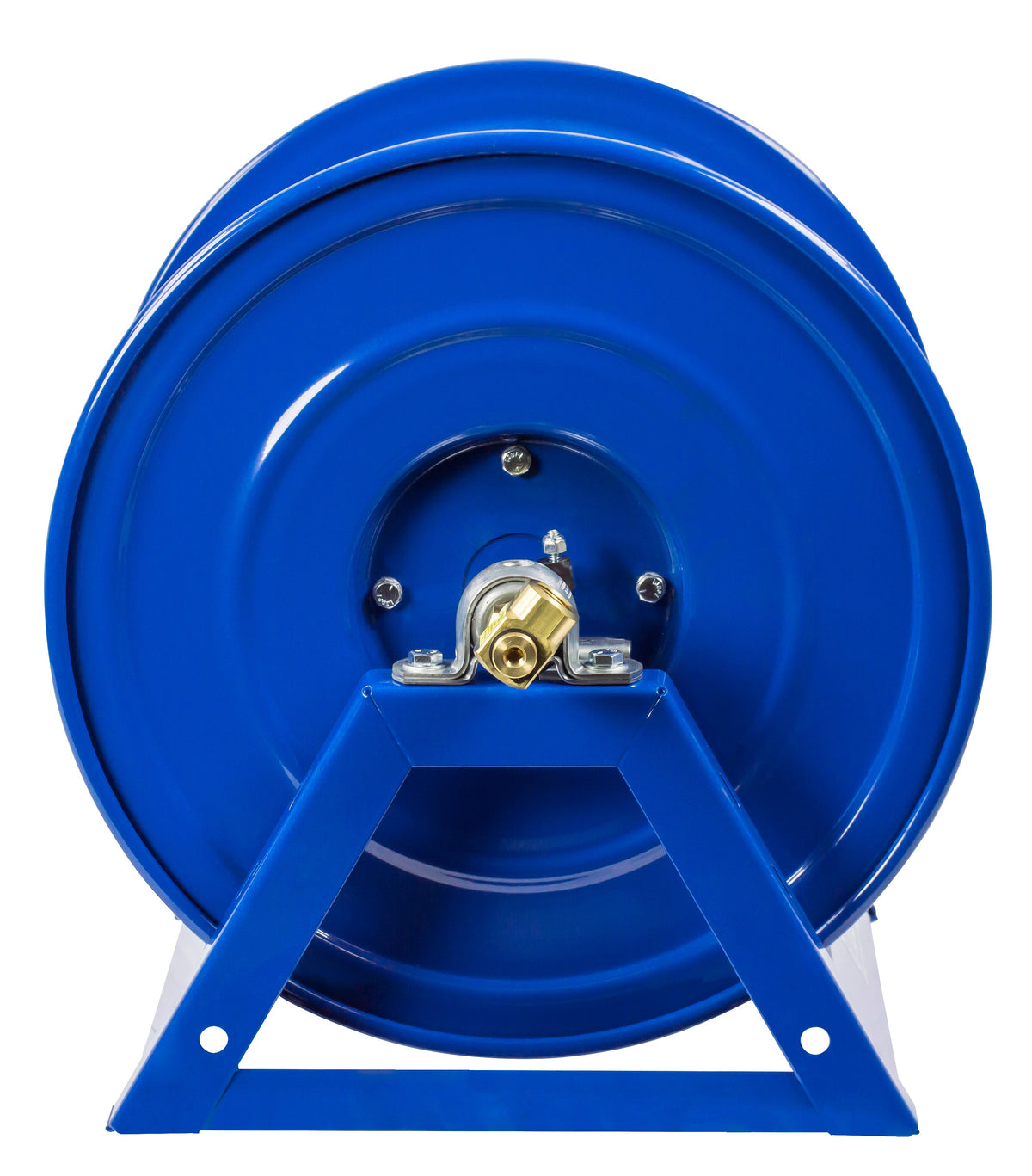

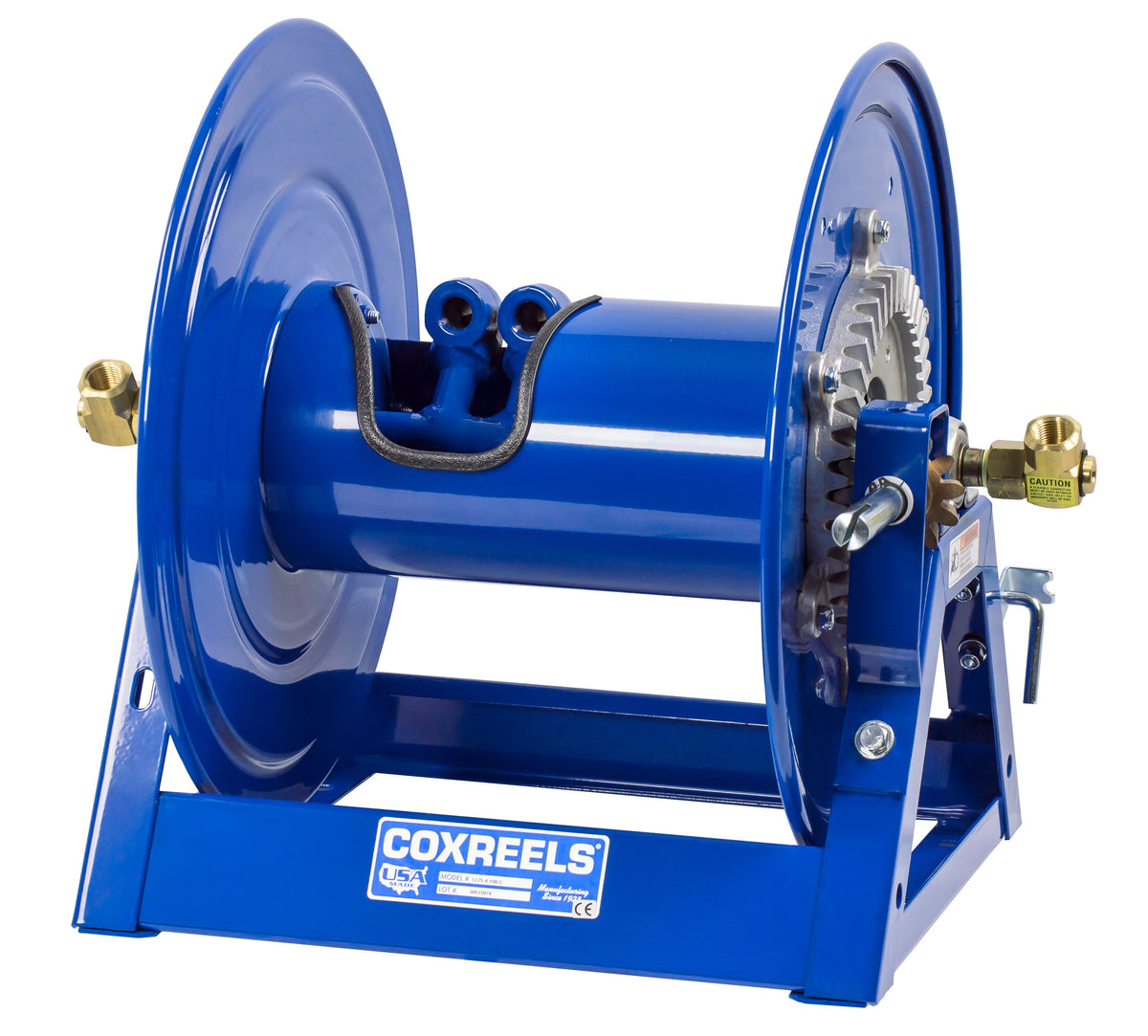

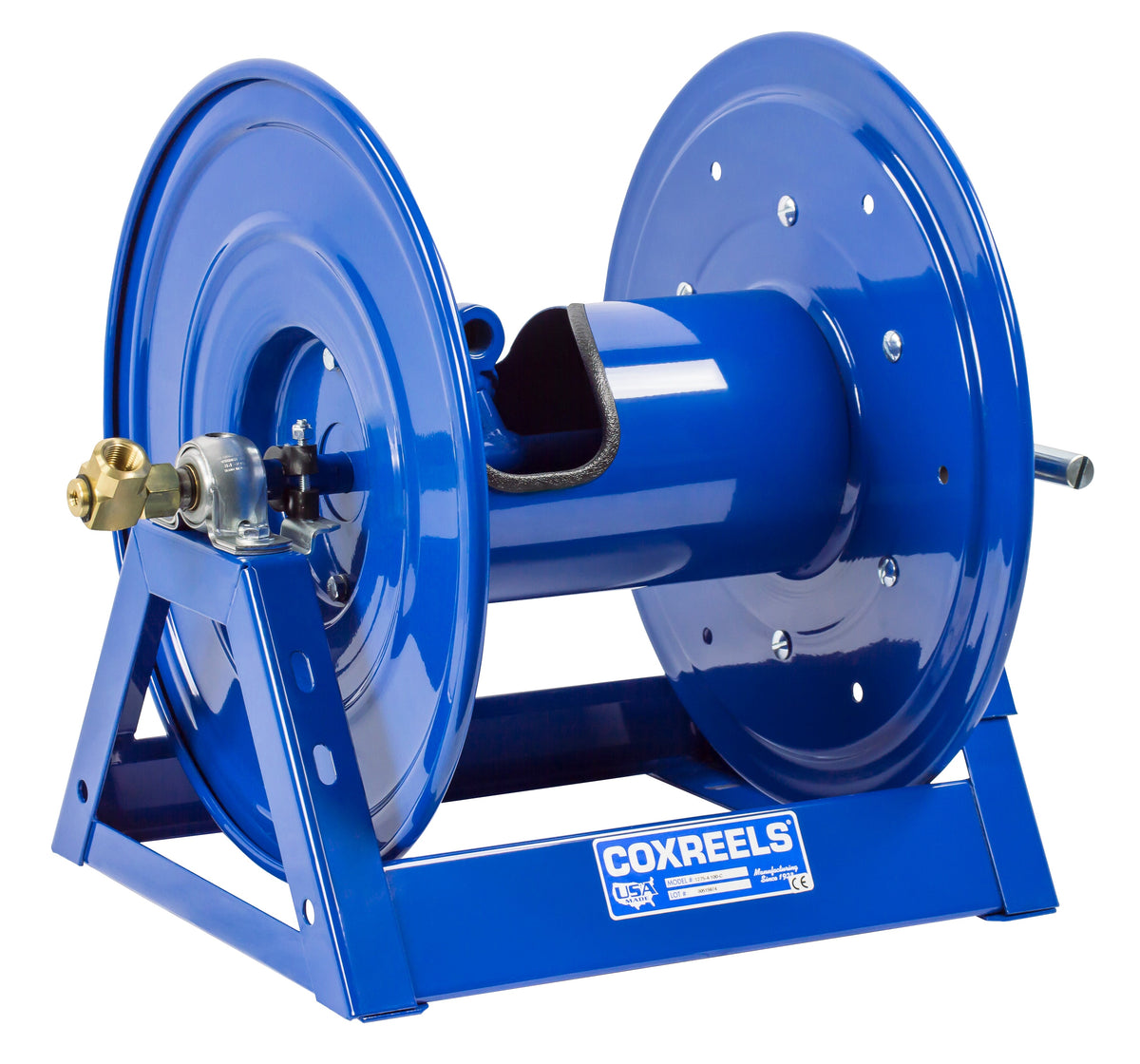

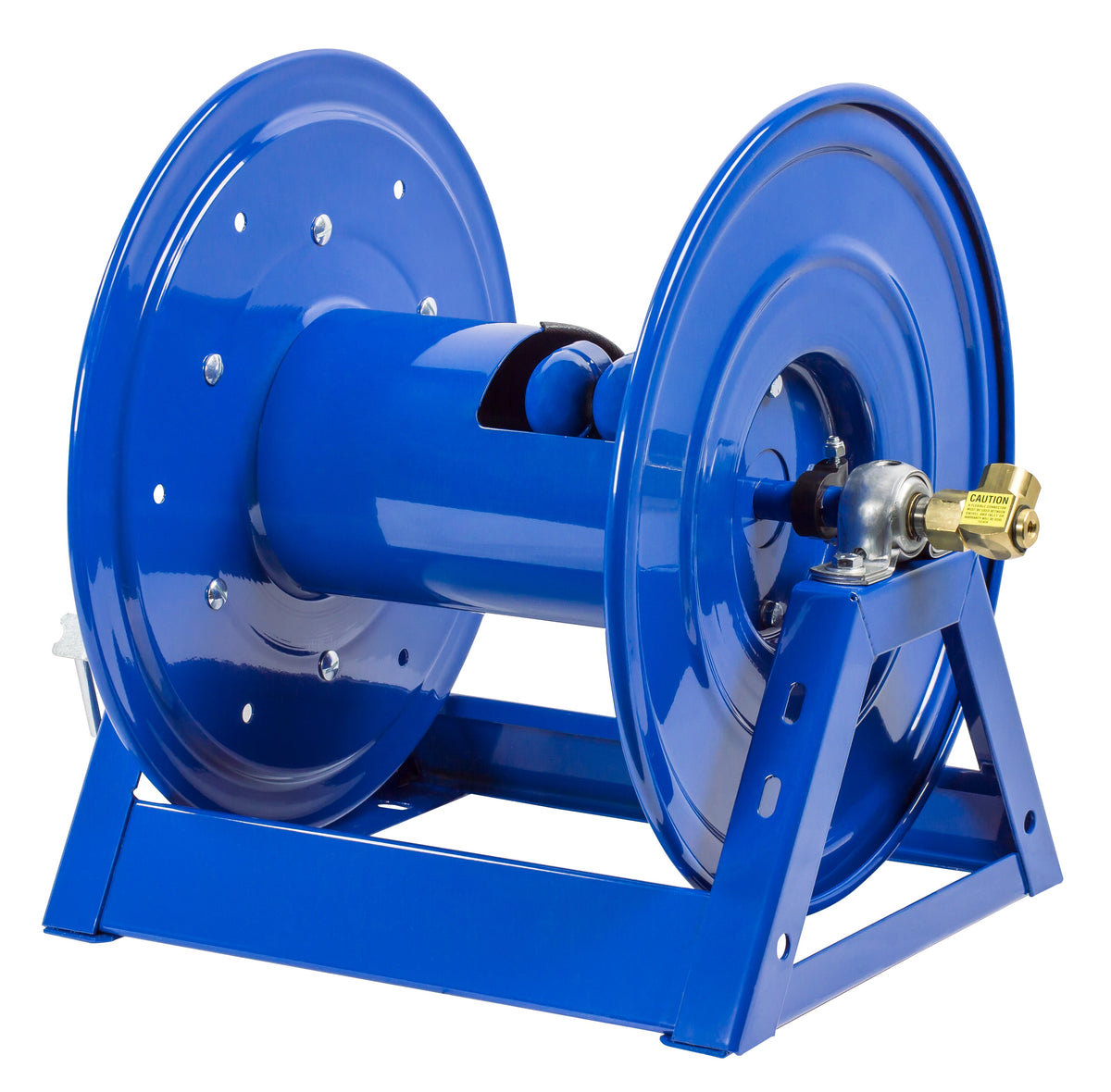

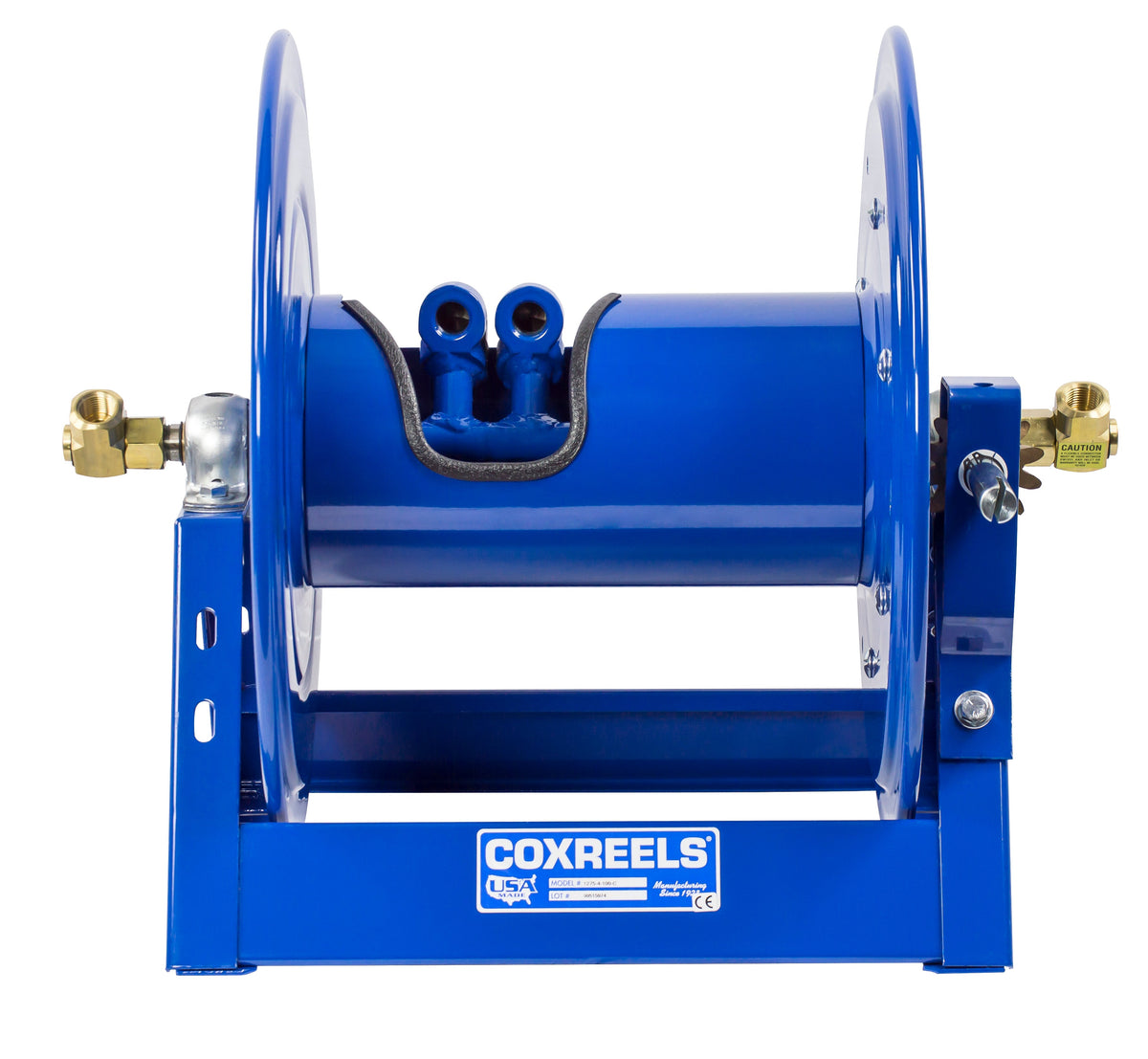

1275-4-200-C by Coxreels | 1275 Series | 3,000 PSI Dual Hose Hand Crank Hose Reel | 1/2" Hose ID, 1/2" FNPT Inlet | Steel | 200ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel

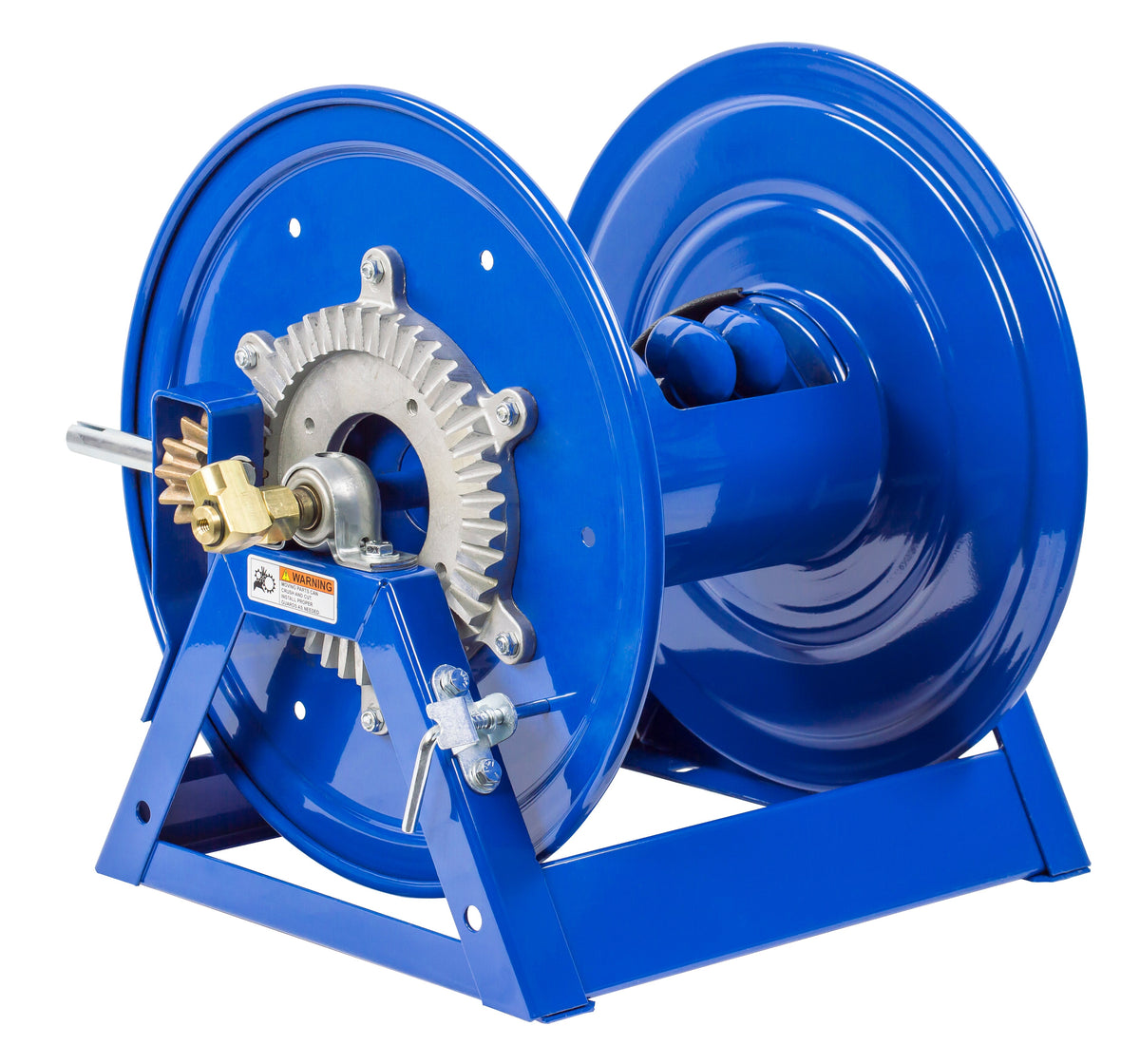

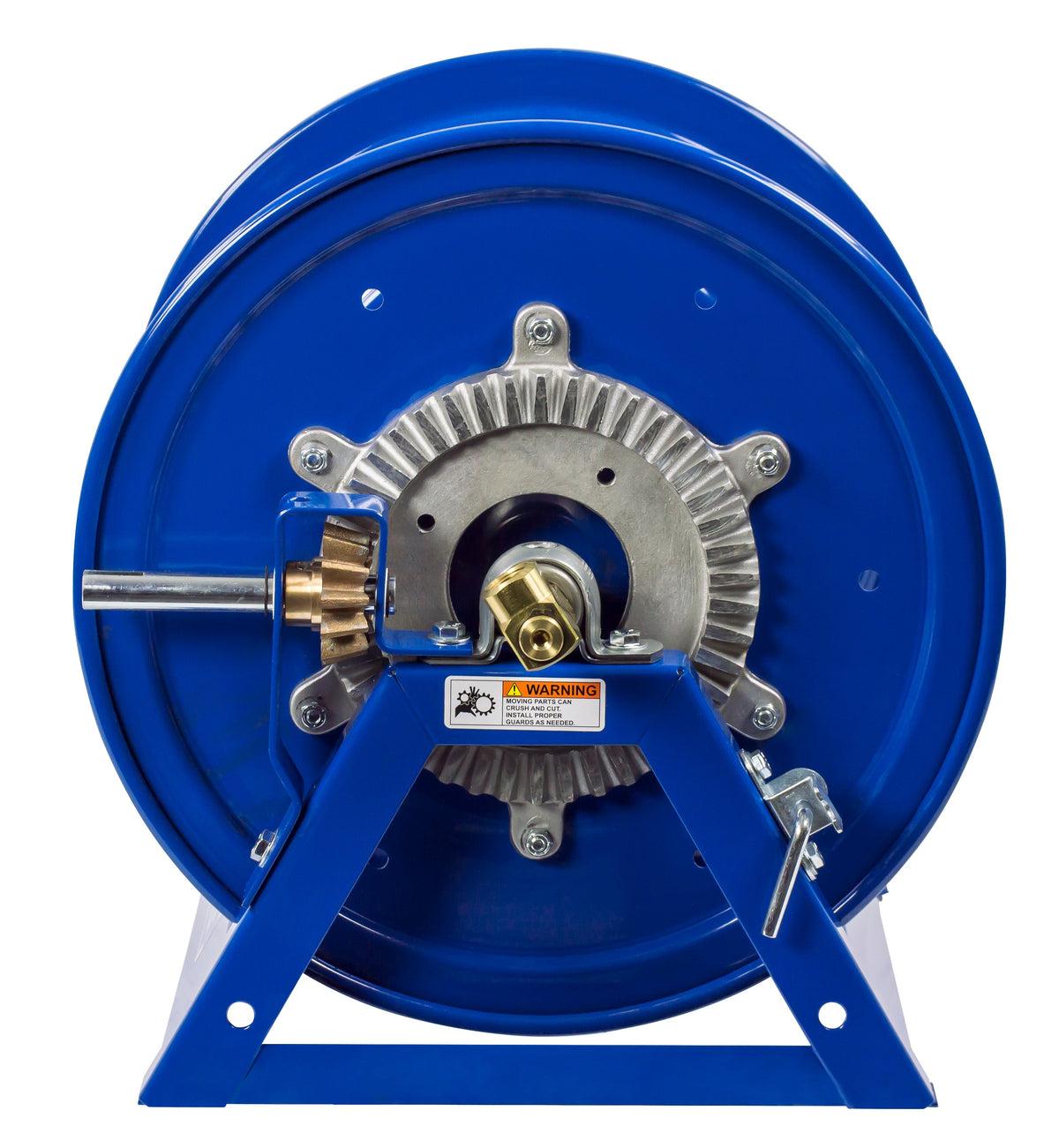

Coxreels 1275 Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for dual product delivery, dual hydraulics and twin agent, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Dual Product Delivery
- Dual Hydraulics
- Twin Agent
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Brass 90° full-flow with Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Two machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Two exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1275-4-50-C | 1/2" | 50 ft | 3,000 | 8" | 18.875 × 18.625 × 17.625 |
| 1275-4-100-C | 1/2" | 100 ft | 3,000 | 12" | 22.875 × 18.625 × 17.625 |
| 1275-4-150-C | 1/2" | 150 ft | 3,000 | 18" | 28.875 × 18.625 × 17.625 |
| 1275-4-200-C | 1/2" | 200 ft | 3,000 | 24" | 34.875 × 18.625 × 17.625 |
| 1275-6-50-C | 1" | 50 ft | 3,000 | 13.5" | 29 × 22.875 × 20 |
| 1275-6-75-C | 1" | 75 ft | 3,000 | 13.5" | 29 × 26.125 × 24 |
| 1275-6-100-C | 1" | 100 ft | 3,000 | 20" | 35.625 × 26.125 × 24 |
| 1275-6-150-C | 1" | 150 ft | 3,000 | 20" | 35.625 × 30 × 28 |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 8" | 12" | 13.5" | 18" | 20" | 24" |
|---|---|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-8 | 15362-12 | 15362-13.5 | 15362-18 | 15362-20 | 15362-24 |
| 3-way roller bracket, top rewind | 15359-8 | 15359-12 | — | 15359-18 | 15359-20 | 15359-24 |
| 4-way roller bracket, bottom rewind | 15354-8 | 15354-12 | 15354-13.5 | 15354-18 | 15354-20 | 15354-24 |
| 4-way roller bracket, top payout, ceiling mount applications | 15358-8 | 15358-12 | 15356-13.5 | 15358-18 | 15356-20 | 15358-24 |
| 4-way roller bracket, top rewind | 15355-8 | 15355-12 | 15357-13.5 | 15355-18 | 15357-20 | 15355-24 |
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts — fit every model | ||
| 20843 | Spring Loaded Lock Pin | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BTXX | Stainless steel plumbing & SS 90° ball bearing swivel with food grade (304SS) |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BJXX / -BKXX | Standard plumbing & 90˚ stainless steel swivel: Aflas / Viton |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BXCX / -BXCF | Top payout, on reel: bevel crank right / bevel crank left |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFF / -BXFX | Bottom payout, on reel: bevel crank right / bevel crank left |
| 3-way roller position | |
| -BXEX / -BXEF | Top payout, on reel: bevel crank right / bevel crank left |
| -BXHF / -BXHX | Bottom payout, on reel: bevel crank right / hand crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout bevel crank, swivel left, crank right |
| -BXAF | Top payout bevel crank, swivel right, crank left |
| -BXAF | Bottom payout bevel crank, swivel left, crank right |
| -BXXX | Bottom payout bevel crank, swivel right, crank left |
| -BXAF | Bottom payout motorized standard, swivel left, motor left |
| -BXXX | Bottom payout motorized standard, swivel right, motor right |
| -BXAG | Bottom payout motorized offset motor, swivel left, motor left front |
| -BXXD | Bottom payout motorized offset motor, swivel right, motor right rear |
7
Where can I find product documents?
1275 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
