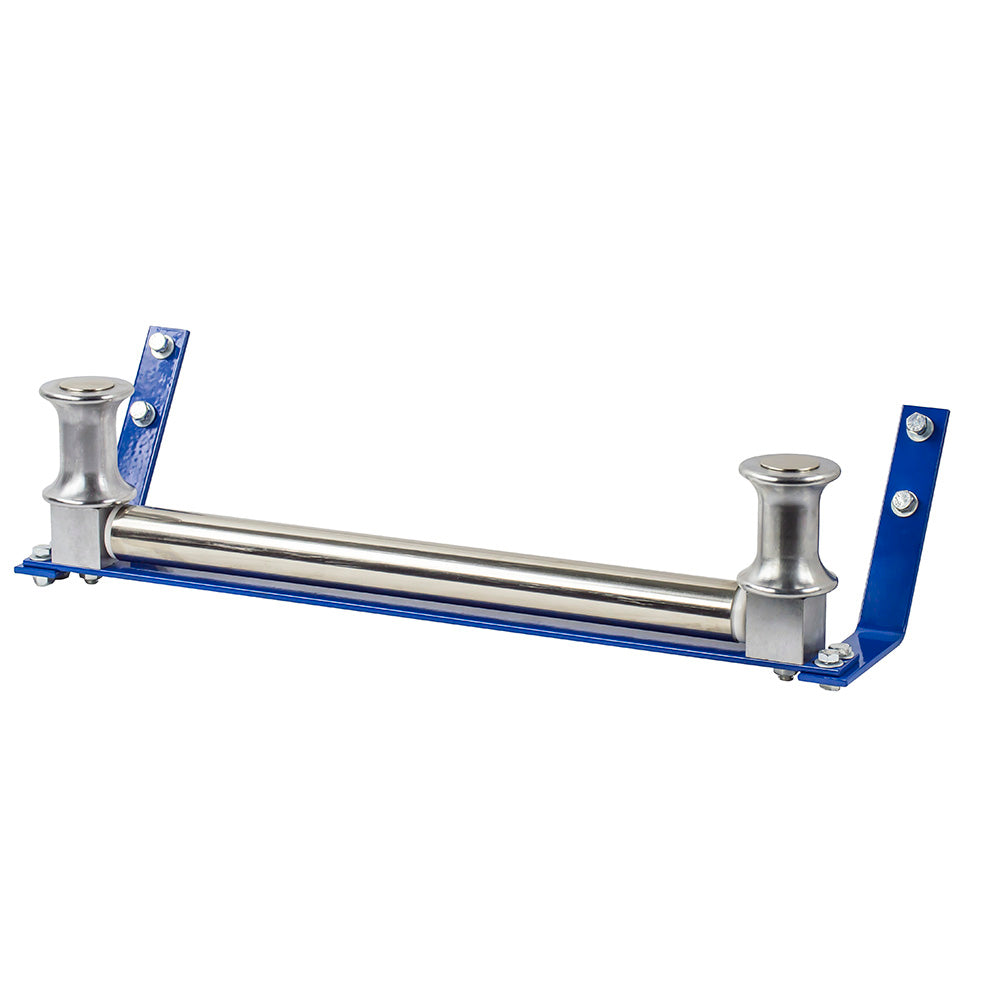

Coxreels 3-Way Bottom Roller Bracket
Bottom-rewind 3-way open-spool roller bracket for hand crank and motorized hose reels.
What are the main product features?
- 1.5" chrome-plated machined steel spools
- 1.5" stainless steel bottom roller
- Powder coated steel brackets; sized by drum width
Which part numbers are available?
Order the part number whose drum width matches your reel's drum width.
| Part Number | Drum Width | Fits |
|---|---|---|
| 15362-6 | 6" | 1125 Pure Flow, 1125, 1125WCL, HP1125 |
| 15362-8 | 8" | 1125 Pure Flow, 1125PCL, 1275, 1275HP, 1275W |
| 15362-9.5 | 9.5" | 1125 |
| 15362-12 | 12" | 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage |
| 15362-13.5 | 13.5" | 1275 |
| 15362-15.5 | 15.5" | 1125 |
| 15362-18 | 18" | 1125, 1275, 1275W, HP1125, Storage |
| 15362-20 | 20" | 1275 |
| 15362-22 | 22" | 1125 |
| 15362-24 | 24" | 1125, 1275, 1275W, HP1125 |
| 15362-28 | 28" | 1125, HP1125, Storage |
| 15363-7.5 | 7.5" | 1175 |
| 15363-11.5 | 11.5" | 1175, 1185, 1185-BUXX, Storage |
| 15363-13.5 | 13.5" | 1175 |
| 15363-15.5 | 15.5" | 1175, 1185, 1185-BUXX |
| 15363-20 | 20" | 1175, 1185, 1185-BUXX, Storage |
| 15363-25 | 25" | 1185, 1185-BUXX |
| 15363-33 | 33" | 1185, 1185-BUXX |
| 15364-20 | 20" | Storage |
| 15364-33 | 33" | Storage |
