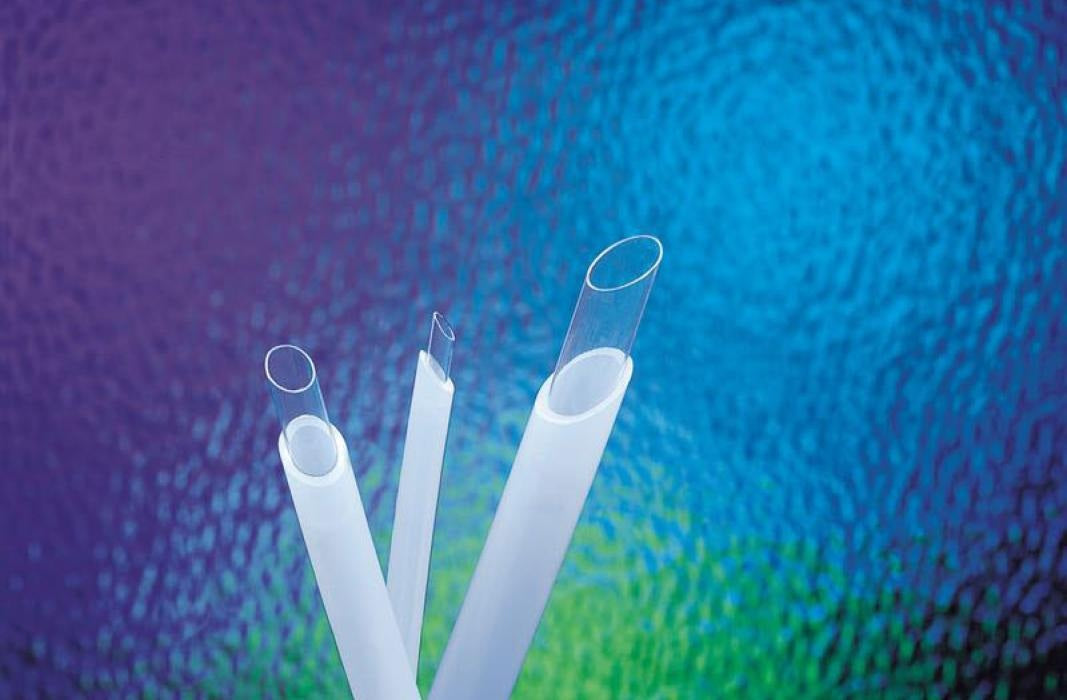

Versilon® Duality | Multi-Purpose, High Purity Fluoropolymer Lined Tubing
Versilon® Duality flexible tubing for fluid transfer from Saint-Gobain is a fluoropolymer-lined, versatile, high-purity product designed to handle a variety of fluid transfer applications.
Its excellent chemical and alcohol resistance makes it ideal for chemical transfer, brewing and distilling processes, liquor dispensing, and photo developing equipment.
Package Quantity: 50 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $96.35 |
| 20–59 | $87.13 |
| 60+ | $82.00 |
Versilon® Duality Multi-Purpose, High Purity Fluoropolymer Lined Tubing
Lightweight and easy to install, Versilon® Duality tubing offers outstanding flex life, cleans easily and stands up well to low-temperature environments. No special fittings are required for Versilon® Duality tubing.
1
What is this product used for?
- Liquor dispensing systems
- Photo development
- Environmental sampling tubes
- Bottle-filling equipment
- Brewing and distilling processes
2
What are the key specifications?
Fluoropolymer
FDA-Approved Resins
None
Translucent
+179°F (82°C)
-26°F (-32°C)
FDA Approved
Not intended as an implant material!
3
What are the main product features?
- Fluoropolymer lined construction.
- Purity assured.
- No plasticizers, fillers, or VCM.
- Excellent alcohol and chemical resistance.
- Rapid installation.
- Translucent.
- No liquid absorption.
- No odor or taste contamination.
- No special fittings required.
- Jacket and liner made from FDA-approved resins.
- Flexible.
- Lightweight.
4
Which sizes or configurations are available?
| Part Number (50ft Lengths) |
Part Number (100ft Lengths) |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Burst Pressure (PSI)* |
|---|---|---|---|---|---|---|
| TSFE4-125250PL1-50 | TSFE4-125250PL1.10 | 1/8" | 1/4" | .010" | 1" | 900 PSI |
| TSFE4-187312PL2-50 | TSFE4-187312PL2.10 | 3/16" | 1/4" | .010" | 1-1/4" | 350 PSI |
| TSFE4-250312PL4-50 | TSFE4-250312PL4.10 | 1/4" | 5/16" | .010" | 6" | 300 PSI |
| TSFE4-250375PL5-50 | TSFE4-250375PL5.10 | 1/4" | 3/8" | .010" | 1-1/2" | 600 PSI |
| TSFE4-375437PL7-50 | TSFE4-375437PL7.10 | 3/8" | 7/16" | .012" | 4" | 200 PSI |
| TSFE4-375500PL8-50 | TSFE4-375500PL8.10 | 3/8" | 1/2" | .012" | 4" | 350 PSI |
| TSFE4-500625PL9-50 | TSFE4-500625PL9.10 | 1/2" | 5/8" | .015" | 6" | 250 PSI |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon™ Duality Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
