TSFE4.187312PL2.10 Versilon™ Duality by Saint Gobain | Multi-Purpose High Purity Tubing Fluoropolymer Lined Tubing | 3/16" ID x 1/4" OD x .010" Wall | 100' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Fluoropolymer Flexible Tubing

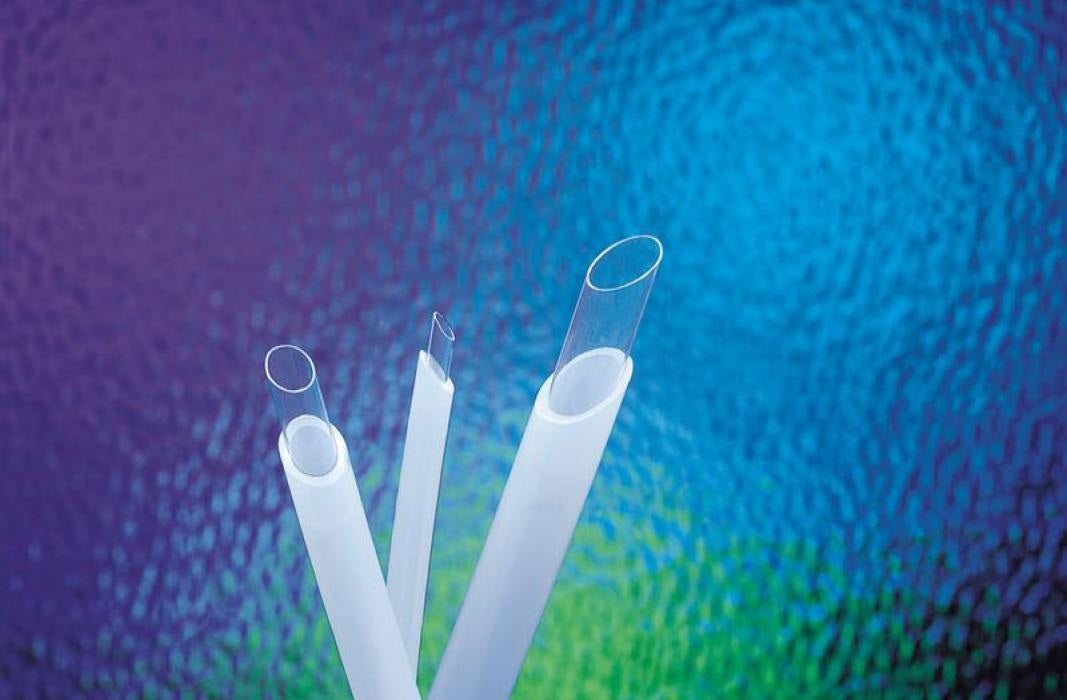

Versilon® Duality Multi-Purpose, High Purity Fluoropolymer Lined Tubing
Lightweight and easy to install, Versilon® Duality tubing offers outstanding flex life, cleans easily and stands up well to low-temperature environments. No special fittings are required for Versilon® Duality tubing.
1
What is this product used for?
- Liquor dispensing systems
- Photo development
- Environmental sampling tubes
- Bottle-filling equipment
- Brewing and distilling processes
2
What are the key specifications?
Tube
Fluoropolymer
Cover
FDA-Approved Resins
Reinforcement
None
Colors
Translucent
Maximum Recommended Service Temp °F (°C)
+179°F (82°C)
Minimum Recommended Service Temp. °F (°C)
-26°F (-32°C)
Specifications
FDA Approved
WARNING:
Not intended as an implant material!
3
What are the main product features?
- Fluoropolymer lined construction.
- Purity assured.
- No plasticizers, fillers, or VCM.
- Excellent alcohol and chemical resistance.
- Rapid installation.
- Translucent.
- No liquid absorption.
- No odor or taste contamination.
- No special fittings required.
- Jacket and liner made from FDA-approved resins.
- Flexible.
- Lightweight.
4
Which sizes or configurations are available?
| Part Number (50ft Lengths) |
Part Number (100ft Lengths) |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Burst Pressure (PSI)* |
|---|---|---|---|---|---|---|
| TSFE4-125250PL1-50 | TSFE4-125250PL1.10 | 1/8" | 1/4" | .010" | 1" | 900 PSI |
| TSFE4-187312PL2-50 | TSFE4-187312PL2.10 | 3/16" | 1/4" | .010" | 1-1/4" | 350 PSI |
| TSFE4-250312PL4-50 | TSFE4-250312PL4.10 | 1/4" | 5/16" | .010" | 6" | 300 PSI |
| TSFE4-250375PL5-50 | TSFE4-250375PL5.10 | 1/4" | 3/8" | .010" | 1-1/2" | 600 PSI |
| TSFE4-375437PL7-50 | TSFE4-375437PL7.10 | 3/8" | 7/16" | .012" | 4" | 200 PSI |
| TSFE4-375500PL8-50 | TSFE4-375500PL8.10 | 3/8" | 1/2" | .012" | 4" | 350 PSI |
| TSFE4-500625PL9-50 | TSFE4-500625PL9.10 | 1/2" | 5/8" | .015" | 6" | 250 PSI |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon™ Duality Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
