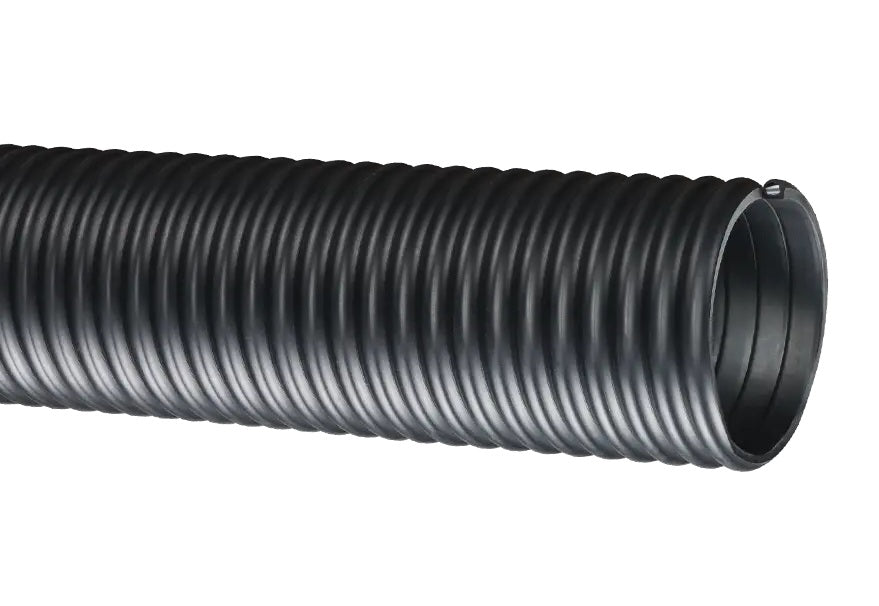

TR1-200X100 Tigerflex® by Kuriyama | TR1™ Series | Heavy-Duty Wet or Dry Material Handling Hose | Rubber Blend | 2" ID | 2.38" OD | 100ft Length
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.
Heavy-Duty Material Handling Hose
Kuriyama Tigerflex™ TR1 Series
Heavy-duty rubber hose designed for abrasive material handling, industrial vacuum equipment, hydro excavation and demanding suction applications.
Abrasion Resistant
Engineered for demanding material-handling applications
Static Dissipative
Formulated to help reduce static electricity buildup
Cold-Flex
Remains flexible in subzero temperatures
Made in USA
Manufactured in the United States
1
What is this product used for?
- Fly ash collection
- Grain handling
- Hydro excavation
- Industrial vacuum equipment
- Heavy-duty abrasive material handling
- Milling machine scrap recovery
- Rock, gravel, sand and crushed concrete vacuuming
- Sewer truck boom hose
- Shot blast recovery
- Slurry handling
2
What are the key specifications?
Tube
Blended rubber
Reinforcement
Rigid PVC helix
Cover
Convoluted design
Temperature Range
-40°F (-40°C) to +150°F (+65°C)
Compliance
RoHS
Country of Origin
Made in the USA
3
What are the main product features?
- Superior Rubber Compounds — Specially engineered compounds provide abrasion resistance, flexibility, static dissipation, light weight and long-lasting durability.
- Static-Dissipative Tube — Specially formulated to help prevent static electricity buildup and support smooth material flow.
- Cold-Flex Materials — Hose remains flexible in subzero temperatures.
- Convoluted Cover Design — Provides increased hose flexibility for demanding applications.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| TR1-150X100 | 1-1/2" | 38.5 | 1.94" | 49.2 | 35 PSI | 26 PSI | Full | 28 in Hg | 1.5" | 100 | 0.47 |
| TR1-200X50 | 2" | 50.8 | 2.38" | 60.5 | 32 PSI | 23 PSI | Full | 26 in Hg | 1.5" | 50 | 0.65 |
| TR1-200X100 | 2" | 50.8 | 2.38" | 60.5 | 32 PSI | 23 PSI | Full | 26 in Hg | 1.5" | 100 | 0.65 |
| TR1-250X50 | 2-1/2" | 63.4 | 3.05" | 77.5 | 30 PSI | 22 PSI | Full | 26 in Hg | 2.0" | 50 | 0.84 |
| TR1-250X100 | 2-1/2" | 63.4 | 3.05" | 77.5 | 30 PSI | 22 PSI | Full | 26 in Hg | 2.0" | 100 | 0.84 |
| TR1-300X50 | 3" | 76.2 | 3.56" | 90.5 | 28 PSI | 20 PSI | Full | 26 in Hg | 2.5" | 50 | 0.90 |
| TR1-300X100 | 3" | 76.2 | 3.56" | 90.5 | 28 PSI | 20 PSI | Full | 26 in Hg | 2.5" | 100 | 0.90 |
| TR1-400X50 | 4" | 101.6 | 4.67" | 118.5 | 26 PSI | 18 PSI | Full | 26 in Hg | 4.5" | 50 | 1.73 |
| TR1-400X100 | 4" | 101.6 | 4.67" | 118.5 | 26 PSI | 18 PSI | Full | 26 in Hg | 4.5" | 100 | 1.73 |
| TR1-500X50 | 5" | 126.8 | 5.73" | 145.5 | 21 PSI | 16 PSI | 28 in Hg | 24 in Hg | 5.0" | 50 | 3.00 |
| TR1-500X100 | 5" | 126.8 | 5.73" | 145.5 | 21 PSI | 16 PSI | 28 in Hg | 24 in Hg | 5.0" | 100 | 3.00 |
| TR1-600X50 | 6" | 153.4 | 7.03" | 178.8 | 19 PSI | 13 PSI | 28 in Hg | 24 in Hg | 9.5" | 50 | 4.00 |
| TR1-600X100 | 6" | 153.4 | 7.03" | 178.8 | 19 PSI | 13 PSI | 28 in Hg | 24 in Hg | 9.5" | 100 | 4.00 |
| TR1-800X50 | 8" | 204.8 | 9.27" | 255.6 | 19 PSI | 13 PSI | 27 in Hg | 23 in Hg | 14" | 50 | 7.40 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.
How is this product sold?
Available in 50- and 100-foot lengths, depending on hose size.
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
32
Tubing Construction:
Specifications and Approvals:
Special Properties:
