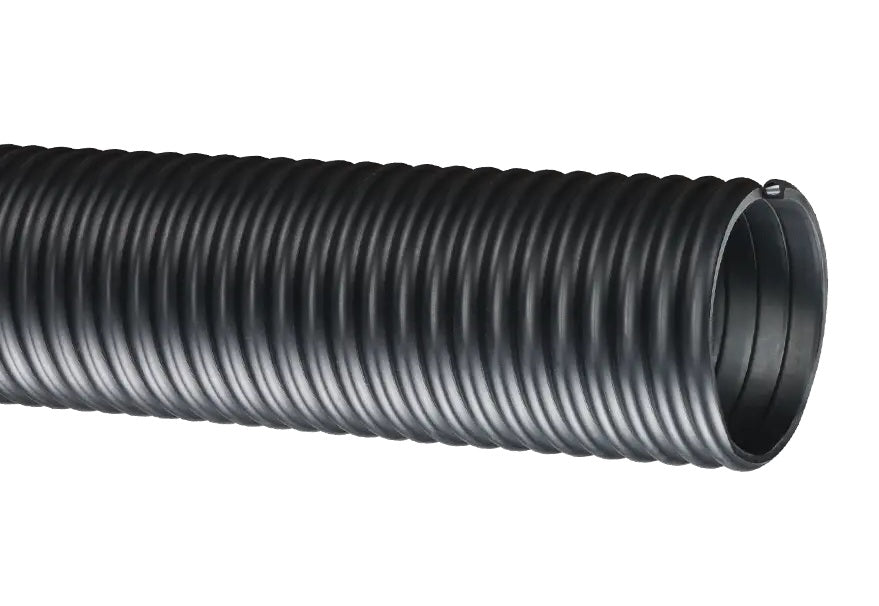

TR1-200X50 Tigerflex® by Kuriyama | TR1™ Series | Heavy-Duty Wet or Dry Material Handling Hose | Rubber Blend | 2" ID | 2.38" OD | 50ft Length
Tigerflex® | TR1™ Series | Heavy-Duty Wet or Dry Material Handling Hose
Engineered for extreme-duty service.
Ideal for extreme-duty vacuum and material handling, including fly ash, grain, hydro excavation, and abrasive media such as rock, sand, gravel, and slurry.
Made in the USA.
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $406.38 |
| 15–29 | $367.47 |
| 30+ | $324.24 |
Product Data:
32
Kuriyama Tigerflex™ TR1 Series
Heavy-duty rubber hose designed for abrasive material handling, industrial vacuum equipment, hydro excavation and demanding suction applications.
Abrasion Resistant
Engineered for demanding material-handling applications
Static Dissipative
Formulated to help reduce static electricity buildup
Cold-Flex
Remains flexible in subzero temperatures
Made in USA
Manufactured in the United States
1
What is this product used for?
- Fly ash collection
- Grain handling
- Hydro excavation
- Industrial vacuum equipment
- Heavy-duty abrasive material handling
- Milling machine scrap recovery
- Rock, gravel, sand and crushed concrete vacuuming
- Sewer truck boom hose
- Shot blast recovery
- Slurry handling
2
What are the key specifications?
Blended rubber
Rigid PVC helix
Convoluted design
-40°F (-40°C) to +150°F (+65°C)
RoHS
Made in the USA
3
What are the main product features?
- Superior Rubber Compounds — Specially engineered compounds provide abrasion resistance, flexibility, static dissipation, light weight and long-lasting durability.
- Static-Dissipative Tube — Specially formulated to help prevent static electricity buildup and support smooth material flow.
- Cold-Flex Materials — Hose remains flexible in subzero temperatures.
- Convoluted Cover Design — Provides increased hose flexibility for demanding applications.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| TR1-150X100 | 1-1/2" | 38.5 | 1.94" | 49.2 | 35 PSI | 26 PSI | Full | 28 in Hg | 1.5" | 100 | 0.47 |
| TR1-200X50 | 2" | 50.8 | 2.38" | 60.5 | 32 PSI | 23 PSI | Full | 26 in Hg | 1.5" | 50 | 0.65 |
| TR1-200X100 | 2" | 50.8 | 2.38" | 60.5 | 32 PSI | 23 PSI | Full | 26 in Hg | 1.5" | 100 | 0.65 |
| TR1-250X50 | 2-1/2" | 63.4 | 3.05" | 77.5 | 30 PSI | 22 PSI | Full | 26 in Hg | 2.0" | 50 | 0.84 |
| TR1-250X100 | 2-1/2" | 63.4 | 3.05" | 77.5 | 30 PSI | 22 PSI | Full | 26 in Hg | 2.0" | 100 | 0.84 |
| TR1-300X50 | 3" | 76.2 | 3.56" | 90.5 | 28 PSI | 20 PSI | Full | 26 in Hg | 2.5" | 50 | 0.90 |
| TR1-300X100 | 3" | 76.2 | 3.56" | 90.5 | 28 PSI | 20 PSI | Full | 26 in Hg | 2.5" | 100 | 0.90 |
| TR1-400X50 | 4" | 101.6 | 4.67" | 118.5 | 26 PSI | 18 PSI | Full | 26 in Hg | 4.5" | 50 | 1.73 |
| TR1-400X100 | 4" | 101.6 | 4.67" | 118.5 | 26 PSI | 18 PSI | Full | 26 in Hg | 4.5" | 100 | 1.73 |
| TR1-500X50 | 5" | 126.8 | 5.73" | 145.5 | 21 PSI | 16 PSI | 28 in Hg | 24 in Hg | 5.0" | 50 | 3.00 |
| TR1-500X100 | 5" | 126.8 | 5.73" | 145.5 | 21 PSI | 16 PSI | 28 in Hg | 24 in Hg | 5.0" | 100 | 3.00 |
| TR1-600X50 | 6" | 153.4 | 7.03" | 178.8 | 19 PSI | 13 PSI | 28 in Hg | 24 in Hg | 9.5" | 50 | 4.00 |
| TR1-600X100 | 6" | 153.4 | 7.03" | 178.8 | 19 PSI | 13 PSI | 28 in Hg | 24 in Hg | 9.5" | 100 | 4.00 |
| TR1-800X50 | 8" | 204.8 | 9.27" | 255.6 | 19 PSI | 13 PSI | 27 in Hg | 23 in Hg | 14" | 50 | 7.40 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
How is this product sold?
Available in 50- and 100-foot lengths, depending on hose size.
