T955AA050X100 Alfagomma by Kuriyama | T955AA Series | Dispensing Hose for Diesel Exhaust Fluids (DEF) | 1/2" ID | 0.91" OD | 300 PSI | Black | 100ft Length
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.
SPECIFICATIONS
| Applications: | Used to convey the high-purity, aqueous urea solution, DEF (Diesel Exhaust Fluid), in dispensing equipment systems such as transfer carts, DEF station pumps, drum filling, portable dispensers, mobile filling trailers, and DEF fuel trailers. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black, conductive sulphur-free EPDM. |
| Reinforcement: | High tensile textile braids. | Cover: | Black, conductive abrasion and ozone resistant EPDM. |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) | Coupling Suggestions: | Use stainless steel material to avoid contamination of the DEF solution. |

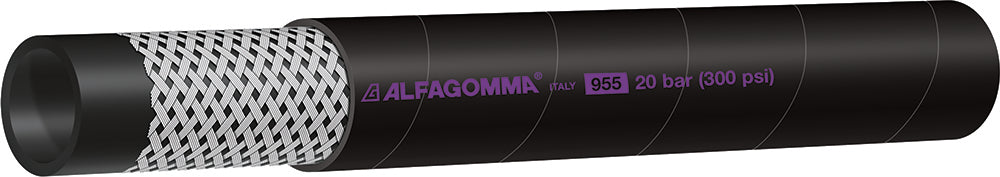

| Branding: | ALFAGOMMA ITALY 955 20 bar (300 PSI) DEF/AUS32 DISPENSING Ω (in purple letters) | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure* |
Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | (in) | (lbs/ft) | ||
| T955AA050X50 | T955AA050X100 | 1/2" | 13mm | 0.91" | 23mm | 300 PSI | 3.58" | 0.19 lbs/ft |
| T955AA062X50 | T955AA062X100 | 5/8" | 16mm | 1.02" | 26mm | 300 PSI | 4.41" | 0.23 lbs/ft |
| T955AA075X50 | T955AA075X100 | 3/4" | 19mm | 1.14" | 29mm | 300 PSI | 5.24" | 0.26 lbs/ft |
| T955AA100X50 | T955AA100X100 | 1" | 25mm | 1.38" | 35mm | 300 PSI | 6.89" | 0.33 lbs/ft |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
Special Properties:
