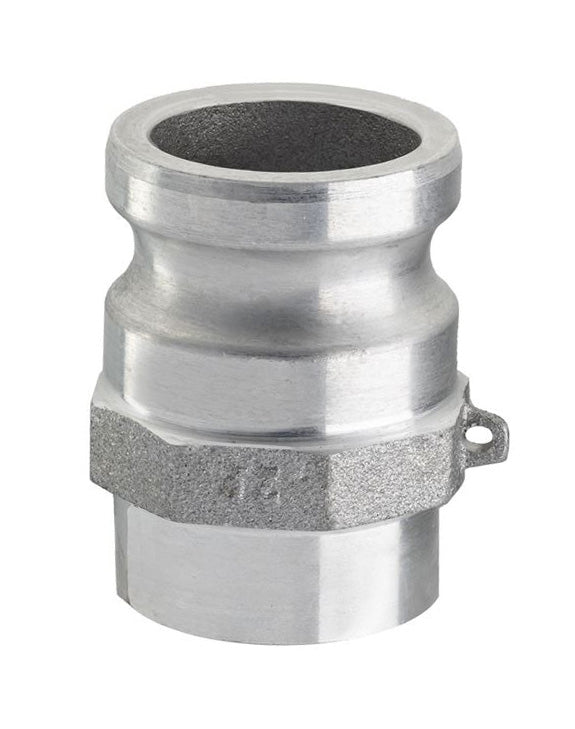

SW-ALA600 by Kuriyama | SW-ALA Series | Part A | Cam & Groove Adapter | 6" Adapter x 6" Socket Weld End | Aluminum

SW-ALA600 by Kuriyama | SW-ALA Series | Part A | Cam & Groove Adapter | 6" Adapter x 6" Socket Weld End | Aluminum

Sale price$65.35
Buy more, save moreDiscounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Socket weld items are designed for use with schedule 40 pipe.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
SW-ALA150 1-1/2" 250 PSI B26 Grade 713 0.37 lbs
SW-ALA200 2" 250 PSI B26 Grade 713 0.45 lbs
SW-ALA250 2-1/2" 150 PSI B26 Grade 713 0.65 lbs
SW-ALA300 3" 150 PSI B26 Grade 713 0.77 lbs
SW-ALA400 4" 150 PSI B26 Grade 713 1.41 lbs
SW-ALA500 5" 75 PSI B26 Grade 713 1.70 lbs
SW-ALA600 6" 75 PSI B26 Grade 713 2.08 lbs

Additional Product Data:

Series:
  • SW-ALA Series
MAWP:

75

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
