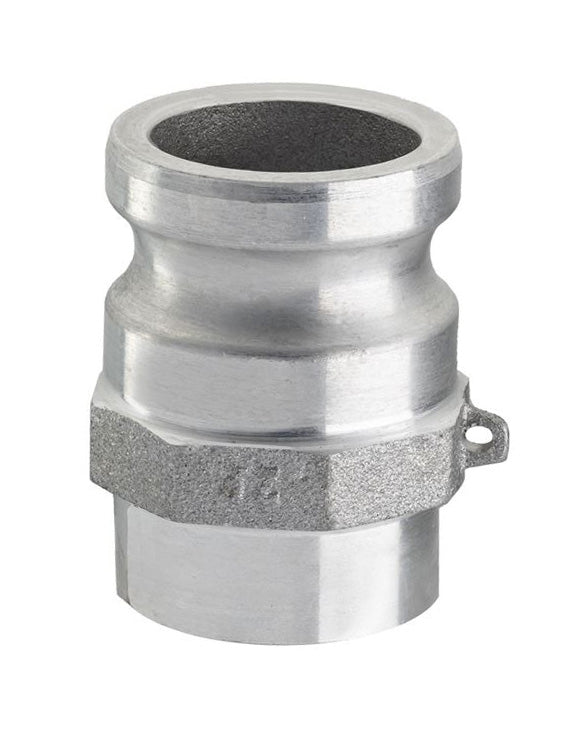

SW-ALA200 by Kuriyama | SW-ALA Series | Part A | Cam & Groove Adapter | 2" Adapter x 2" Socket Weld End | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SW-ALA Series | Part A | Adapter x Socket Weld End | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.65 |
| 40–79 | $13.25 |
| 80+ | $11.69 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Socket weld items are designed for use with schedule 40 pipe.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| SW-ALA150 | 1-1/2" | 250 PSI | B26 Grade 713 | 0.37 lbs |
| SW-ALA200 | 2" | 250 PSI | B26 Grade 713 | 0.45 lbs |
| SW-ALA250 | 2-1/2" | 150 PSI | B26 Grade 713 | 0.65 lbs |
| SW-ALA300 | 3" | 150 PSI | B26 Grade 713 | 0.77 lbs |
| SW-ALA400 | 4" | 150 PSI | B26 Grade 713 | 1.41 lbs |
| SW-ALA500 | 5" | 75 PSI | B26 Grade 713 | 1.70 lbs |
| SW-ALA600 | 6" | 75 PSI | B26 Grade 713 | 2.08 lbs |
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
