STEAM-3.0-100N by Texcel | TEX-STEAM Series | Wire Braid Steam Hose | 3" Hose ID | 250 PSI | Black | 100ft Length
Package Quantity: 100 Feet
Buy more, save moreDiscounts applied in cart/checkout.
STEAM-3.0-100N by Texcel | TEX-STEAM Series | Wire Braid Steam Hose | 3" Hose ID | 250 PSI | Black | 100ft Length
Sale price$3,960.03
($39.60/ft)
Steam Hose

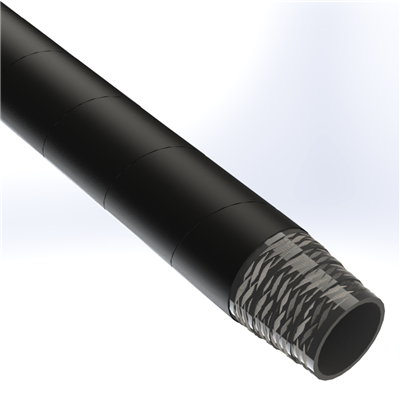

TEX-STEAM Wire Braid Steam Hose
Rugged, wire-braid steam hose recommended for saturated and super-heated steam applications.
1
What is this hose used for?
For use in chemical plants, shipyards and industrial plants.
- Saturated steam
- Superheated steam
- Chemical plants
- Shipyards
- Industrial plants
⚠ CAUTION: Drain the hose after each use for maximum hose life. Do not alternate use between steam and water.
2
What are the key specifications?
Tube
Black or red heat-resistant EPDM
Cover
Black or red EPDM (pinpricked); red available in 3/4" x 50' only
Reinforcement
High tensile steel wires
Temperature Range
-40°F to 410°F saturated steam; -40°F to 450°F superheated
Safety Factor
10:1
Branding
TEXCEL TEX-STEAM WIRE BRAID STEAM HOSE – 250PSI AT 450F/SATURATED STEAM 410F – DO NOT ALTERNATE STEAM AND WATER – DRAIN AFTER USE (embossed)
3
Which sizes are available?
| Part Number | Hose ID | Cover | Hose OD | Working Pressure (psi) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| STEAM-.50-100N | 1/2" | Black | 60/64" | 250 | 3" | 0.37 |
| STEAM-.75-100N | 3/4" | Black | 1-16/64" | 250 | 4" | 0.57 |
| STEAM-.75-50N-R | 3/4" | Red | 1-16/64" | 250 | 4" | 0.57 |
| STEAM-1.0-100N | 1" | Black | 1-32/64" | 250 | 6" | 0.70 |
| STEAM-1.5-100N | 1-1/2" | Black | 2-4/64" | 250 | 8" | 1.10 |
| STEAM-2.0-50N | 2" | Black | 2-44/64" | 250 | 10" | 1.50 |
| STEAM-2.5-100N | 2-1/2" | Black | 3-14/64" | 250 | 11" | 2.29 |
| STEAM-3.0-100N | 3" | Black | 3-50/64" | 250 | 13-1/2" | 2.85 |
Texcel recommends using Dixon Valve and Coupling’s Crimp Boss™ Steam Fittings for black cover TEX-STEAM hose, or the Boss™ 4-Bolt Clamp System for black and red TEX-STEAM hose. Please consult Dixon for proper coupling procedures.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
