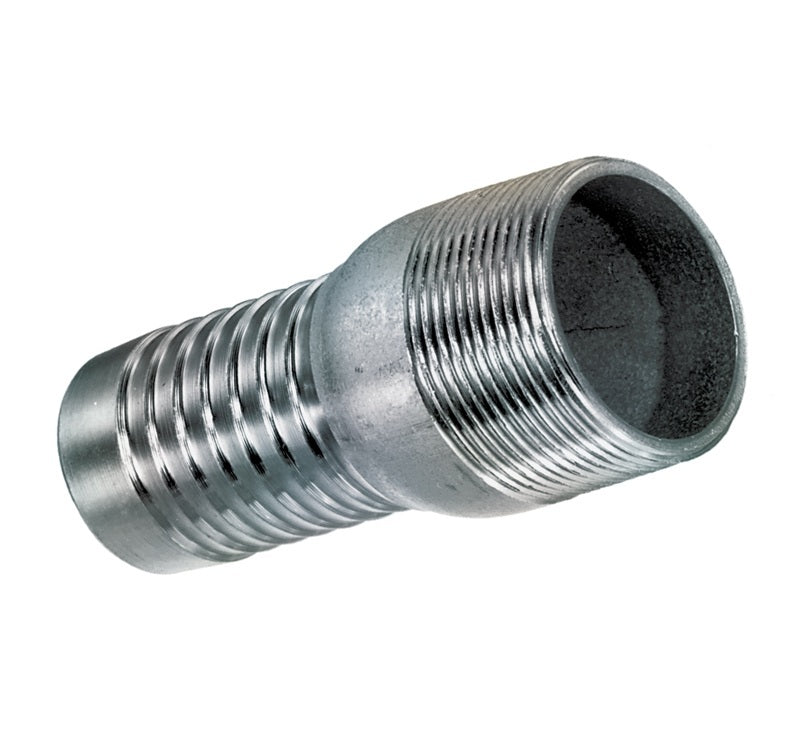

SSN304-600 by Kuriyama | SSN-304 Series | Combination Hose Nipple | 6" Male NPT x 6" Hose Barb | 304 Stainless Steel

SSN304-600 by Kuriyama | SSN-304 Series | Combination Hose Nipple | 6" Male NPT x 6" Hose Barb | 304 Stainless Steel

Sale price$231.72
Buy more, save moreDiscounts applied in cart/checkout.

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • 316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
SSN304-050 1/2" 125 PSI 0.18 lbs
SSN304-075 3/4" 125 PSI 0.26 lbs
SSN304-100 1" 125 PSI 0.35 lbs
SSN304-125 1-1/4" 125 PSI 0.55 lbs
SSN304-150 1-1/2" 125 PSI 0.66 lbs
SSN304-200 2" 75 PSI 1.16 lbs
SSN304-250 2-1/2" 75 PSI 1.31 lbs
SSN304-300 3" 75 PSI 2.20 lbs
SSN304-400 4" 75 PSI 3.31 lbs
SSN304-500 5" 75 PSI 8.82 lbs
SSN304-600 6" 75 PSI 11.02 lbs

Additional Product Data:

Series:
  • SSN-304 Series
MAWP:

75

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
