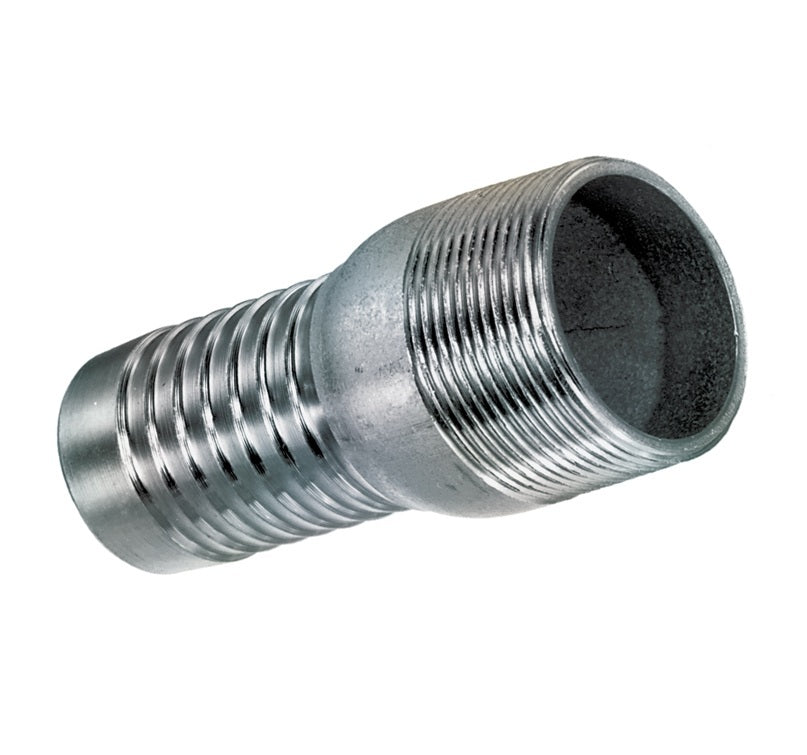

SSN304-125 by Kuriyama | SSN-304 Series | Combination Hose Nipple | 1-1/4" Male NPT x 1-1/4" Hose Barb | 304 Stainless Steel

SSN304-125 by Kuriyama | SSN-304 Series | Combination Hose Nipple | 1-1/4" Male NPT x 1-1/4" Hose Barb | 304 Stainless Steel

Sale price$16.48

Kuriyama of America Inc.
Combination Hose Nipple | SSN-304 Series | Male NPT x Hose Barb | 304 Stainless Steel

Versatile hose connectors designed to connect hose and pipes.

Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
Buy More, Save More!
Quantity Price Each
10–39 $15.49
40–79 $14.01
80+ $12.36
Discounts applied in cart/checkout.

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • 316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
SSN304-050 1/2" 125 PSI 0.18 lbs
SSN304-075 3/4" 125 PSI 0.26 lbs
SSN304-100 1" 125 PSI 0.35 lbs
SSN304-125 1-1/4" 125 PSI 0.55 lbs
SSN304-150 1-1/2" 125 PSI 0.66 lbs
SSN304-200 2" 75 PSI 1.16 lbs
SSN304-250 2-1/2" 75 PSI 1.31 lbs
SSN304-300 3" 75 PSI 2.20 lbs
SSN304-400 4" 75 PSI 3.31 lbs
SSN304-500 5" 75 PSI 8.82 lbs
SSN304-600 6" 75 PSI 11.02 lbs

Product Data:

Series:
  • SSN-304 Series
MAWP:

125

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
