SSGC01-16x16 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x 1-11-1/2 Thread Size NPTF Male Solid | Straight | 316 Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — 316 Stainless Steel
SSGC01 Grip Crimp 316 Stainless Steel Coupling — NPTF Male Solid, Straight, 316 Stainless Steel
SSGC01 is the NPTF Male Solid, Straight, 316 Stainless Steel configuration of the Grip Crimp 316 Stainless Steel system, terminating braid hydraulic hose in corrosive service.
1
What are the main product features?
- Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
- Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
- Trivalent Zinc Plating
- 316 stainless steel throughout — for marine, chemical, wash-down and food service where plated steel corrodes.
- Bite to the wire — the same grip as the plated Grip Crimp couplings.
- No plating to wear through — corrosion resistance is the material, not a coating.
2
Which sizes are available?

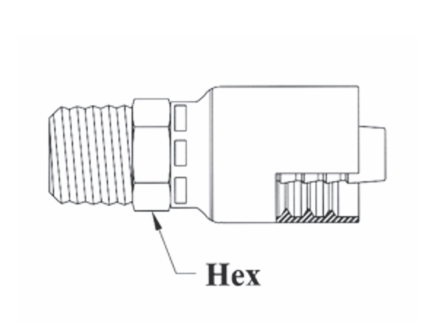

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size |
|---|---|---|---|---|
| SSGC01-4x4 | 1/4" | 1/4" | 1/4-18 | 9/16" |
| SSGC01-6x6 | 3/8" | 3/8" | 3/8-18 | 3/4" |
| SSGC01-8x8 | 1/2" | 1/2" | 1/2-14 | 7/8" |
| SSGC01-12x12 | 3/4" | 3/4" | 3/4-14 | 1-1/8" |
| SSGC01-16x16 | 1" | 1" | 1-11-1/2 | 1-3/8" |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
