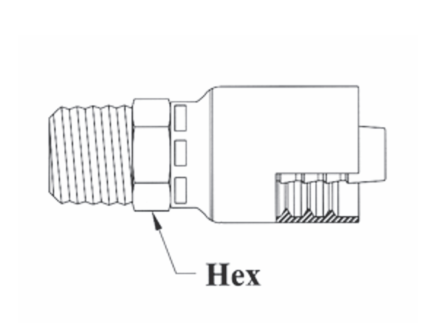

SSGC01-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 1/4-18 Thread Size NPTF Male Solid | Straight | 316 Stainless Steel

SSGC01-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 1/4-18 Thread Size NPTF Male Solid | Straight | 316 Stainless Steel

Sale price$35.12

Couplamatic Systems Inc.
Grip Crimp Series - 316 Stainless Steel - NPTF - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $33.01
40–79 $29.85
80+ $26.34
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male NPTF
  • 1/4in Hose Barb
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Pipe Size Thread Size Hex Size
SSGC01-4x4 1/4" 1/4" 1/4-18 9/16"
SSGC01-6x6 3/8" 3/8" 3/8-18 3/4"
SSGC01-8x8 1/2" 1/2" 1/2-14 7/8"
SSGC01-12x12 3/4" 3/4" 3/4-14 1-1/8"
SSGC01-16x16 1" 1" 1-11-1/2 1-3/8"

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
