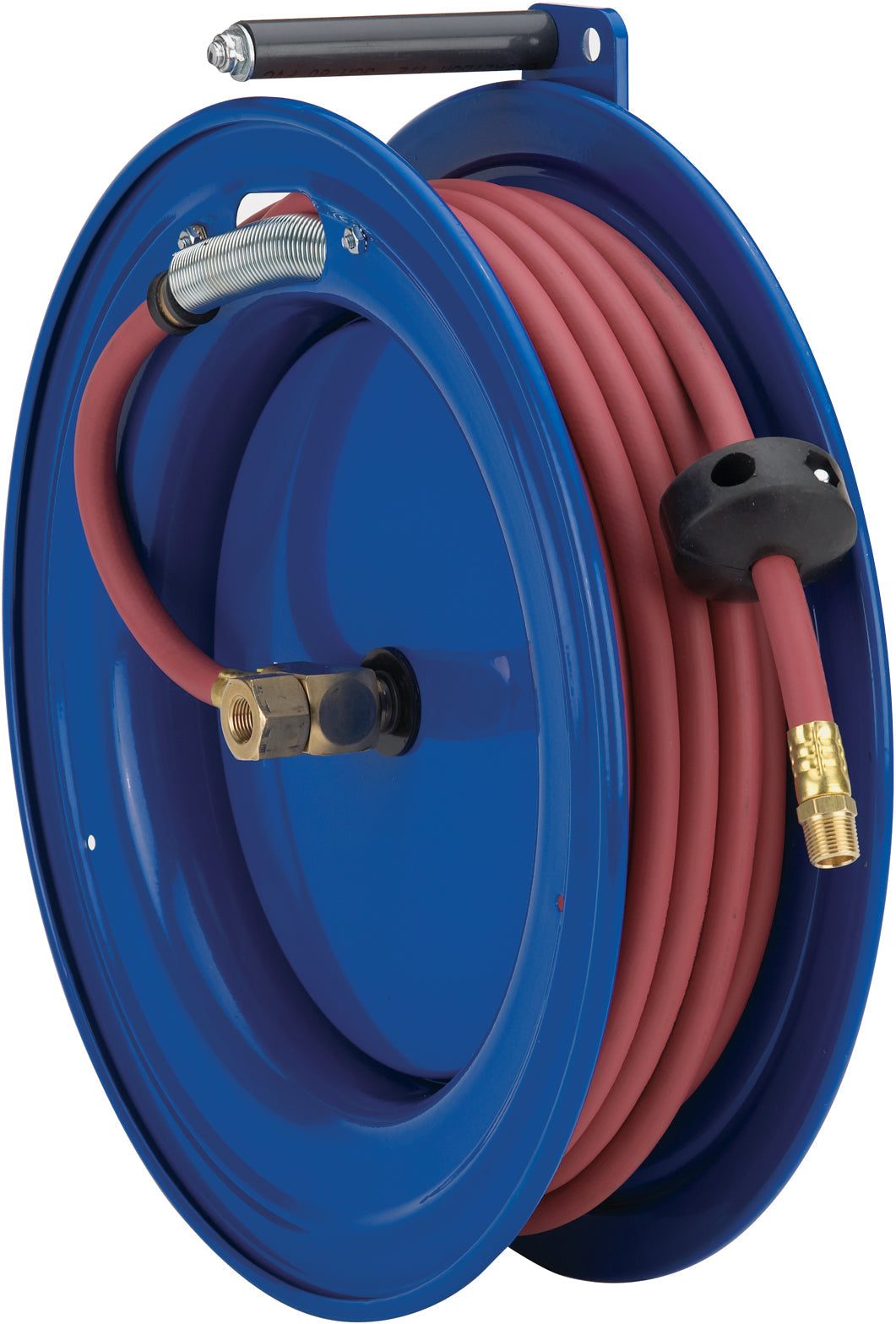

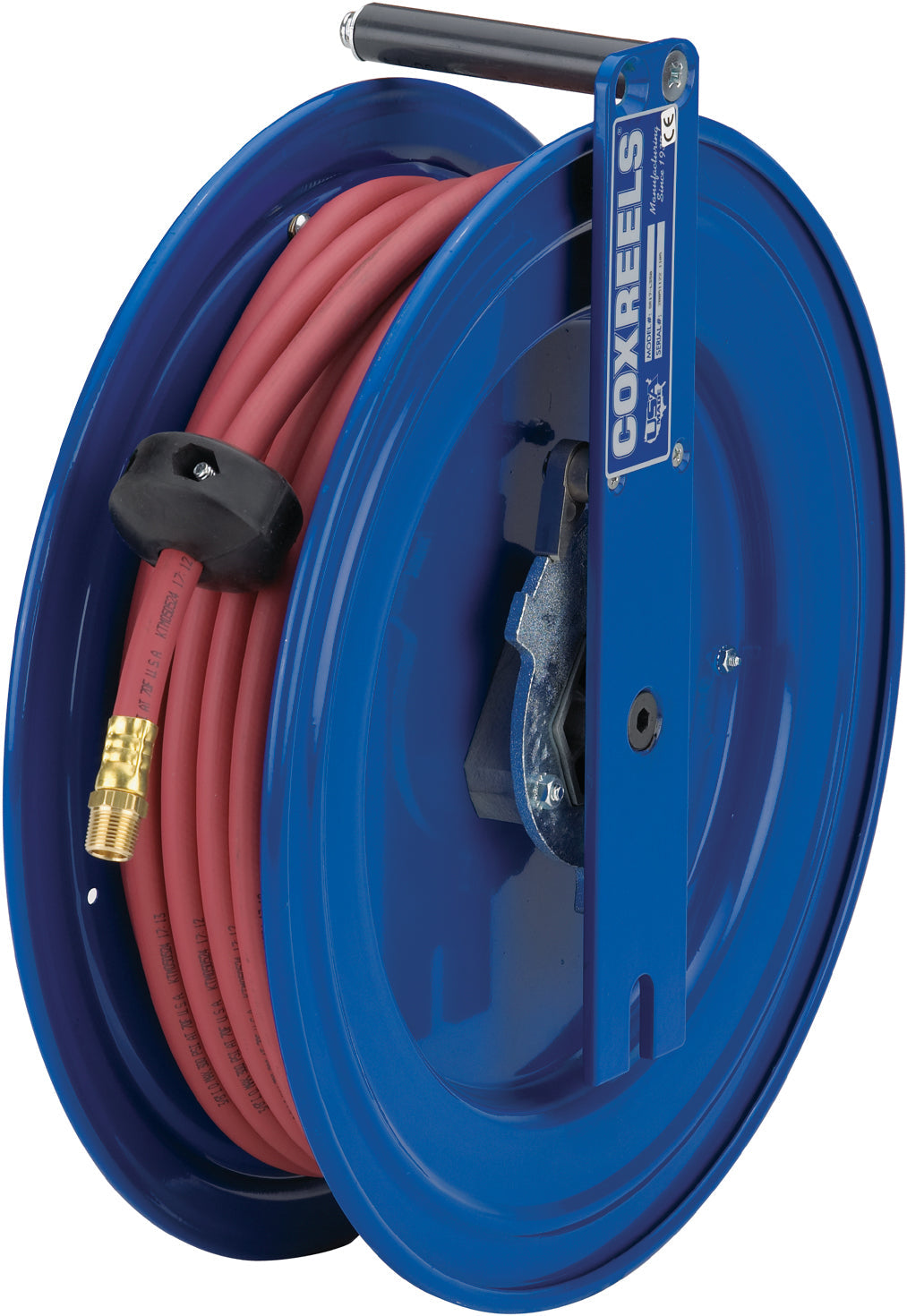

SR19L-M450 by Coxreels | S Series | 2,500 PSI Right Side Mount Spring Driven Hose Reel for Air, Water & Oil | 1/2" Hose ID, 1/2" FNPT Inlet | Steel | 50ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels S Series Spring Driven Hose Reels
Steel side-mount spring driven hose reels for air, water, washdown, chemical fluid transfer and oil and lubrication, rated to 5,000 PSI. Made in the U.S.A.
1
What is this product used for?
- 300 PSI models — Air, water, washdown, chemical fluid transfer.
- 2,500–3,000 PSI models — Air, water, oil & lubrication, washdown.
- 4,000–5,000 PSI models — Air, water, oil & lubrication, grease & hydraulics, pressure washing.
2
What are the key specifications?
Construction
Steel, side-mount
Swivel
Nitrile seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
150°F / 250°F depending on hose
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Side Mount Design — Mount right for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
- Control Bar — Hose control bar prevents hose from slipping off the disc.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| Low Pressure — PVC hose included | ||||||
| SL13-L125 | 1/4" | 25 ft | 300 | 2.88" | 13" | 6 × 14.25 × 13 |
| SL15-L135 | 1/4" | 35 ft | 300 | 2.88" | 13" | 6 × 16.5 × 15.25 |
| SL15-L325 | 3/8" | 25 ft | 300 | 2.88" | 13" | 6 × 16.5 × 15.25 |
| SL17-L350 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SL17-L430 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SL17L-L430 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SL19-L450 | 1/2" | 50 ft | 300 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| SR13-L125 | 1/4" | 25 ft | 300 | 2.88" | 13" | 6 × 14.25 × 13 |
| SR15-L135 | 1/4" | 35 ft | 300 | 2.88" | 13" | 6 × 16.5 × 15.25 |
| SR15-L325 | 3/8" | 25 ft | 300 | 2.88" | — | 6 × 16.5 × 15.25 |
| SR17-L350 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SR17-L430 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SR17L-L430 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SR19-L450 | 1/2" | 50 ft | 300 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| Low Pressure — hose not included | ||||||
| SL13L-L125 | 1/4" | 25 ft | 300 | 2.88" | 13" | 6 × 14.25 × 13 |
| SL15L-L135 | 1/4" | 35 ft | 300 | 2.88" | 13" | 6 × 16.5 × 15.25 |
| SL15L-L325 | 3/8" | 25 ft | 300 | 2.88" | 13" | 6 × 16.5 × 12.25 |
| SL17L-L350 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SL19L-L450 | 1/2" | 50 ft | 300 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| SR13L-L125 | 1/4" | 25 ft | 300 | 2.88" | 13" | 6 × 14.25 × 13 |
| SR15L-L135 | 1/4" | 35 ft | 300 | 2.88" | 13" | 6 × 14.25 × 13 |
| SR15L-L325 | 3/8" | 25 ft | 300 | 2.88" | — | 6 × 16.5 × 15.25 |
| SR17L-L350 | 3/8" | 50 ft | 300 | 3.75" | 17" | 5.75 × 18.25 × 17 |
| SR19L-L450 | 1/2" | 50 ft | 300 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| Medium Pressure — rubber hose included | ||||||
| SL17-M325 | 3/8" | 25 ft | 3,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL17-M425 | 1/2" | 25 ft | 2,500 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL19-M350 | 3/8" | 50 ft | 3,000 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| SL19-M450 | 1/2" | 50 ft | 2,500 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| SR17-M325 | 3/8" | 25 ft | 3,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR17-M425 | 1/2" | 25 ft | 2,500 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR19-M350 | 3/8" | 50 ft | 3,000 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| SR19-M450 | 1/2" | 50 ft | 2,500 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| Medium Pressure — hose not included | ||||||
| SL17L-M325 | 3/8" | 25 ft | 3,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL17L-M425 | 1/2" | 25 ft | 2,500 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL19L-M350 | 3/8" | 50 ft | 3,000 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| SL19L-M450 | 1/2" | 50 ft | 2,500 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| SR17L-M325 | 3/8" | 25 ft | 3,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR17L-M425 | 1/2" | 25 ft | 2,500 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR19L-M350 | 3/8" | 50 ft | 3,000 | 4.5" | 19" | 7.5 × 20.75 × 19.5 |
| SR19L-M450 | 1/2" | 50 ft | 2,500 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| High Pressure — rubber hose included | ||||||
| SL17-H125 | 1/4" | 25 ft | 5,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL17-H325 | 3/8" | 25 ft | 4,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL19-H150 | 1/4" | 50 ft | 5,000 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| SL19-H350 | 3/8" | 50 ft | 4,000 | 4.5" | 19" | 8.5 × 20.75 × 19.5 |
| SR17-H125 | 1/4" | 25 ft | 5,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR17-H325 | 3/8" | 25 ft | 4,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR19-H150 | 1/4" | 50 ft | 5,000 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| SR19-H350 | 3/8" | 50 ft | 4,000 | 4.5" | 19" | 8.5 × 20.75 × 19.5 |
| High Pressure — hose not included | ||||||
| SL17L-H125 | 1/4" | 25 ft | 5,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL17L-H325 | 3/8" | 25 ft | 4,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SL19L-H150 | 1/4" | 50 ft | 5,000 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| SL19L-H350 | 3/8" | 50 ft | 4,000 | 4.5" | 19" | 8.5 × 20.75 × 19.5 |
| SR17L-H125 | 1/4" | 25 ft | 5,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR17L-H325 | 3/8" | 25 ft | 4,000 | 3.75" | 17" | 6.625 × 18.25 × 17 |
| SR19L-H150 | 1/4" | 50 ft | 5,000 | 4.5" | 19" | 8 × 20.75 × 19.5 |
| SR19L-H350 | 3/8" | 50 ft | 4,000 | 4.5" | 19" | 8.5 × 20.75 × 19.5 |
5
Which accessories are available?
Mounting brackets — by disc diameter:
| Part # | Accessory | Fits |
|---|---|---|
| Inlet connections | ||
| 5150-1.5 | 18" inlet hose | Disc diameter 13" except SL15/SL15L-L325 |
| 5153-1.5 | 18" inlet hose | SL15/SL15L-L325; SL17/SL17L/SR17/SR17L-L350; SL17/SL17L/SR17/SR17L-L430 |
| 5154-1.5 | 18" inlet hose | SL19/SL19L/SR19/SR19L-L450 |
| 5224-1.5 | 18" inlet hose | Max PSI 3,000 |
| 5256-1.5 | 18" inlet hose | Max PSI 2,500 |
| 5304-1.5 | 18" inlet hose | Max PSI 5,000 |
| 5336-1.5 | 18" inlet hose | Max PSI 4,000 |
| 208 | 90° inlet elbow (brass) | SL15/SL15L-L325; SL17/SL17L/SR17/SR17L-L350; SR17/SR17L-L430 |
| 222 | 90° inlet elbow (brass) | SL17/SL17L-L430; SL19/SL19L/SR19/SR19L-L450 |
| 6088 | 90° inlet elbow (brass) | Disc diameter 13" except SL15/SL15L-L325 |
| 500 | 90° inlet elbow (steel) | Max PSI 3,000 |
| 616 | 90° inlet elbow (steel) | Max PSI 5,000 |
| 617 | 90° inlet elbow (steel) | Max PSI 4,000 |
| 1671 | 90° inlet elbow (steel) | Max PSI 2,500 |
| Hose end | ||
| 131 | Hose/cord stop | Hose I.D. 1/4" |
| 131-3 | Hose/cord stop | Hose I.D. 3/8" except SR15/SR15L-L325 |
| 131-4 | Hose/cord stop | Hose I.D. 1/2" |
| 10759-1 | Quick disconnect | Disc diameter 13" except SL15/SL15L-L325 |
| 10759-2 | Quick disconnect | SL15/SL15L-L325; SL17/SL17L/SR17/SR17L-L350; SL17/SL17L/SR17/SR17L-L430 |
| 237-1 | Spiral hose/cord guard | Hose I.D. 1/4", 3/8" except SR15/SR15L-L325 |
| 398-1 | Spiral hose/cord guard | Hose I.D. 1/2" |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -BP | Blue PVC Hose |
| -YP | Yellow PVC Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BYX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXK / -BXL | Air Tool Kit |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing — S13
Numbered parts breakdown with replacement part numbers for SL13 and SR13 reels.
Exploded Parts Drawing — S15
Numbered parts breakdown with replacement part numbers for SL15 and SR15 reels.
Exploded Parts Drawing — S17
Numbered parts breakdown with replacement part numbers for SL17 and SR17 reels.
Exploded Parts Drawing — S19
Numbered parts breakdown with replacement part numbers for SL19 and SR19 reels.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
