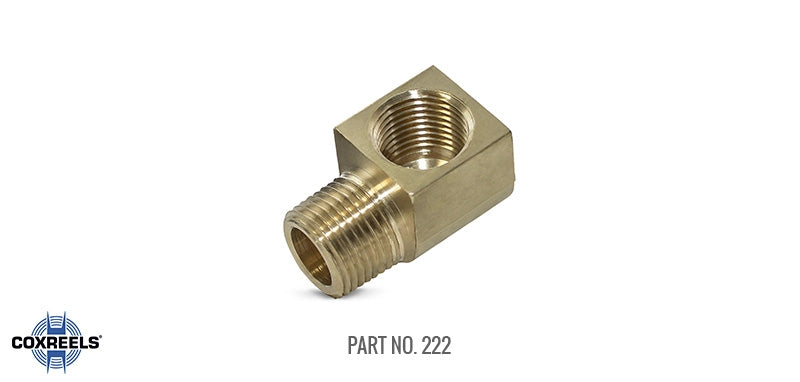

222 by Coxreels | 300 PSI 90° Inlet Elbow for Hose Reels | 1/2" MNPT x FNPT | Brass

222 by Coxreels | 300 PSI 90° Inlet Elbow for Hose Reels | 1/2" MNPT x FNPT | Brass

Sale price$25.61
Buy more, save moreDiscounts applied in cart/checkout.

Coxreels 90° Elbows

Male x female NPT 90° elbows for making reel inlet connections at an angle.

What are the main product features?
  • Brass elbows for low pressure (300 PSI) reels
  • Steel elbows for medium and high pressure reels
  • Male x female NPT

Which part numbers are available?
Part Number Size Material Pressure Class Max PSI
208 3/8" Brass LP 300
222 1/2" Brass LP 300
385 3/4" Brass LP 300
500 3/8" Steel MP 3,000
616 1/4" Steel HP 5,000
617 3/8" Steel HP 5,000
1671 1/2" Steel MP 3,000
6088 1/4" Brass LP 300
15014 3/4" Steel MP 1,250

Additional Product Data:

Series:
  • Inlet Elbow Series
Material(s):
  • Brass
Compatible Series:
  • Alumi-Pro® Series
  • C Series
  • E Series
  • EN Series
  • EZ-E Series
  • EZ-EN Series
  • EZ-P HI-VIS Series
  • EZ-P Series
  • EZ-S Series
  • EZ-SG Series
  • EZ-SH HI-VIS Series
  • EZ-SH Series
  • EZ-T HI-VIS Series
  • EZ-T Series
  • P HI-VIS Series
  • P Series
  • S Series
  • SG Series
  • SH HI-VIS Series
  • SH Series
  • SH-DEF Reels
  • SP Series
  • T HI-VIS Series
  • T Series
  • T-DEF Reels

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
