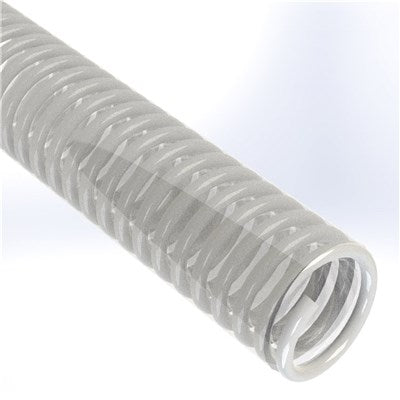

SPVC-CL-.75-100 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 3/4" Hose ID | 100 PSI | 29 in/Hg Vacuum Rated | Clear | 100ft Length
SIGMA-HD by Texcel
CLEAR PVC™ Series | Heavy-Duty Clear PVC Water Suction Hose
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $135.67 |
| 20–59 | $122.68 |
| 60+ | $108.25 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Special Properties:
| Technical Data: | |||
|---|---|---|---|
| Description: | Premium, heavy-duty yet economical construction for great durability. Smooth bore allows full production flow. | Construction: | Clear PVC (smooth bore) with a white, tough vinyl helix |
| Safety Factor: | 3:1 | Temperature: | -40 F to +150F |
| Compared To: | 110CL/Series H | Branding: | TEXCEL® SIGMA-HD CLEAR PVC™ - HEAVY DUTY WATER SUCTION HOSE -LOT | Safety Note: | Service temperature depends on actual application |
| Part Number | Hose ID | Hose OD | Working Pressure (psi/bar) | Vacuum (in./HG) | Bend Radius | Lbs./ft | |
|---|---|---|---|---|---|---|---|
| SPVC-CL-.75-100 | 3/4" | 0.95" | 100' | 100 psi | 29 | 2" | 0.20 lbs |
| SPVC-CL-1.0-100 | 1" | 1.26" | 100' | 100 psi | 29 | 2.5" | 0.27 lbs |
| SPVC-CL-1.5-100 | 1-1/2" | 1.82" | 100' | 85 psi | 29 | 4" | 0.39 lbs |
| SPVC-CL-2.0-100 | 2" | 2.39" | 100' | 70 psi | 29 | 5" | 0.57 lbs |
| SPVC-CL-2.5-100 | 2-1/2" | 2.93" | 100' | 70 psi | 29 | 6.5" | 0.74 lbs |
| SPVC-CL-3.0-100 | 3" | 3.43" | 100' | 65 psi | 29 | 8.5" | 0.94 lbs |
| SPVC-CL-4.0-100 | 4" | 4.53" | 100' | 65 psi | 29 | 12" | 1.48 lbs |
| SPVC-CL-5.0-100 | 5" | 5.55" | 100' | 50 psi | 29 | 14" | 2.15 lbs |
| SPVC-CL-6.0-100 | 6" | 6.67" | - | 50 psi | 29 | 15" | 2.89 lbs |
| SPVC-CL-8.0-20 | 8" | 8.83" | 20' | 45 psi | 29 | 20" | 4.37 lbs |
