SP-DUTY-YELLOW-2.0-100 by Texcel | SIGMA-DUTY MAX™ Series | NBR Suction Hose | 2" Hose ID | 50 PSI | 29.8 in/Hg Vacuum Rated | Yellow
Buy more, save moreDiscounts applied in cart/checkout.
Water Hose

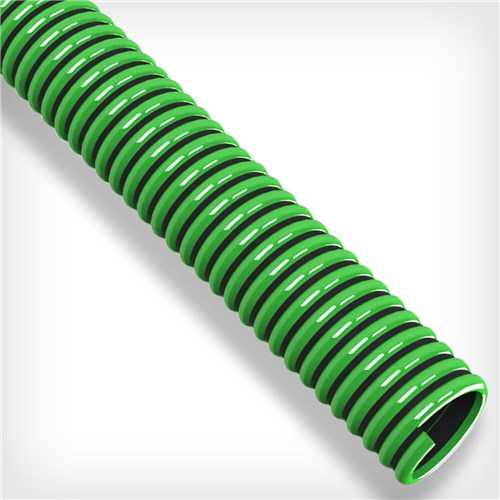

SIGMA™-DUTY MAX NBR Suction Hose
Heavy-duty, all-weather suction hose for liquid manure, septic and wastewater handling, water suction and general oilfield applications.
1
What is this hose used for?
The PVC helix adds toughness over rough surfaces and around corners, making it the right hose for harsh conditions.
- Liquid manure handling
- Septic handling
- Wastewater handling
- Water suction
- General oilfield
2
What are the key specifications?
Construction
NBR/PVC tube with a PVC helix
Temperature Range
-40°F to +140°F
Safety Factor
3:1
Colors
Green; blue and yellow in 2" – 4"
3
What are the main product features?
- Superior flexibility — even at sub-zero temperatures.
- Lightweight — with floating capabilities.
4
Which sizes are available?
| Hose ID | Green | Blue | Yellow | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|---|
| 1-1/2" | SP-DUTY-1.5-100 | — | — | 1.82" | 50 | 29.8 | 3.0" | 0.44 |
| 2" | SP-DUTY-2.0-100 | SP-DUTY-BLUE-2.0-100 | SP-DUTY-YELLOW-2.0-100 | 2.43" | 50 | 29.8 | 5.0" | 0.74 |
| 3" | SP-DUTY-3.0-100 | SP-DUTY-BLUE-3.0-100 | SP-DUTY-YELLOW-3.0-100 | 3.55" | 43 | 29.8 | 7.0" | 1.21 |
| 4" | SP-DUTY-4.0-100 | SP-DUTY-BLUE-4.0-100 | SP-DUTY-YELLOW-4.0-100 | 4.62" | 38 | 29.8 | 11.0" | 1.95 |
| 6" | SP-DUTY-6.0-100 | — | — | 6.81" | 23 | 29.8 | 20.0" | 3.23 |
Service life may vary based on media being conveyed and operating conditions.
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Special Properties:
