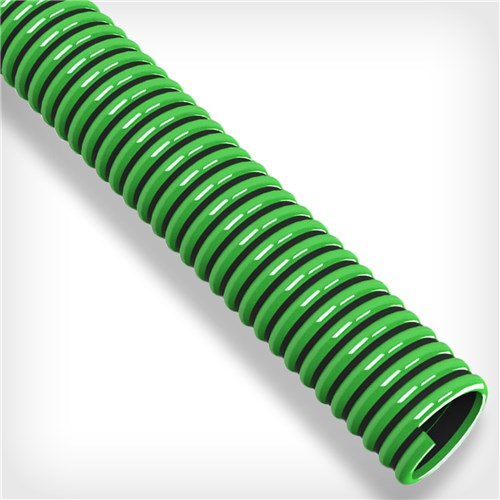

SP-DUTY-2.0-100 by Texcel | SIGMA-DUTY MAX™ Series | NBR Suction Hose | 2" Hose ID | 50 PSI | 29.8 in/Hg Vacuum Rated | Green
Texcel
SIGMA-DUTY MAX™ Series | NBR Suction Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.59 |
| 40–79 | $11.38 |
| 80+ | $10.04 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Special Properties:
| Technical Data: | |||
|---|---|---|---|
| Description: | Duty Max is a heavy-duty, all-weather, suction hose for use in liquid manure handling, septic and wastewater handling, water suction, and general oilfield applications. Please note that service life may vary based on media being conveyed and operating conditions. The PVC helix makes for increased toughness over rough surfaces and around corners making it the perfect product for harsh conditions. | Construction: | NBR/PVC tube with a PVC helix |
| Safety Factor: | 3:1 | Temperature: | -40°F to +140°F |
| Features: | Superior flexibility even at sub-zero temperatures Lightweight, with floating capabilities | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Color | Lbs./Ft. |
|---|---|---|---|---|---|---|---|
| SP-DUTY-1.5-100 | 1-1/2" | 1.82" | 50 | 29.8 | 3.0" | Green | 0.44 |
| SP-DUTY-2.0-100 | 2" | 2.43" | 50 | 29.8 | 5.0" | Green | 0.74 |
| SP-DUTY-BLUE-2.0-100 | 2" | 2.43" | 50 | 29.8 | 5.0" | Blue | 0.74 |
| SP-DUTY-YELLOW-2.0-100 | 2" | 2.43" | 50 | 29.8 | 5.0" | Yellow | 0.74 |
| SP-DUTY-3.0-100 | 3" | 3.55" | 43 | 29.8 | 7.0" | Green | 1.21 |
| SP-DUTY-BLUE-3.0-100 | 3" | 3.55" | 43 | 29.8 | 7.0" | Blue | 1.21 |
| SP-DUTY-YELLOW-3.0-100 | 3" | 3.55" | 43 | 29.8 | 7.0" | Yellow | 1.21 |
| SP-DUTY-4.0-100 | 4" | 4.62" | 38 | 29.8 | 11.0" | Green | 1.95 |
| SP-DUTY-YELLOW-4.0-100 | 4" | 4.62" | 38 | 29.8 | 11.0" | Yellow | 1.95 |
| SP-DUTY-BLUE-4.0-100 | 4" | 4.62" | 38 | 29.8 | 11.0" | Blue | 1.95 |
| SP-DUTY-6.0-100 | 6" | 6.81" | 23 | 29.8 | 20.0" | Green | 3.23 |
