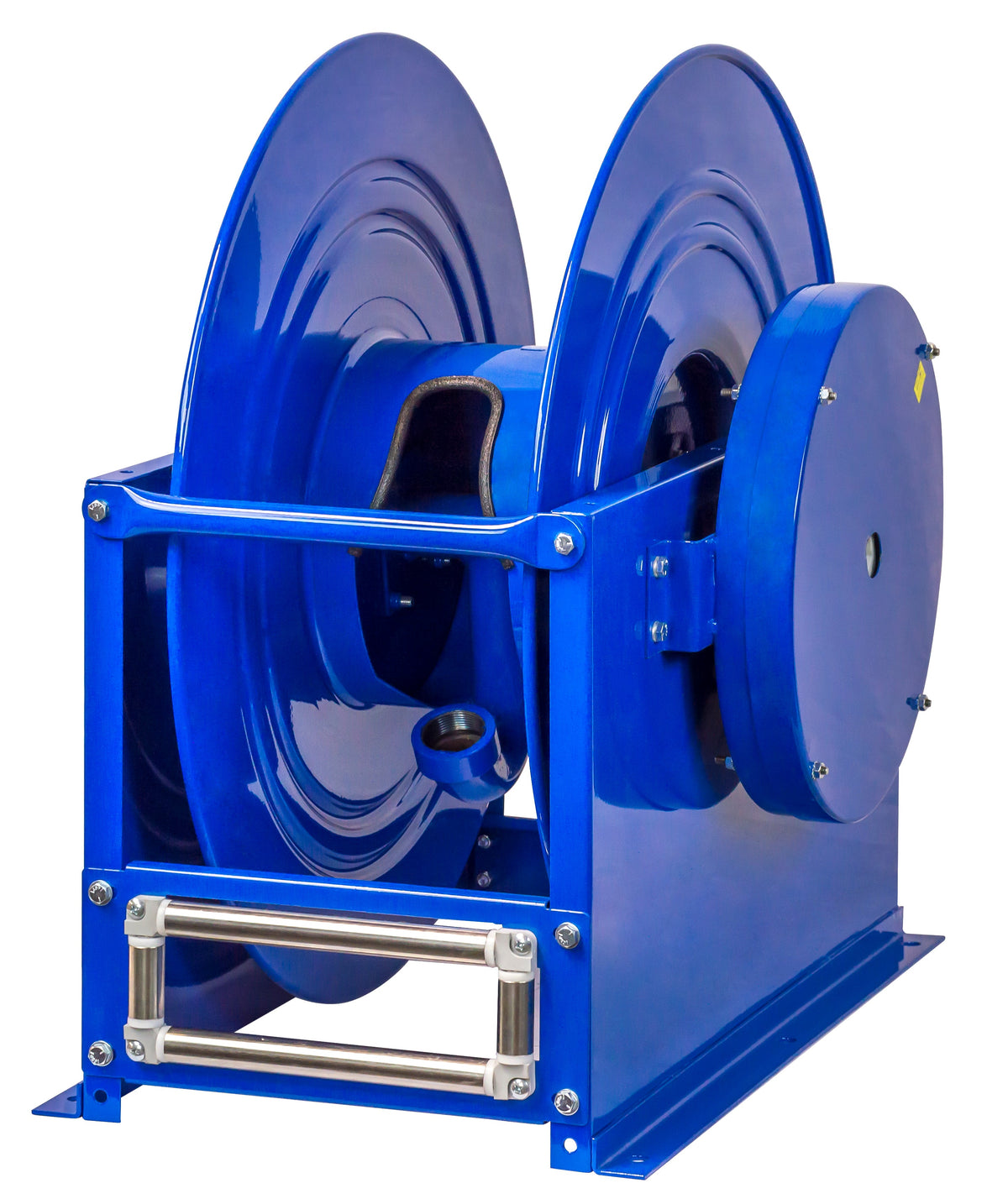

SLPL-4100 by Coxreels | SP Series | 300 PSI Spring Driven Hose Reel | 1/2" Hose ID, 1/2" FNPT Inlet | Steel | 100ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels SP Series Spring Driven Hose Reels
Steel box-frame spring driven hose reels for air, water, washdown, chemical fluid transfer and high-flow watering, rated to 2,500 PSI. Made in the U.S.A.
1
What is this product used for?
- 250–300 PSI models — Air, water, washdown, high-flow watering, chemical fluid transfer, high volume delivery, bulk liquid handling.
- 1,500–2,500 PSI models — Air, water, oil & lubrication, washdown.
2
What are the key specifications?
Construction
Steel, box-frame
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
150°F / 250°F depending on hose
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.56" mounting holes
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box-Style Design — Sturdy box-style, reinforced steel frame design provides maximum strenght and stability.
- Steel Rollers — Heavy duty 1" stainless steel pinch-proof rollers.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| Low Pressure — PVC hose included | ||||||
| SLP-550 | 3/4" | 50 ft | 300 | 7.5" | 20" | 19.625 × 20.5 × 22.875 |
| SLP-575 | 3/4" | 75 ft | 300 | 7.5" | 24" | 19.625 × 24.5 × 26.375 |
| SLP-625 | 1" | 25 ft | 300 | 7.5" | 20" | 19.625 × 20.5 × 22.875 |
| SLP-650 | 1" | 50 ft | 300 | 7.5" | 24" | 19.625 × 24.5 × 26.375 |
| SLP-675 | 1" | 75 ft | 300 | 7.5" | 28" | 21 × 28.5 × 30.375 |
| SLP-4100 | 1/2" | 100 ft | 300 | 7.5" | 20" | 18.5 × 20.5 × 22.875 |
| SLP-5100 | 3/4" | 100 ft | 300 | 7.5" | 24" | 19.625 × 24.5 × 26.375 |
| Low Pressure — hose not included | ||||||
| SLPL-550 | 3/4" | 50 ft | 300 | 7.5" | 20" | 19.625 × 20.5 × 22.875 |
| SLPL-575 | 3/4" | 75 ft | 300 | 7.5" | 24" | 19.625 × 24.5 × 26.375 |
| SLPL-625 | 1" | 25 ft | 300 | 7.5" | 20" | 19.625 × 20.5 × 22.875 |
| SLPL-650 | 1" | 50 ft | 300 | 7.5" | 24" | 19.625 × 24.5 × 26.375 |
| SLPL-675 | 1" | 75 ft | 300 | 7.5" | 28" | 21 × 28.5 × 30.375 |
| SLPL-725 | 1-1/4" | 25 ft | 250 | 7.5" | 24" | 17.5 × 28.5 × 26.375 |
| SLPL-750 | 1-1/4" | 50 ft | 250 | 7.5" | 28" | 18 × 28.5 × 30.375 |
| SLPL-825 | 1-1/2" | 25 ft | 250 | 7.5" | 24" | 17.5 × 24.5 × 26.375 |
| SLPL-835 | 1-1/2" | 35 ft | 250 | 7.5" | 28" | 18 × 28.5 × 30.375 |
| SLPL-850 | 1-1/2" | 50 ft | 250 | 9.5" | 28" | 20 × 28.5 × 30.375 |
| SLPL-4100 | 1/2" | 100 ft | 300 | 7.5" | 20" | 18.5 × 20.5 × 22.875 |
| SLPL-5100 | 3/4" | 100 ft | 300 | 7.5" | 24" | 19.625 × 24.5 × 26.375 |
| Medium Pressure — rubber hose included | ||||||
| SMP-550 | 3/4" | 50 ft | 1,500 | 7.5" | 20" | 19.625 × 24.5 × 26.375 |
| SMP-575 | 3/4" | 75 ft | 1,500 | 7.5" | 24" | 21 × 28.5 × 30.375 |
| SMP-4100 | 1/2" | 100 ft | 2,500 | 7.5" | 20" | 18.5 × 20.5 × 22.875 |
| SMP-5100 | 3/4" | 100 ft | 1,500 | 7.5" | 24" | 21 × 28.5 × 30.375 |
| Medium Pressure — hose not included | ||||||
| SMPL-550 | 3/4" | 50 ft | 1,500 | 7.5" | 20" | 19.625 × 24.5 × 26.375 |
| SMPL-575 | 3/4" | 75 ft | 1,500 | 7.5" | 24" | 21 × 28.5 × 30.375 |
| SMPL-625 | 1" | 25 ft | 2,000 | 7.5" | 20" | 19.625 × 24.5 × 26.375 |
| SMPL-650 | 1" | 50 ft | 2,000 | 7.5" | 24" | 21 × 28.5 × 30.375 |
| SMPL-675 | 1" | 75 ft | 2,000 | 7.5" | 28" | 20 × 28.5 × 30.375 |
| SMPL-4100 | 1/2" | 100 ft | 2,500 | 7.5" | 20" | 18.5 × 20.5 × 22.875 |
| SMPL-5100 | 3/4" | 100 ft | 1,500 | 7.5" | 24" | 21 × 28.5 × 30.375 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Inlet connections | ||
| 5154-1.5 | 18" inlet hose | SLP/SLPL-4100 |
| 5155-1.5 | 18" inlet hose | SLP-550/575/5100; SLPL-550/575/5100 |
| 5256-1.5 | 18" inlet hose | Max PSI 2,500 |
| 5290-1.5 | 18" inlet hose | Max PSI 1,500 |
| 222 | 90° inlet elbow (brass) | SLP/SLPL-4100 |
| 385 | 90° inlet elbow (brass) | SLP-550/575/5100; SLPL-550/575/5100 |
| 1671 | 90° inlet elbow (steel) | Max PSI 2,500 |
| 15014 | 90° inlet elbow (steel) | Max PSI 1,500 |
Hose end — by hose i.d.:
| Part # | Accessory | Fits |
|---|---|---|
| Hose end — fit hose I.D. 1/2", 3/4" | ||
| 398-1 | Spiral hose/cord guard | |
| Upgrades and service parts | ||
| HSRK-050 | Hose Strain Relief Kit | Hose I.D. 1/2", plus SMPL-550 |
| HSRK-075 | Hose Strain Relief Kit | Hose I.D. 3/4" except SMPL-550 |
| HSRK-100 | Hose Strain Relief Kit | Hose I.D. 1" |
| HSRK-125 | Hose Strain Relief Kit | Hose I.D. 1-1/4" |
| HSRK-150 | Hose Strain Relief Kit | Hose I.D. 1-1/2" |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -BP | Blue PVC Hose |
| -YP | Yellow PVC Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX / -GXXX | Gray |
| -KXX / -KXXX | Gloss Black |
| -RXX / -RXXX | Red |
| -CXX / -CXXX | Wrinkle Black (25 reel minimum) |
| -WXX / -WXXX | Gloss White (25 reel minimum) |
| -NXX / -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BRXX | Stainless steel plumbing & SS 90° ball bearing swivel with Aflas (304SS) |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BTXX | Stainless steel plumbing & SS 90° ball bearing swivel with food grade (304SS) |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BJXX / -BKXX | Standard plumbing & 90˚ stainless steel swivel: Aflas / Viton |
| -BQXX | Stainless steel plumbing, less swivel |
| Reel set-up | |
| -BXXX | Standard mount: swivel left, riser left bottom, Spring right, Roller bottom |
| -BXFC | ReversePlumbing, Drum & Spring. left bottom riser. Roller: bottom rear |
| -BXCX | Swivel right, top riser, left Spring, Roller: top-rear |
| -BXCC | Reverse plumbing, Drum & Spring. left top riser, Rollers: top |
| -BXIX | Swivel rigth, right top riser, Spring left. Rollers: ceiling-front |
| -BXIC | Reverse plumbing, Drum & Spring. left top riser. Rollers: ceiling rear |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
SP Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
