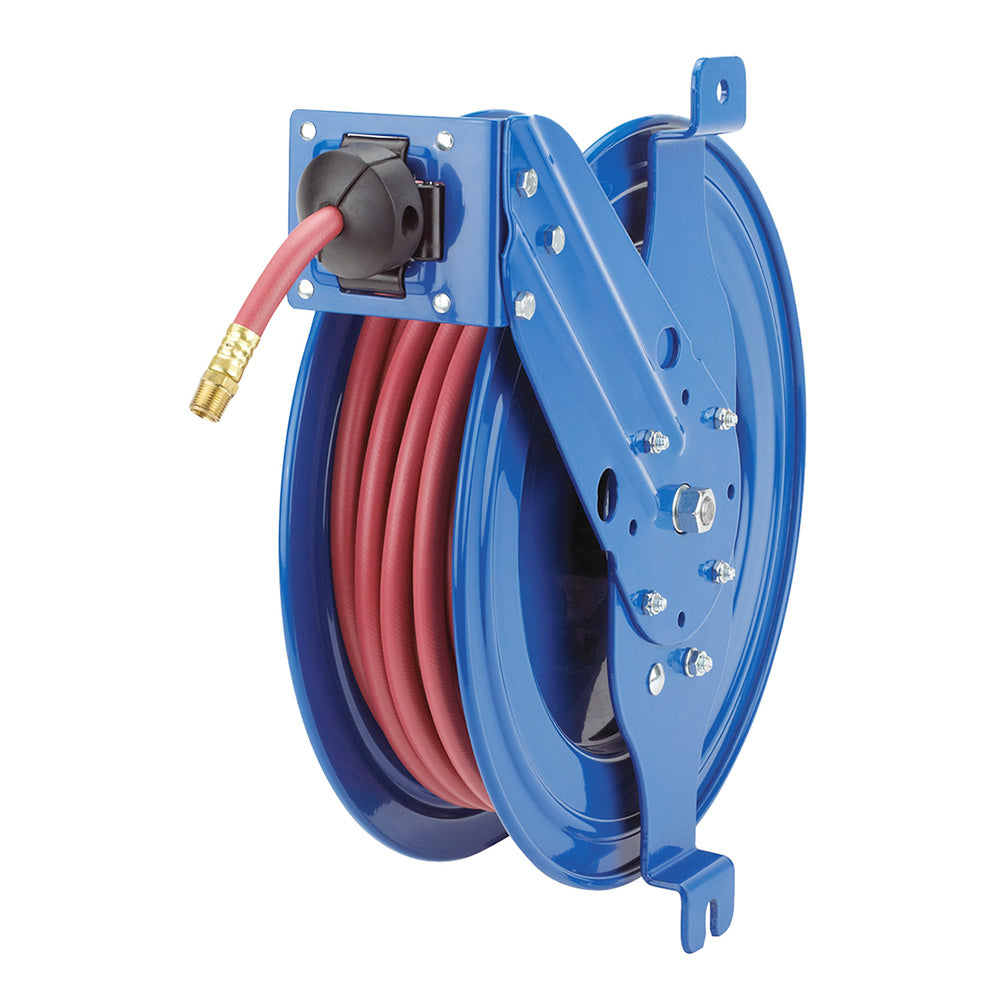

SG17L-H325 by Coxreels | SG Series | 4,000 PSI Side Mount Spring Driven Hose Reel with Guide Arm for Air & Water | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 25ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring driven hose reel
Coxreels SG Series Spring Driven Hose Reels
Steel side-mount spring driven hose reels for air, water, washdown, chemical fluid transfer and oil and lubrication, rated to 5,000 PSI. Made in the U.S.A.
1
What is this product used for?
- 300 PSI models — Air, water, washdown, chemical fluid transfer.
- 2,500–3,000 PSI models — Air, water, oil & lubrication, washdown.
- 4,000–5,000 PSI models — Air, water, oil & lubrication, grease & hydraulics, pressure washing.
2
What are the key specifications?
Construction
Steel, side-mount
Swivel
Nitrile seals
Max Temperature
150°F / 250°F depending on hose
Bearings
1" Permanently Lubricated Precision Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Ceiling, Vehicle Mounting
3
What are the main product features?
- Swivel — 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Side Mount Design — Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
- Multi-Position Guide Arm — Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Inlet | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|---|
| Low Pressure — PVC hose included | |||||||
| SG13-L125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6.25 × 15.5 × 13.5 |
| SG13-L135 | 1/4" | 35 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6.25 × 15.5 × 13.5 |
| SG13-L325 | 3/8" | 25 ft | 300 | 3/8" FNPT | 2.88" | 13" | 6.75 × 15.5 × 13.5 |
| SG17-L350 | 3/8" | 50 ft | 300 | 3/8" FNPT | 3.75" | 17" | 6.75 × 19.5 × 17 |
| SG17-L430 | 1/2" | 30 ft | 300 | 1/2" FNPT | 3.75" | 17" | 6.75 × 19.5 × 17 |
| SG19-L450 | 1/2" | 50 ft | 300 | 1/2" FNPT | 4.5" | 19.5" | 8.5 × 22 × 19.5 |
| Low Pressure — hose not included | |||||||
| SG13L-L125 | 1/4" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6.25 × 15.5 × 13.5 |
| SG13L-L325 | 3/8" | 25 ft | 300 | 1/4" FNPT | 2.88" | 13" | 6.75 × 15.5 × 13.5 |
| SG17L-L350 | 3/8" | 50 ft | 300 | 3/8" FNPT | 3.75" | 17" | 6.75 × 19.5 × 17 |
| SG17L-L430 | 1/2" | 30 ft | 300 | 1/2" FNPT | 3.75" | 17" | 6.75 × 19.5 × 17 |
| SG19L-L450 | 1/2" | 50 ft | 300 | 1/2" FNPT | 4.5" | 19.5" | 8.5 × 22 × 19.5 |
| Medium Pressure — rubber hose included | |||||||
| SG17-M325 | 3/8" | 25 ft | 3,000 | 3/8" FNPT | 3.75" | 17" | 6.75 × 19.5 × 17 |
| SG17-M425 | 1/2" | 25 ft | 2,500 | 1/2" FNPT | 4.5" | 19.5" | 7.25 × 19.5 × 17 |
| SG19-M350 | 3/8" | 50 ft | 3,000 | 3/8" FNPT | 4.5" | 19.5" | 8.5 × 22 × 19.5 |
| SG19-M450 | 1/2" | 50 ft | 2,500 | 1/2" FNPT | 4.5" | 19.5" | 9.375 × 22 × 19.5 |
| High Pressure — rubber hose included | |||||||
| SG17-H125 | 1/4" | 25 ft | 5,000 | 1/4" FNPT | 4.5" | 19.5" | 7.25 × 19.5 × 17 |
| SG17-H325 | 3/8" | 25 ft | 4,000 | 3/8" FNPT | 4.5" | 19.5" | 7.25 × 19.5 × 17 |
| SG19-H150 | 1/4" | 50 ft | 5,000 | 1/4" FNPT | 4.5" | 19.5" | 9 × 22 × 19.5 |
| SG19-H350 | 3/8" | 50 ft | 4,000 | 3/8" FNPT | 4.5" | 19.5" | 9.5 × 22 × 19.5 |
| High Pressure — hose not included | |||||||
| SG17L-H125 | 1/4" | 25 ft | 5,000 | 1/4" FNPT | 3.75" | — | 6.625 × 18.25 × 17 |
| SG17L-H325 | 3/8" | 25 ft | 4,000 | 3/8" FNPT | 3.75" | — | 6.625 × 18.25 × 17 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Inlet connections | ||
| 5150-1.5 | 18" inlet hose | SG13/SG13L-L125; SG13-L135 |
| 5153-1.5 | 18" inlet hose | SG13/SG13L-L325; SG17/SG17L-L350 |
| 5154-1.5 | 18" inlet hose | SG17/SG17L-L430; SG19/SG19L-L450 |
| 5224-1.5 | 18" inlet hose | Max PSI 3,000 |
| 5256-1.5 | 18" inlet hose | Max PSI 2,500 |
| 5304-1.5 | 18" inlet hose | SG17-H125; SG19-H150 |
| 5336-1.5 | 18" inlet hose | SG17-H325; SG19-H350 |
| 208 | 90° inlet elbow (brass) | SG13/SG13L-L325; SG17/SG17L-L350 |
| 222 | 90° inlet elbow (brass) | SG17/SG17L-L430; SG19/SG19L-L450 |
| 6088 | 90° inlet elbow (brass) | SG13/SG13L-L125; SG13-L135 |
| 500 | 90° inlet elbow (steel) | Max PSI 3,000 |
| 616 | 90° inlet elbow (steel) | SG17-H125; SG19-H150 |
| 617 | 90° inlet elbow (steel) | SG17-H325; SG19-H350 |
| 1671 | 90° inlet elbow (steel) | Max PSI 2,500 |
| Hose end | ||
| 131 | Hose/cord stop | Hose I.D. 1/4" except SG17L-H125 |
| 131-3 | Hose/cord stop | Hose I.D. 3/8" except SG17L-H325 |
| 131-4 | Hose/cord stop | Hose I.D. 1/2" |
| 10759-1 | Quick disconnect | SG13/SG13L-L125; SG13-L135 |
| 10759-2 | Quick disconnect | SG13/SG13L-L325; SG17/SG17L-L350 |
| 237-1 | Spiral hose/cord guard | Hose I.D. 1/4", 3/8" except SG17L-H125/H325 |
| 398-1 | Spiral hose/cord guard | Hose I.D. 1/2" |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -BP | Blue PVC Hose |
| -YP | Yellow PVC Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BYX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXK / -BXL | Air Tool Kit |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
