SG150X100 Tigerflex® SOLARGUARD™ by Kuriyama | SG™ Series | Liquid Suction Hose with High UV Resistance | PVC | 1-1/2" ID | 1.78" OD | 100ft Length
Minimum Order Quantity: 5 Units
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.

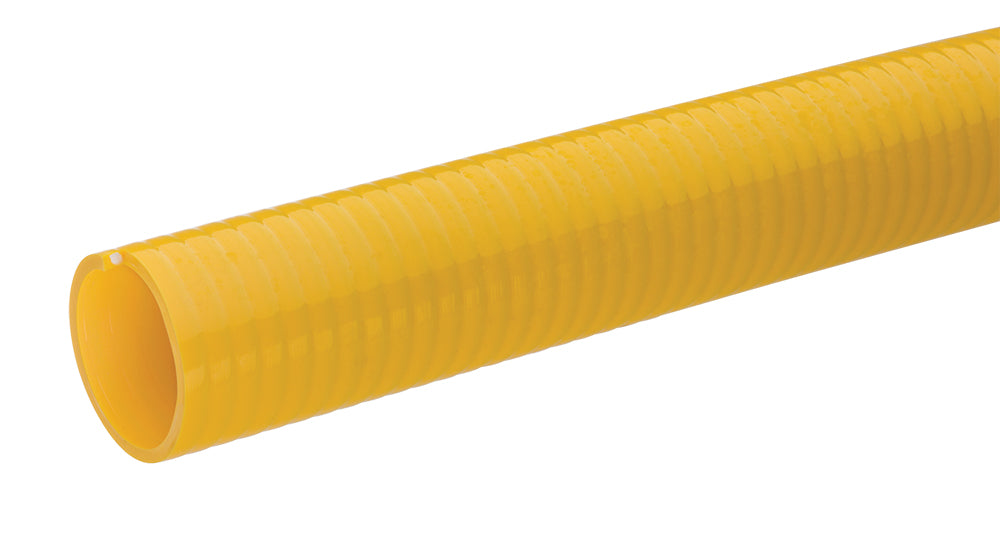

UV-Resistant PVC Suction Hose
Kuriyama Tigerflex™ SG Series
Safety-yellow PVC suction hose with advanced UV protection for agricultural liquid fertilizer, irrigation, dewatering, trash-pump and standard-duty water-suction applications.
UV Protection
Solarguard material is formulated to resist cracking from UV exposure
Safety Yellow
High-visibility color helps reduce trip and run-over risks
PVC Helix
Rigid reinforcement supports standard-duty suction service
Smooth Cover
Provides a smooth surface for banding
1
What is this product used for?
- Agricultural liquid fertilizer
- Air seeder lines
- Irrigation lines
- Rental and construction dewatering pumps
- Trash pumps
- Standard-duty water suction
2
What are the key specifications?
Tube
Flexible PVC
Reinforcement
Rigid PVC helix
Cover
Smooth outer cover
Temperature Range
-4°F (-20°C) to +150°F (+65°C)
Compliance
Phthalate free
Country of Origin
Made in the USA
3
What are the main product features?
- Advanced UV Protection — The hose material is specially formulated to resist cracking caused by exposure to damaging UV light.
- High Tensile-Strength Retention — Testing showed that the Solarguard material retained 97% of its original tensile strength after prolonged UV exposure, compared with 55% retention for similar PVC hoses.
- Safety-Yellow Color — Provides high visibility on site and helps reduce the risk of tripping over or driving over the hose.
- Smooth Outer Cover — Provides a smooth surface for banding.
- Made in the USA — Manufactured in the United States.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| SG150X100 | 1-1/2" | 38.4 | 1.78" | 45.2 | 65 PSI | 45 PSI | 28 in Hg | 24 in Hg | 5" | 100 | 0.38 |
| SG200X100 | 2" | 51.1 | 2.40" | 59.0 | 60 PSI | 40 PSI | 28 in Hg | 24 in Hg | 6" | 100 | 0.56 |
| SG300X100 | 3" | 76.7 | 3.41" | 86.5 | 55 PSI | 35 PSI | 26 in Hg | 22 in Hg | 9" | 100 | 1.00 |
| SG400X100 | 4" | 102.4 | 4.44" | 112.8 | 50 PSI | 35 PSI | 26 in Hg | 22 in Hg | 15" | 100 | 1.70 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
UV-performance information is based on independent third-party test reports believed to be complete and accurate. No warranty is expressed or implied because application conditions such as temperature, stress, strain and chemical exposure vary. The actual service temperature range and product service life may also vary depending on the application, operating conditions and material being conveyed.
How is this product sold?
Available in 100-foot lengths.
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
65
Tubing Construction:
