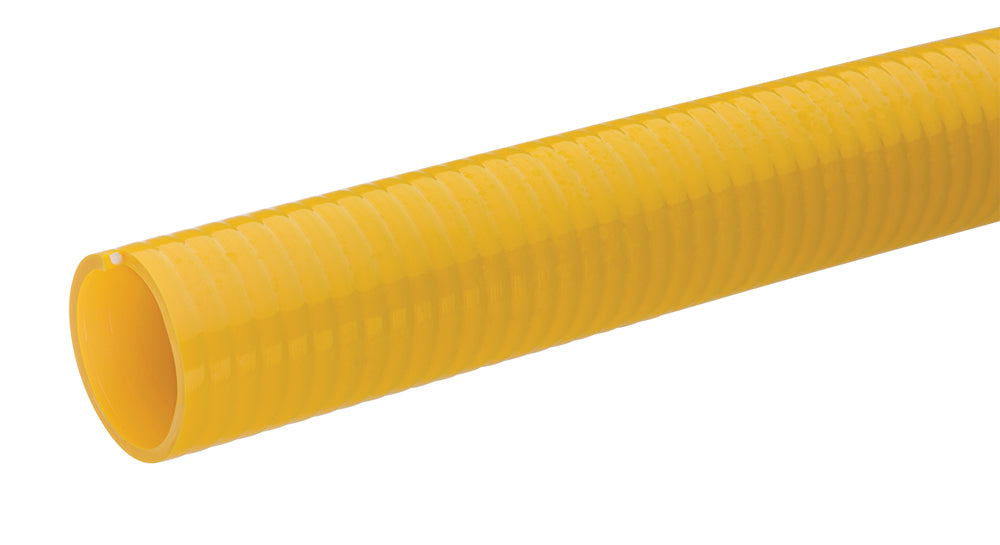

SG400X100 Tigerflex® SOLARGUARD™ by Kuriyama | SG™ Series | Liquid Suction Hose with High UV Resistance | PVC | 4" ID | 4.44" OD | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Kuriyama Tigerflex™ SG Series
Safety-yellow PVC suction hose with advanced UV protection for agricultural liquid fertilizer, irrigation, dewatering, trash-pump and standard-duty water-suction applications.
UV Protection
Solarguard material is formulated to resist cracking from UV exposure
Safety Yellow
High-visibility color helps reduce trip and run-over risks
PVC Helix
Rigid reinforcement supports standard-duty suction service
Smooth Cover
Provides a smooth surface for banding
1
What is this product used for?
- Agricultural liquid fertilizer
- Air seeder lines
- Irrigation lines
- Rental and construction dewatering pumps
- Trash pumps
- Standard-duty water suction
2
What are the key specifications?
Flexible PVC
Rigid PVC helix
Smooth outer cover
-4°F (-20°C) to +150°F (+65°C)
Phthalate free
Made in the USA
3
What are the main product features?
- Advanced UV Protection — The hose material is specially formulated to resist cracking caused by exposure to damaging UV light.
- High Tensile-Strength Retention — Testing showed that the Solarguard material retained 97% of its original tensile strength after prolonged UV exposure, compared with 55% retention for similar PVC hoses.
- Safety-Yellow Color — Provides high visibility on site and helps reduce the risk of tripping over or driving over the hose.
- Smooth Outer Cover — Provides a smooth surface for banding.
- Made in the USA — Manufactured in the United States.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| SG150X100 | 1-1/2" | 38.4 | 1.78" | 45.2 | 65 PSI | 45 PSI | 28 in Hg | 24 in Hg | 5" | 100 | 0.38 |
| SG200X100 | 2" | 51.1 | 2.40" | 59.0 | 60 PSI | 40 PSI | 28 in Hg | 24 in Hg | 6" | 100 | 0.56 |
| SG300X100 | 3" | 76.7 | 3.41" | 86.5 | 55 PSI | 35 PSI | 26 in Hg | 22 in Hg | 9" | 100 | 1.00 |
| SG400X100 | 4" | 102.4 | 4.44" | 112.8 | 50 PSI | 35 PSI | 26 in Hg | 22 in Hg | 15" | 100 | 1.70 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
How is this product sold?
Available in 100-foot lengths.
